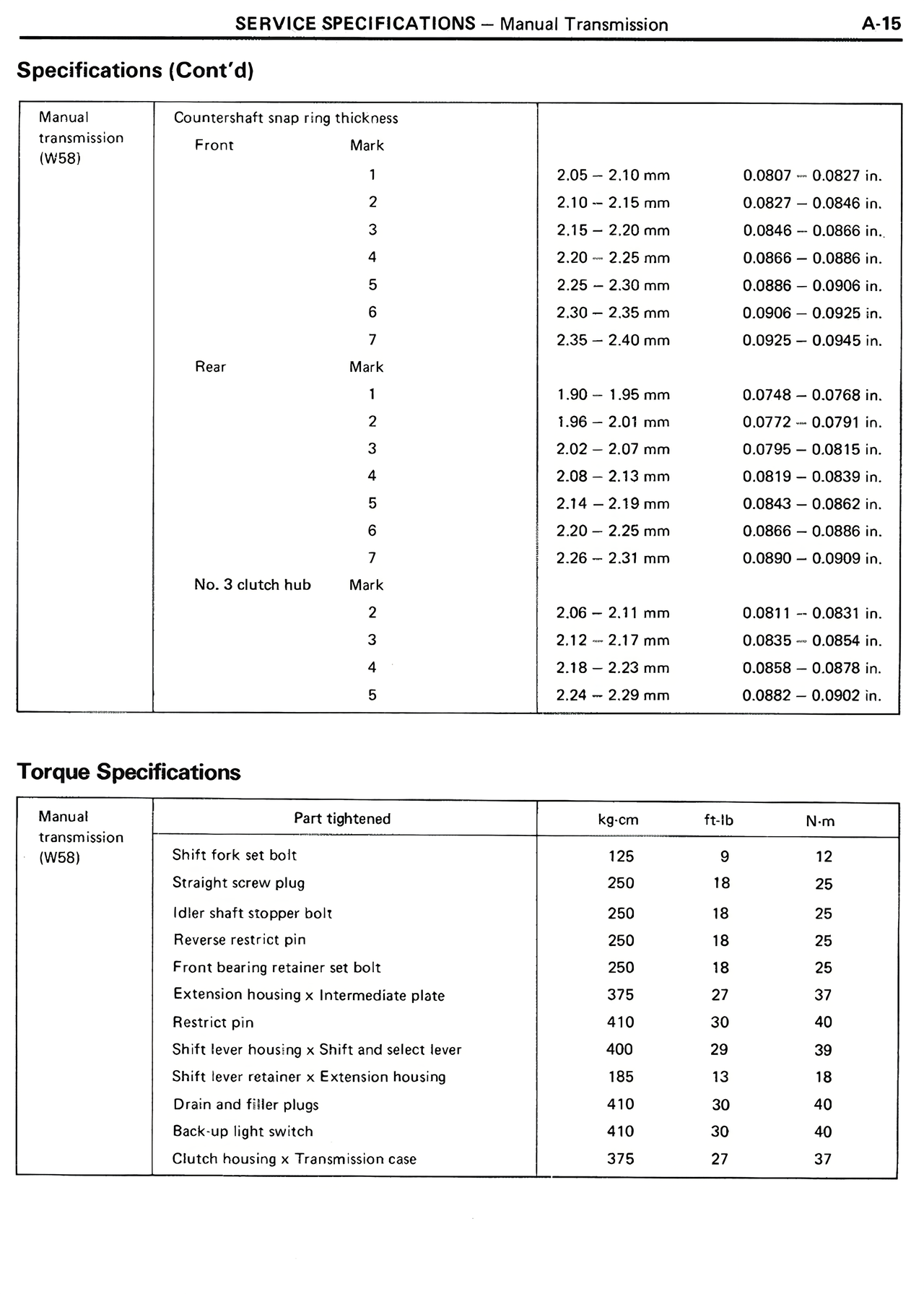

Specifications (Cont'd) Manual transmission (W58) Counterdraft snap ring thickness Front Mark 1 2.05 - 2.10 mm 0.0807 - 0.0827 in. 2 2.10 - 2.15 mm 0.0827 - 0.0846 in. 3 2.15 - 2.20 mm 0.0846 - 0.0866 in. 4 2.20 - 2.25 mm 0.0866 - 0.0886 in. 5 2.25 - 2.30 mm 0.0886 - 0.0906 in. 6 2.30 - 2.35 mm 0.0906 - 0.0925 in. 7 2.35 - 2.40 mm 0.0925 - 0.0945 in. Rear Mark 1 1.90 - 1.95 mm 0.0748 - 0.0768 in. 2 1.96 - 2.01 mm 0.0772 - 0.0791 in. 3 2.02 - 2.07 mm 0.0795 - 0.0815 in. 4 2.08 - 2.13 mm 0.0819 - 0.0839 in. 5 2.14 - 2.19 mm 0.0843 - 0.0862 in. 6 2.20 - 2.25 mm 0.0866 - 0.0886 in. 7 2.26 - 2.31 mm 0.0890 - 0.0909 in. No. 3 clutch hub Mark 2 2.06 - 2.11 mm 0.0811 - 0.0831 in. 3 2.12 - 2.17 mm 0.0835 - 0.0854 in. 4 2.18 - 2.23 mm 0.0858 - 0.0878 in. 5 2.24 - 2.29 mm 0.0882 - 0.0902 in. Torque Specifications Manual transmission Part tightened kg·cm ft·lb N·m (W58) Shift fork set bolt 125 9 12 Straight screw plug 250 18 25 Idler shaft stopper bolt 250 18 25 Reverse restrict pin 250 18 25 Front bearing retainer set bolt 250 18 25 Extension housing x Intermediate plate 375 27 37 Restrict pin 410 30 40 Shift lever housing x Shift and select lever 400 29 39 Shift lever retainer x Extension housing 185 13 18 Drain and filler plugs 410 30 40 Back-up light switch 410 30 40 Clutch housing x Transmission case 375 27 37
