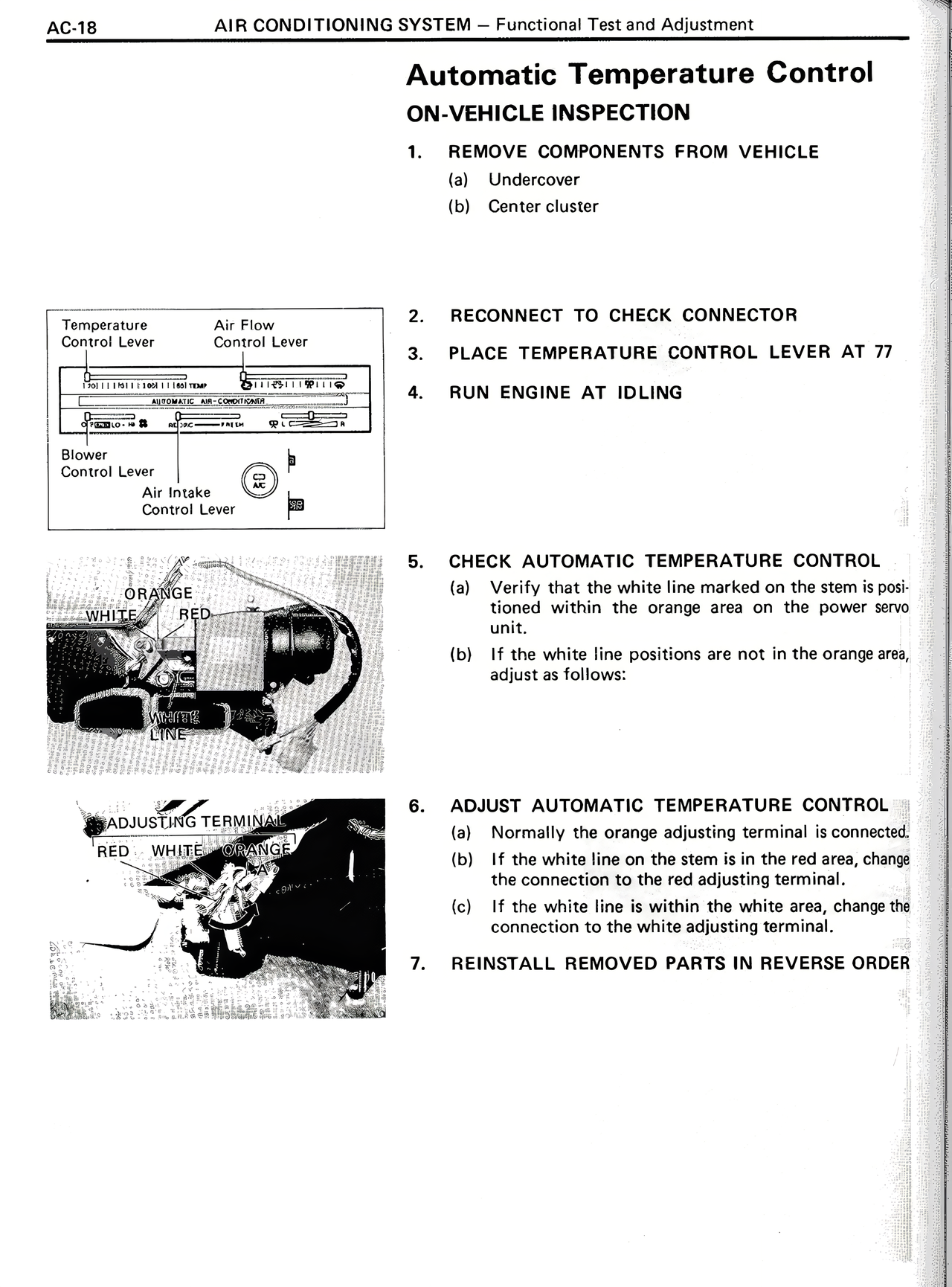

Automatic Temperature Control ON-VEHICLE INSPECTION 1. REMOVE COMPONENTS FROM VEHICLE (a) Undercover (b) Center cluster Temperature Control Lever Air Flow Control Lever Blower Control Lever Air Intake Control Lever 2. RECONNECT TO CHECK CONNECTOR 3. PLACE TEMPERATURE CONTROL LEVER AT 77 4. RUN ENGINE AT IDLING 5. CHECK AUTOMATIC TEMPERATURE CONTROL (a) Verify that the white line marked on the stem is positioned within the orange area on the power servo unit. (b) If the white line positions are not in the orange area, adjust as follows: ORANGE RED WHITE LINE 6. ADJUST AUTOMATIC TEMPERATURE CONTROL (a) Normally the orange adjusting terminal is connected. (b) If the white line on the stem is in the red area, change the connection to the red adjusting terminal. (c) If the white line is within the white area, change the connection to the white adjusting terminal. ADJUSTING TERMINAL RED WHITE ORANGE 7. REINSTALL REMOVED PARTS IN REVERSE ORDER
