Air Conditioning System page 22

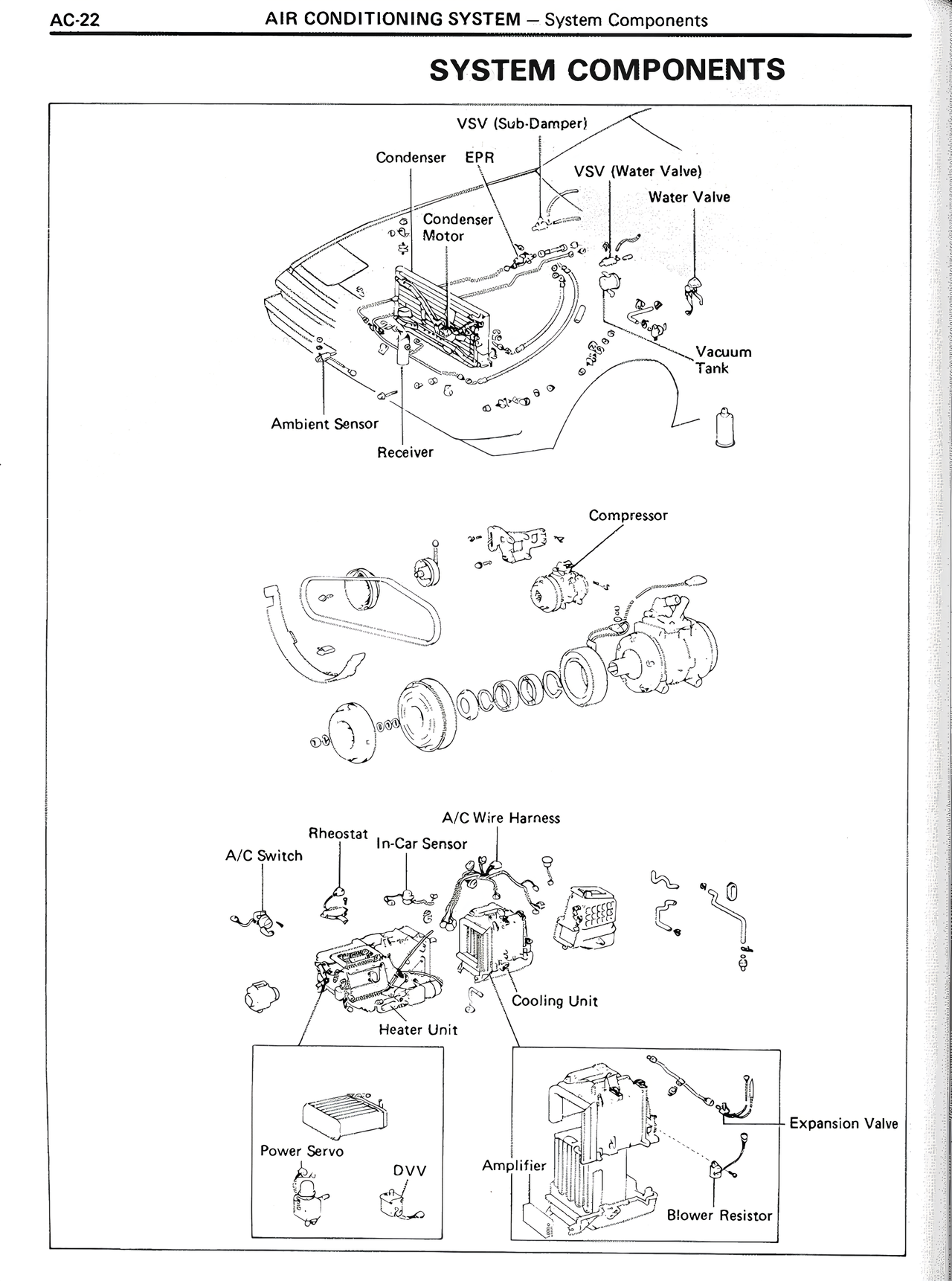

SYSTEM COMPONENTS VSV (Sub-Damper) Condenser EPH VSV (Water Valve) Water Valve Condenser Motor Vacuum Tank Ambient Sensor Receiver Compressor A/C Wire Harness Rheostat In-Car Sensor A/C Switch Heater Unit Cooling Unit Power Servo DVV Amplifier Expansion Valve Blower Resistor
