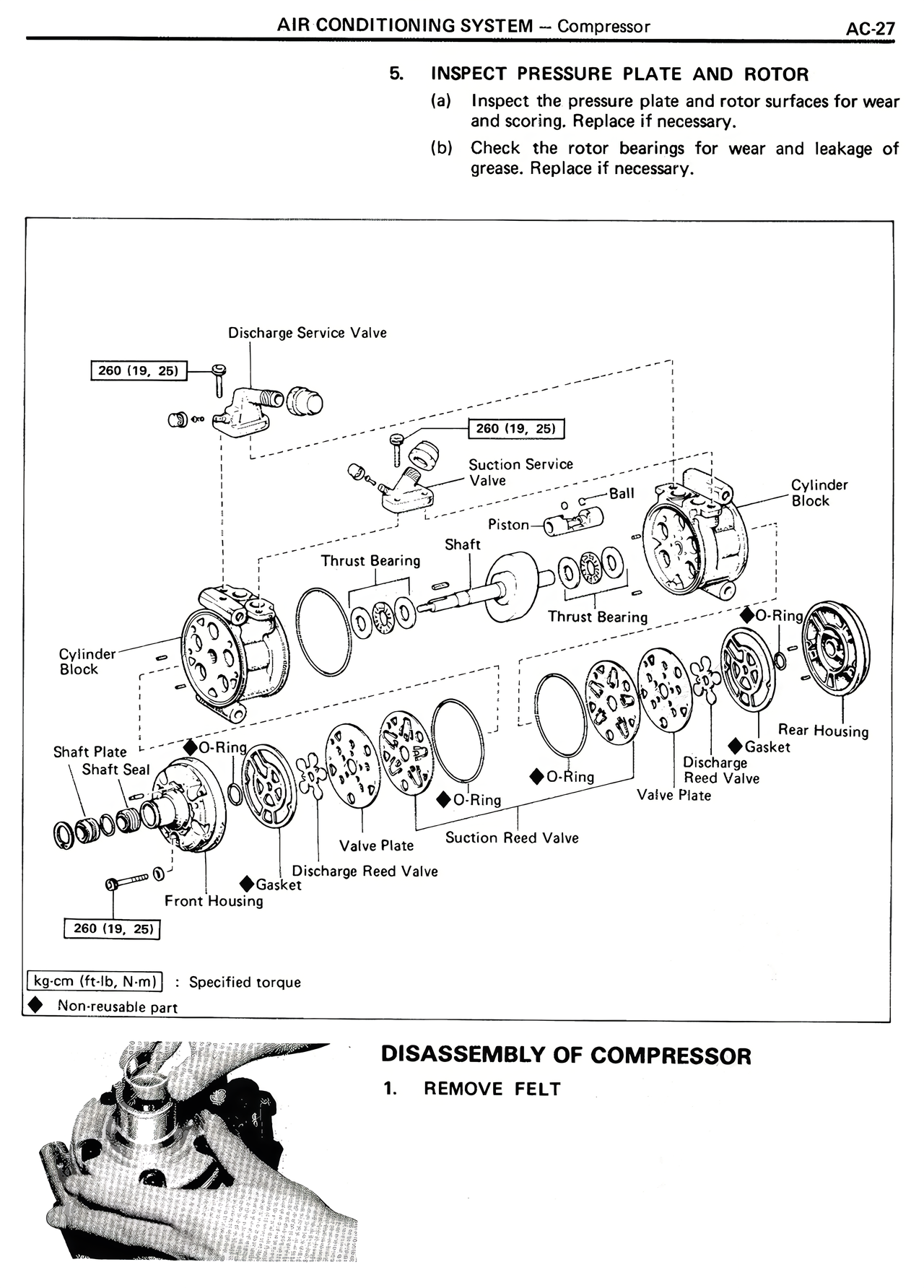

5. INSPECT PRESSURE PLATE AND ROTOR (a) Inspect the pressure plate and rotor surfaces for wear and scoring. Replace if necessary. (b) Check the rotor bearings for wear and leakage of grease. Replace if necessary. Discharge Service Valve 260 (19, 25) Suction Service Valve 260 (19, 25) Ball Cylinder Lock Piston Shaft Thrust Bearing Thrust Bearing O-Ring Cylinder Rear Housing Shaft Plate O-Ring Gasket Shaft Seal Reed Valve Valve Plate Discharge Reed Valve O-Ring O-Ring Valve Plate Gasket Suction Reed Valve Discharge Reed Valve Gasket Front Housing 260 (19, 25) kg-cm (ft-lb, N-m)] : Specified torque ◆ Non-reusable part DISASSEMBLY OF COMPRESSOR 1. REMOVE FELT
