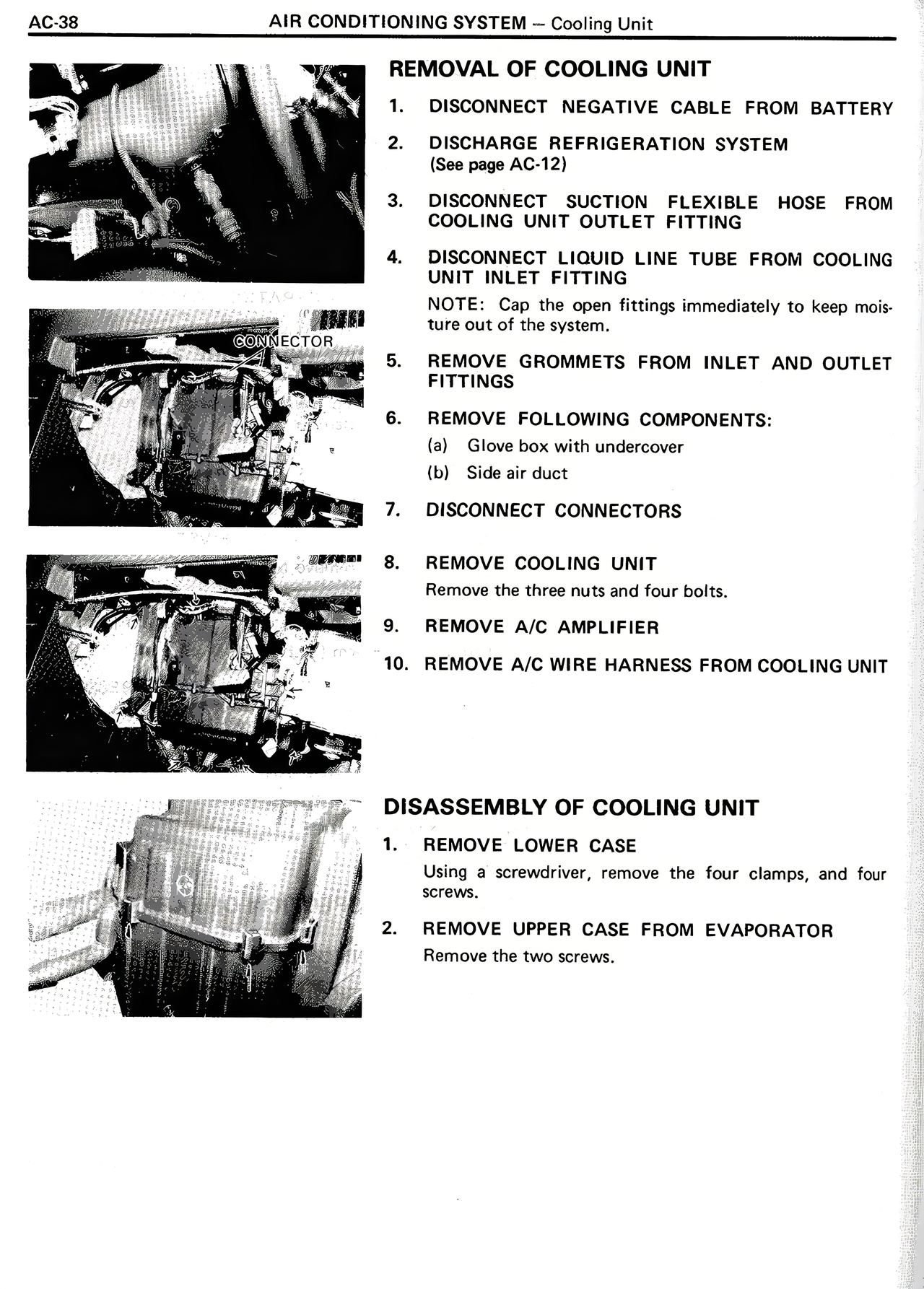

REMOVAL OF COOLING UNIT 1. DISCONNECT NEGATIVE CABLE FROM BATTERY 2. DISCHARGE REFRIGERATION SYSTEM (See page AC-12) 3. DISCONNECT SUCTION FLEXIBLE HOSE FROM COOLING UNIT OUTLET FITTING 4. DISCONNECT LIQUID LINE TUBE FROM COOLING UNIT INLET FITTING NOTE: Cap the open fittings immediately to keep moisture out of the system. 5. REMOVE GROMMETS FROM INLET AND OUTLET FITTINGS 6. REMOVE FOLLOWING COMPONENTS: (a) Glove box with undercover (b) Side air duct 7. DISCONNECT CONNECTORS 8. REMOVE COOLING UNIT Remove the three nuts and four bolts. 9. REMOVE A/C AMPLIFIER 10. REMOVE A/C WIRE HARNESS FROM COOLING UNIT DISASSEMBLY OF COOLING UNIT 1. REMOVE LOWER CASE Using a screwdriver, remove the four clamps, and four screws. 2. REMOVE UPPER CASE FROM EVAPORATOR Remove the two screws.
