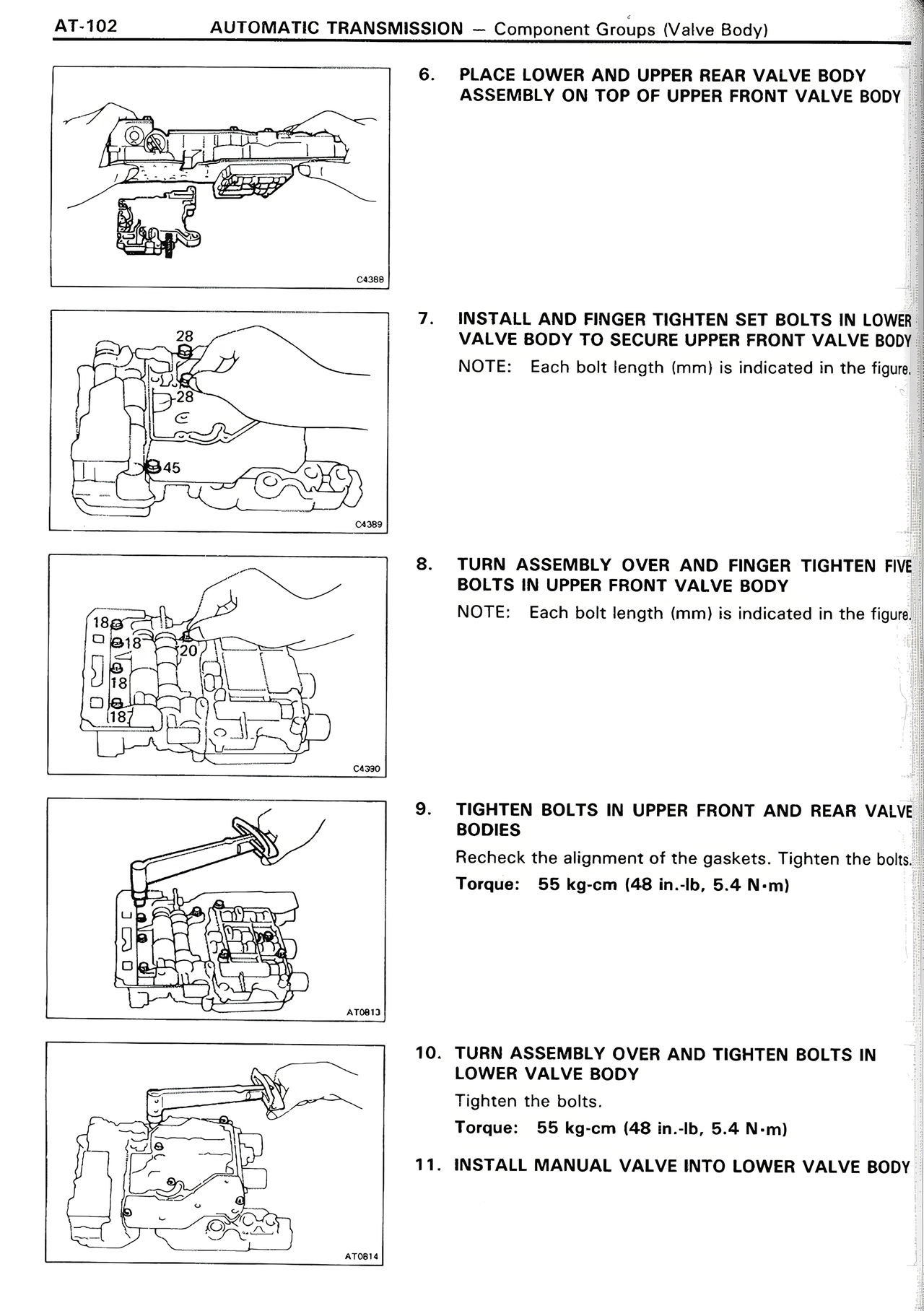

AT-102 AUTOMATIC TRANSMISSION — Component Groups (Valve Body) 6. PLACE LOWER AND UPPER REAR VALVE BODY ASSEMBLY ON TOP OF UPPER FRONT VALVE BODY 7. INSTALL AND FINGER TIGHTEN SET BOLTS IN LOWER VALVE BODY TO SECURE UPPER FRONT VALVE BODY NOTE: Each bolt length (mm) is indicated in the figure. 8. TURN ASSEMBLY OVER AND FINGER TIGHTEN FIVE BOLTS IN UPPER FRONT VALVE BODY NOTE: Each bolt length (mm) is indicated in the figure. 9. TIGHTEN BOLTS IN UPPER FRONT AND REAR VALVE BODIES Recheck the alignment of the gaskets. Tighten the bolts. Torque: 55 kg-cm (48 in.-lb, 5.4 N-m) 10. TURN ASSEMBLY OVER AND TIGHTEN BOLTS IN LOWER VALVE BODY Tighten the bolts. Torque: 55 kg-cm (48 in.-lb, 5.4 N-m) 11. INSTALL MANUAL VALVE INTO LOWER VALVE BODY
