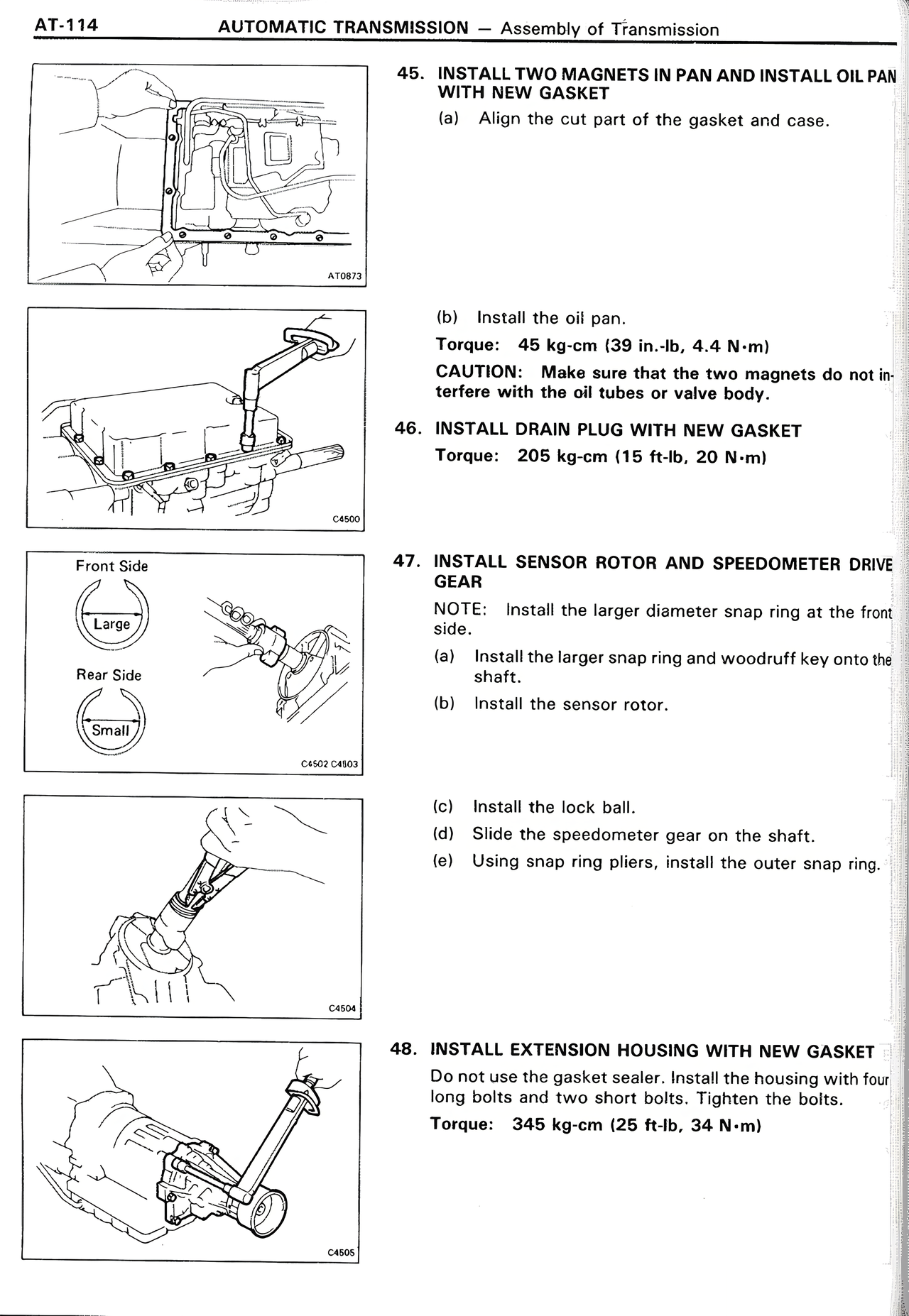

45. INSTALL TWO MAGNETS IN PAN AND INSTALL OIL PAN WITH NEW GASKET (a) Align the cut part of the gasket and case. (b) Install the oil pan. Torque: 45 kg-cm (39 in.-lb, 4.4 N-m) CAUTION: Make sure that the two magnets do not interfere with the oil tubes of the valve body. 46. INSTALL DRAIN PLUG WITH NEW GASKET Torque: 205 kg-cm (15 ft-lb, 20 N-m) 47. INSTALL SENSOR ROTOR AND SPEEDOMETER DRIVE GEAR NOTE: Install the larger diameter snap ring at the front side. (a) Install the larger snap ring and woodruff key onto the shaft. (b) Install the sensor rotor. (c) Install the lock ball. (d) Slide the speedometer gear on the shaft. (e) Using snap ring pliers, install the outer snap ring. 48. INSTALL EXTENSION HOUSING WITH NEW GASKET Do not use the gasket sealer. Install the housing with four long bolts and two short bolts. Tighten the bolts. Torque: 345 kg-cm (25 ft-lb, 34 N-m)
