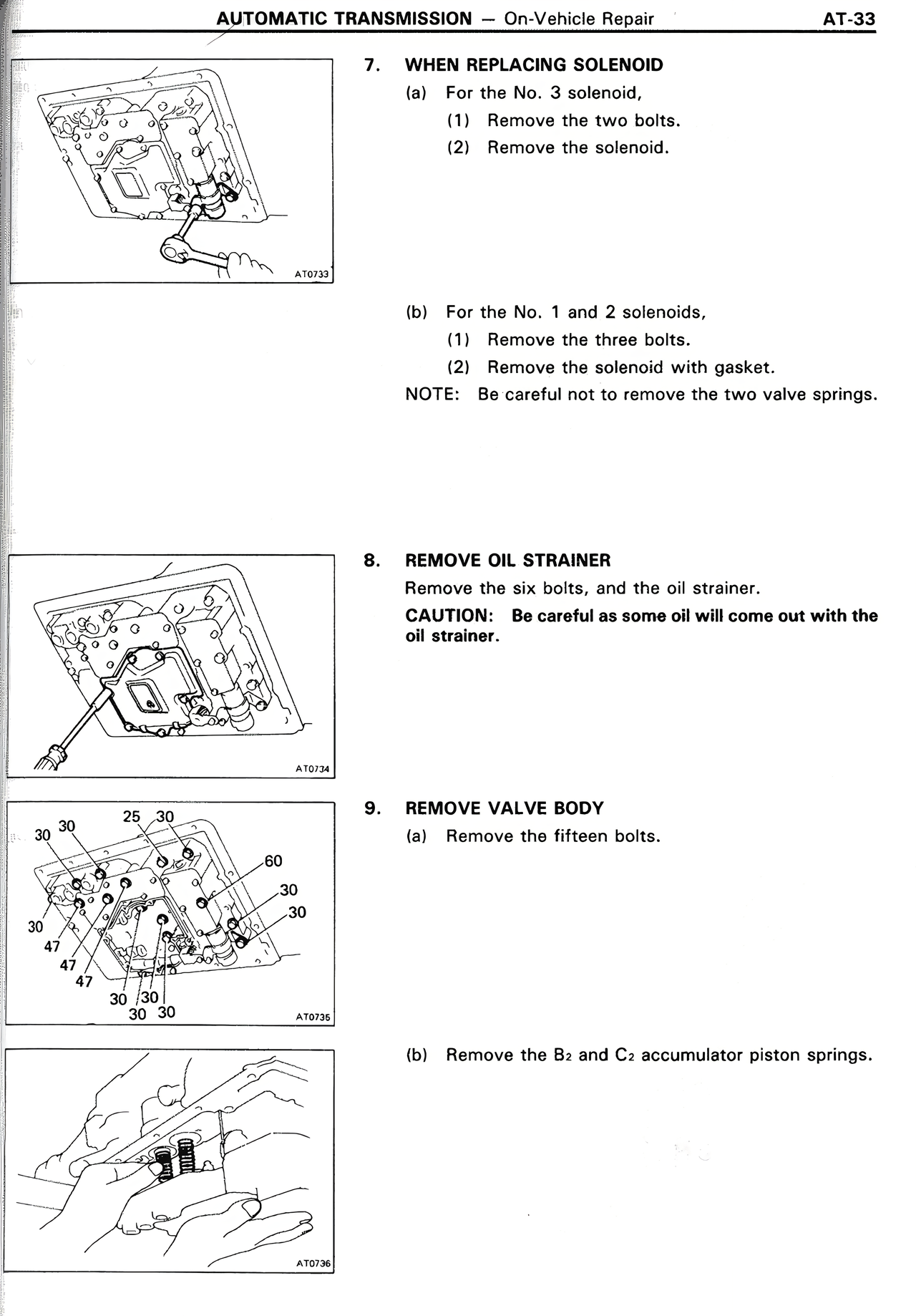

7. WHEN REPLACING SOLENOID
(a) For the No. 3 solenoid,
(1) Remove the two bolts.
(2) Remove the solenoid.
(b) For the No. 1 and 2 solenoids,
(1) Remove the three bolts.
(2) Remove the solenoid with gasket.
NOTE: Be careful not to remove the two valve springs.
8. REMOVE OIL STRAINER
Remove the six bolts, and the oil strainer.
CAUTION: Be careful as some oil will come out with the oil strainer.
9. REMOVE VALVE BODY
(a) Remove the fifteen bolts.
(b) Remove the B₂ and C₂ accumulator piston springs.
