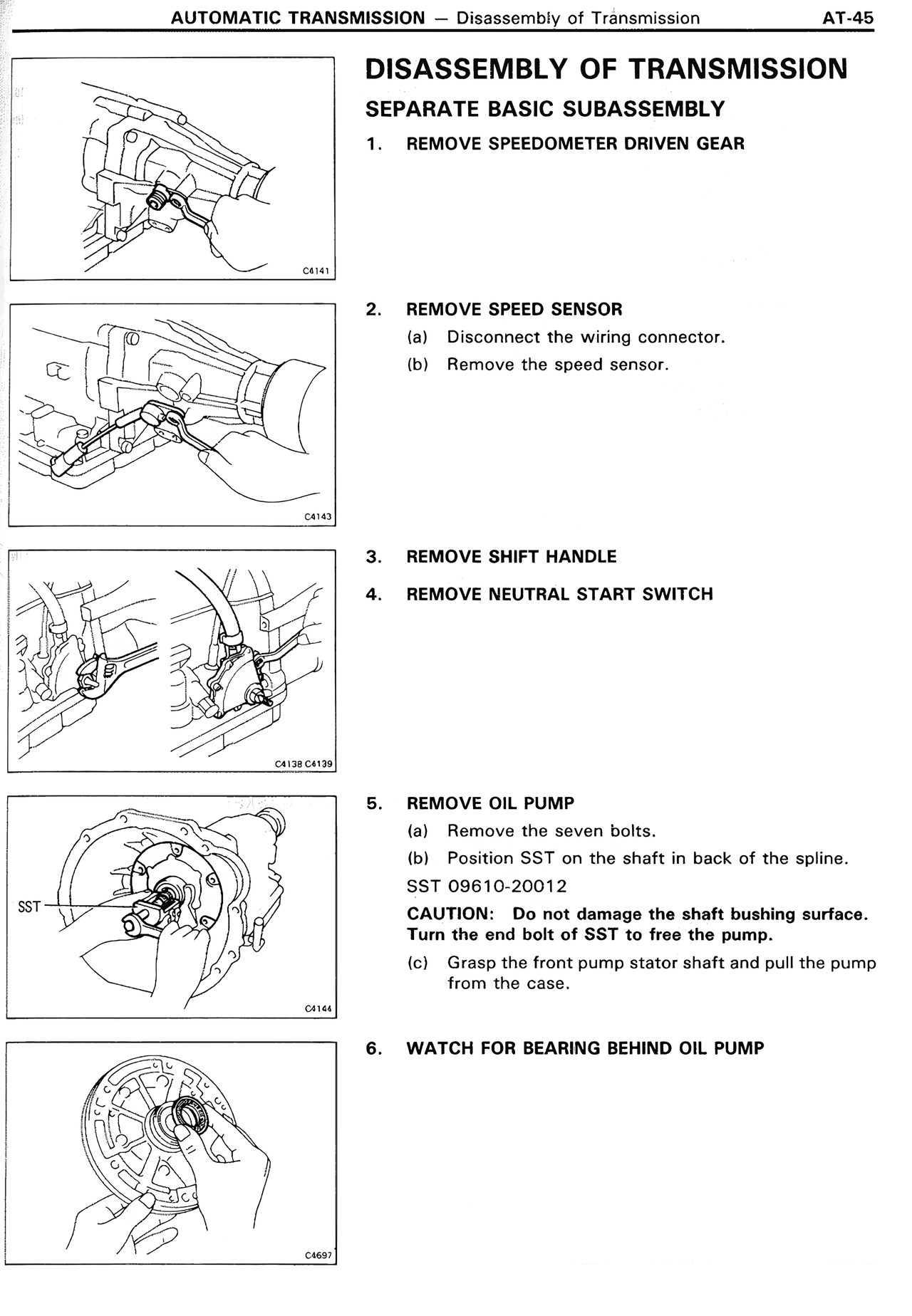

DISASSEMBLY OF TRANSMISSION SEPARATE BASIC SUBASSEMBLY 1. REMOVE SPEEDOMETER DRIVEN GEAR 2. REMOVE SPEED SENSOR (a) Disconnect the wiring connector. (b) Remove the speed sensor. 3. REMOVE SHIFT HANDLE 4. REMOVE NEUTRAL START SWITCH 5. REMOVE OIL PUMP (a) Remove the seven bolts. (b) Position SST on the shaft in back of the spline. SST 09610-20012 CAUTION: Do not damage the shaft bushing surface. Turn the end bolt of SST to free the pump. (c) Grasp the front pump stator shaft and pull the pump from the case. 6. WATCH FOR BEARING BEHIND OIL PUMP
