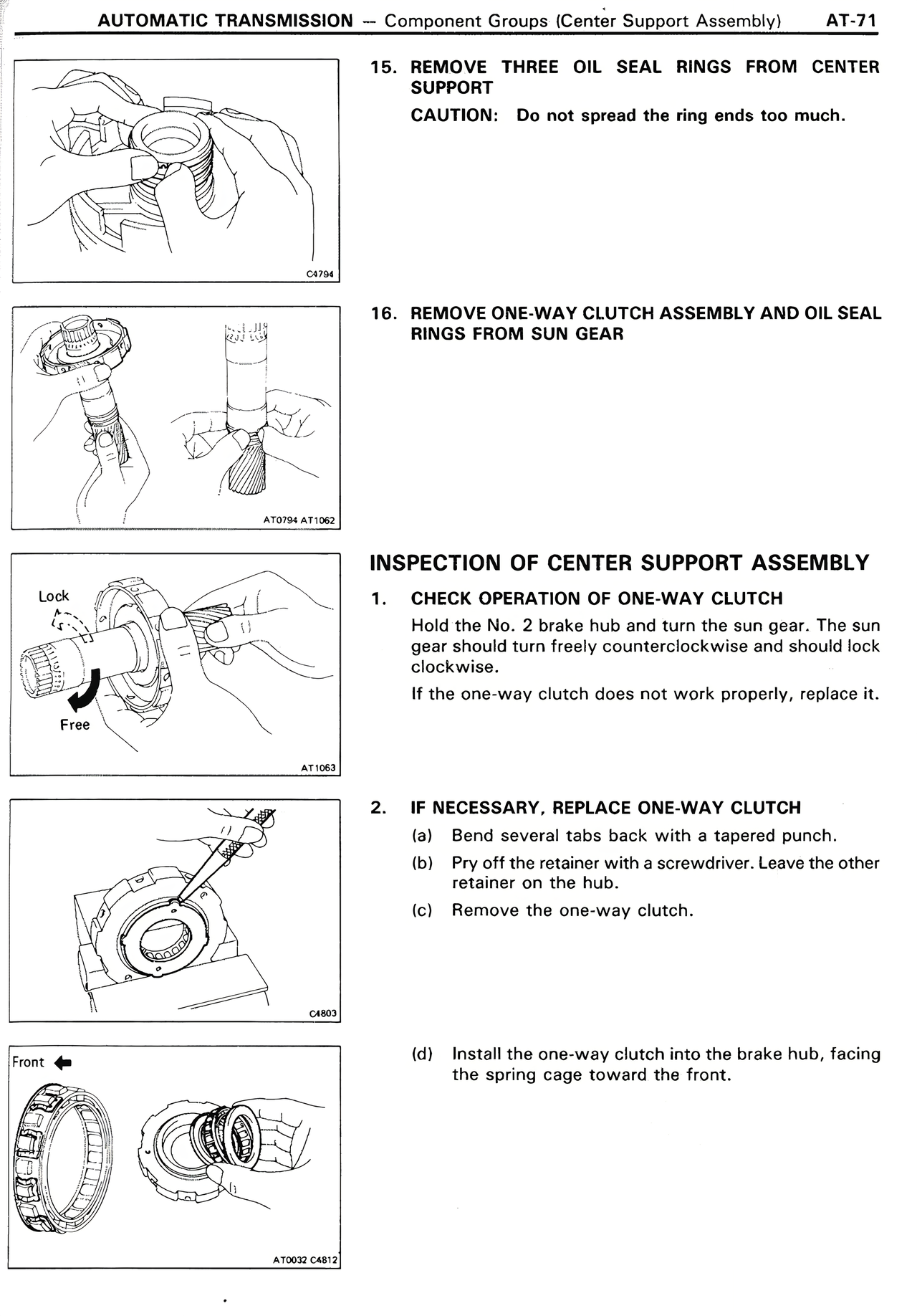

15. REMOVE THREE OIL SEAL RINGS FROM CENTER SUPPORT
CAUTION: Do not spread the ring ends too much.
16. REMOVE ONE-WAY CLUTCH ASSEMBLY AND OIL SEAL RINGS FROM SUN GEAR
INSPECTION OF CENTER SUPPORT ASSEMBLY
1. CHECK OPERATION OF ONE-WAY CLUTCH
Hold the No. 2 brake hub and turn the sun gear. The sun gear should turn freely counterclockwise and should lock clockwise.
If the one-way clutch does not work properly, replace it.
2. IF NECESSARY, REPLACE ONE-WAY CLUTCH
(a) Bend several tabs back with a tapered punch.
(b) Pry off the retainer with a screwdriver. Leave the other retainer on the hub.
(c) Remove the one-way clutch.
(d) Install the one-way clutch into the brake hub, facing the spring cage toward the front.
