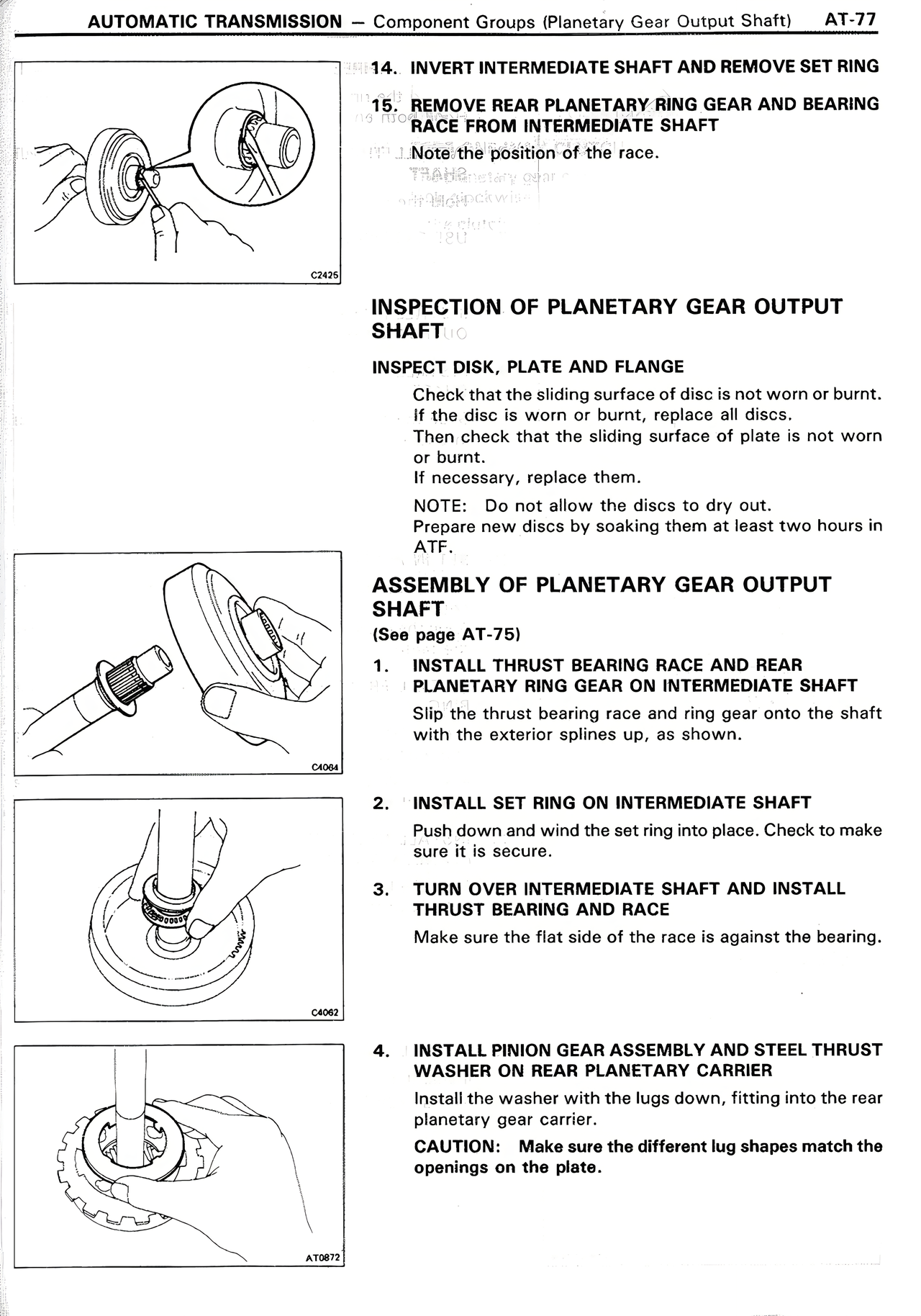

14. INVERT INTERMEDIATE SHAFT AND REMOVE SET RING 15. REMOVE REAR PLANETARY RING GEAR AND BEARING RACE FROM INTERMEDIATE SHAFT Note the position of the race. INSPECTION OF PLANETARY GEAR OUTPUT SHAFT INSPECT DISK, PLATE AND FLANGE Check that the sliding surface of disc is not worn or burnt. If the disc is worn or burnt, replace all discs. Then check that the sliding surface of plate is not worn or burnt. If necessary, replace them. NOTE: Do not allow the discs to dry out. Prepare new discs by soaking them at least two hours in ATF. ASSEMBLY OF PLANETARY GEAR OUTPUT SHAFT (See page AT-75) 1. INSTALL THRUST BEARING RACE AND REAR PLANETARY RING GEAR ON INTERMEDIATE SHAFT Slip the thrust bearing race and ring gear onto the shaft with the exterior splines up, as shown. 2. INSTALL SET RING ON INTERMEDIATE SHAFT Push down and wind the set ring into place. Check to make sure it is secure. 3. TURN OVER INTERMEDIATE SHAFT AND INSTALL THRUST BEARING AND RACE Make sure the flat side of the race is against the bearing. 4. INSTALL PINION GEAR ASSEMBLY AND STEEL THRUST WASHER ON REAR PLANETARY CARRIER Install the washer with the lugs down, fitting into the rear planetary gear carrier. CAUTION: Make sure the different lug shapes match the openings on the plate.
