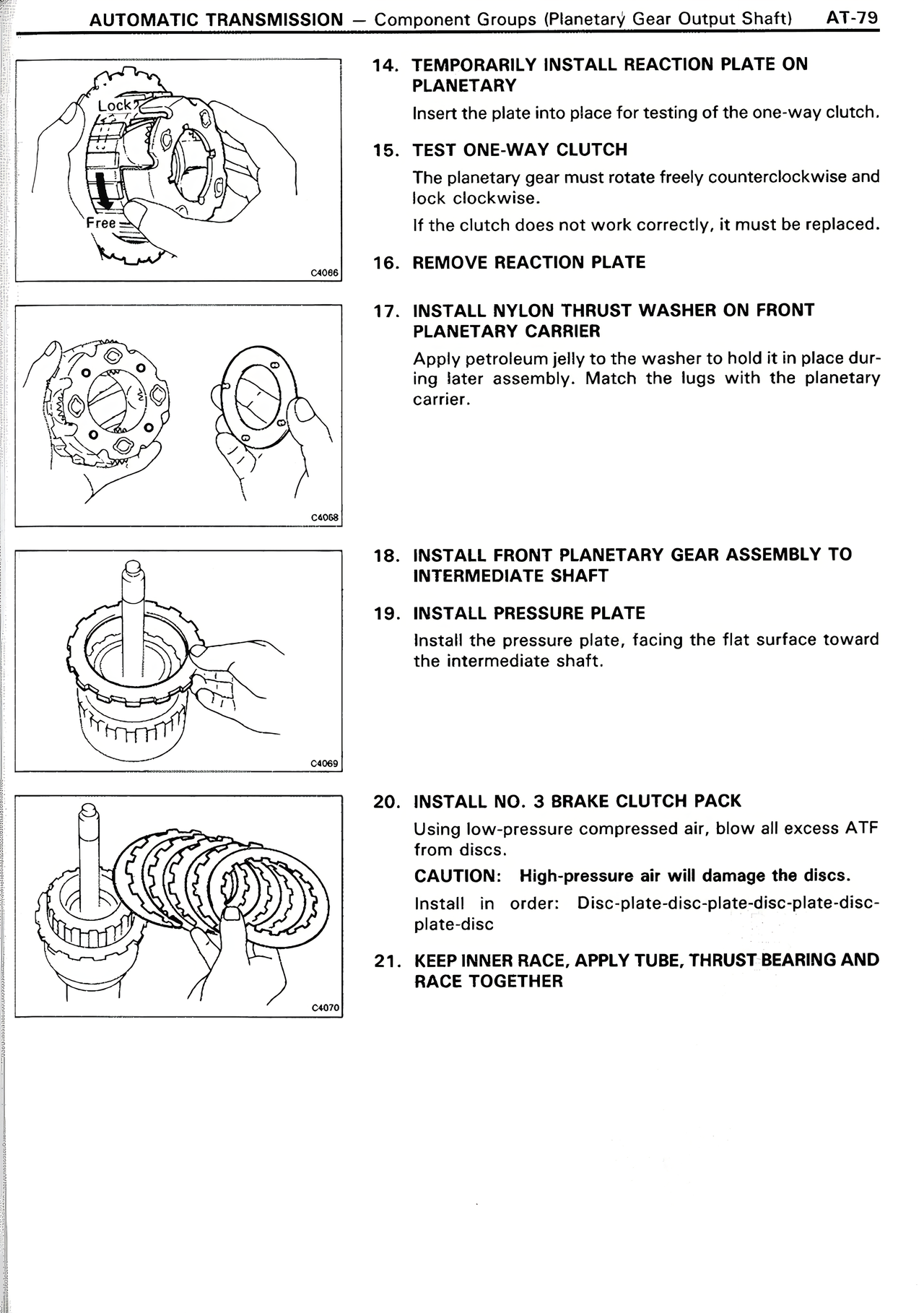

AUTOMATIC TRANSMISSION — Component Groups (Planetary Gear Output Shaft) AT-79
14. TEMPORARILY INSTALL REACTION PLATE ON PLANETARY
Insert the plate into place for testing of the one-way clutch.
15. TEST ONE-WAY CLUTCH
The planetary gear must rotate freely counterclockwise and lock clockwise.
If the clutch does not work correctly, it must be replaced.
16. REMOVE REACTION PLATE
17. INSTALL NYLON THRUST WASHER ON FRONT PLANETARY CARRIER
Apply petroleum jelly to the washer to hold it in place during later assembly. Match the lugs with the planetary carrier.
18. INSTALL FRONT PLANETARY GEAR ASSEMBLY TO INTERMEDIATE SHAFT
19. INSTALL PRESSURE PLATE
Install the pressure plate, positioning the flat surface toward the intermediate shaft.
20. INSTALL NO. 3 BRAKE CLUTCH PACK
Using low-pressure compressed air, blow all excess ATF from discs.
CAUTION: High-pressure air will damage the discs.
Install in order: Disc-plate-disc-plate-disc-plate-disc-plate-disc-plate-disc
21. KEEP INNER RACE, APPLY TUBE, THRUST BEARING AND RACE TOGETHER
