TSRM/MK2 Supra/Automatic Transmission/p.96

← 095AT · 096097 →

Automatic Transmission page 96

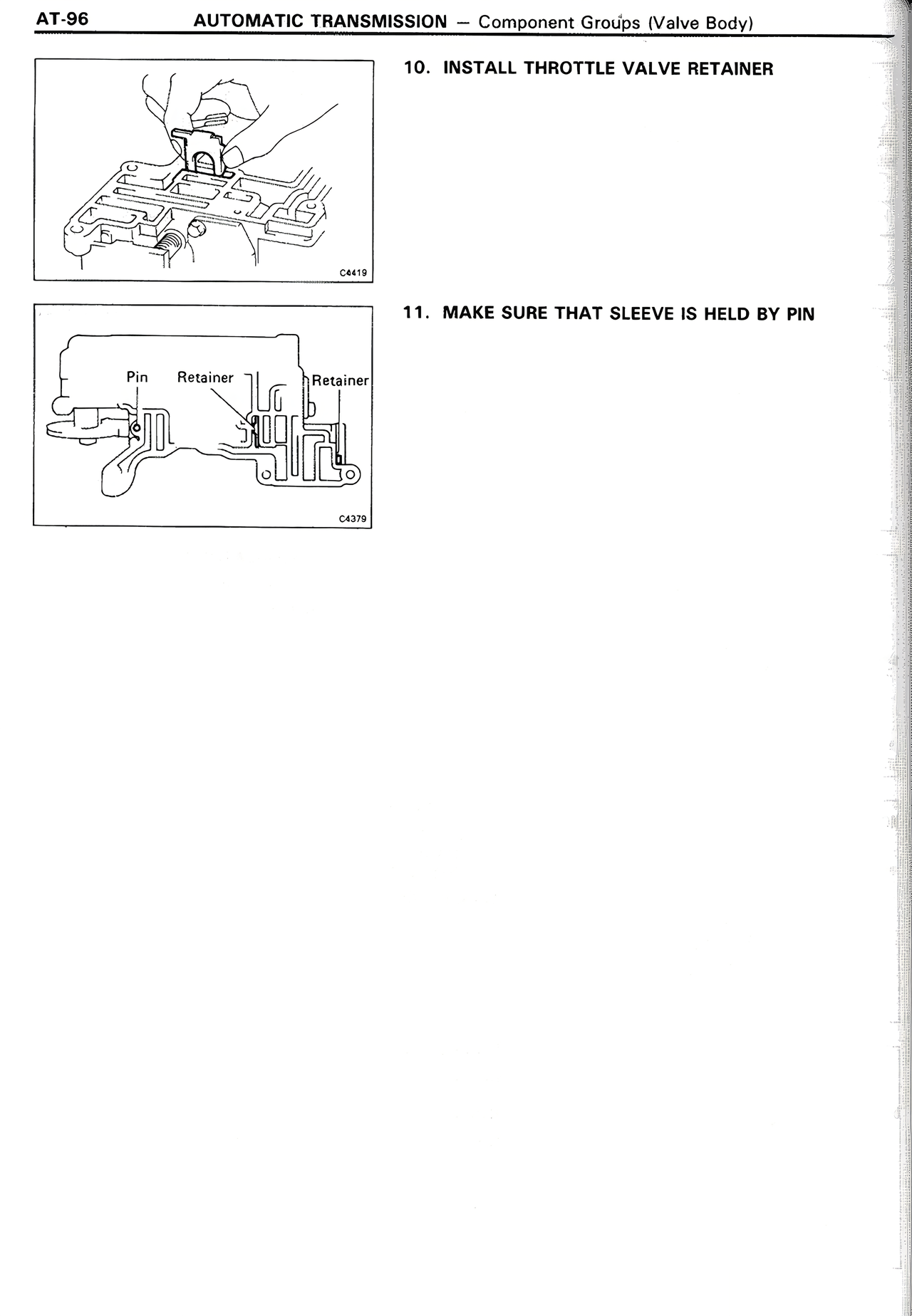

AT-96 AUTOMATIC TRANSMISSION — Component Groups (Valve Body) 10. INSTALL THROTTLE VALVE RETAINER [Diagram showing installation of throttle valve retainer] C4419 11. MAKE SURE THAT SLEEVE IS HELD BY PIN [Diagram showing pin, retainer, and sleeve components] Pin Retainer Retainer C4419
