BODY ELECTRICAL SYSTEM — Trip Computer
7-terminal Connector (of Wiring)
GND
7-terminal Connector (of wiring)
GND
+B
7-terminal Connector (of Wiring)
GND
DIM
7-terminal Connector (of Wiring)
GND
ACC
7-terminal Connector (of Wiring)
GND
VEF1

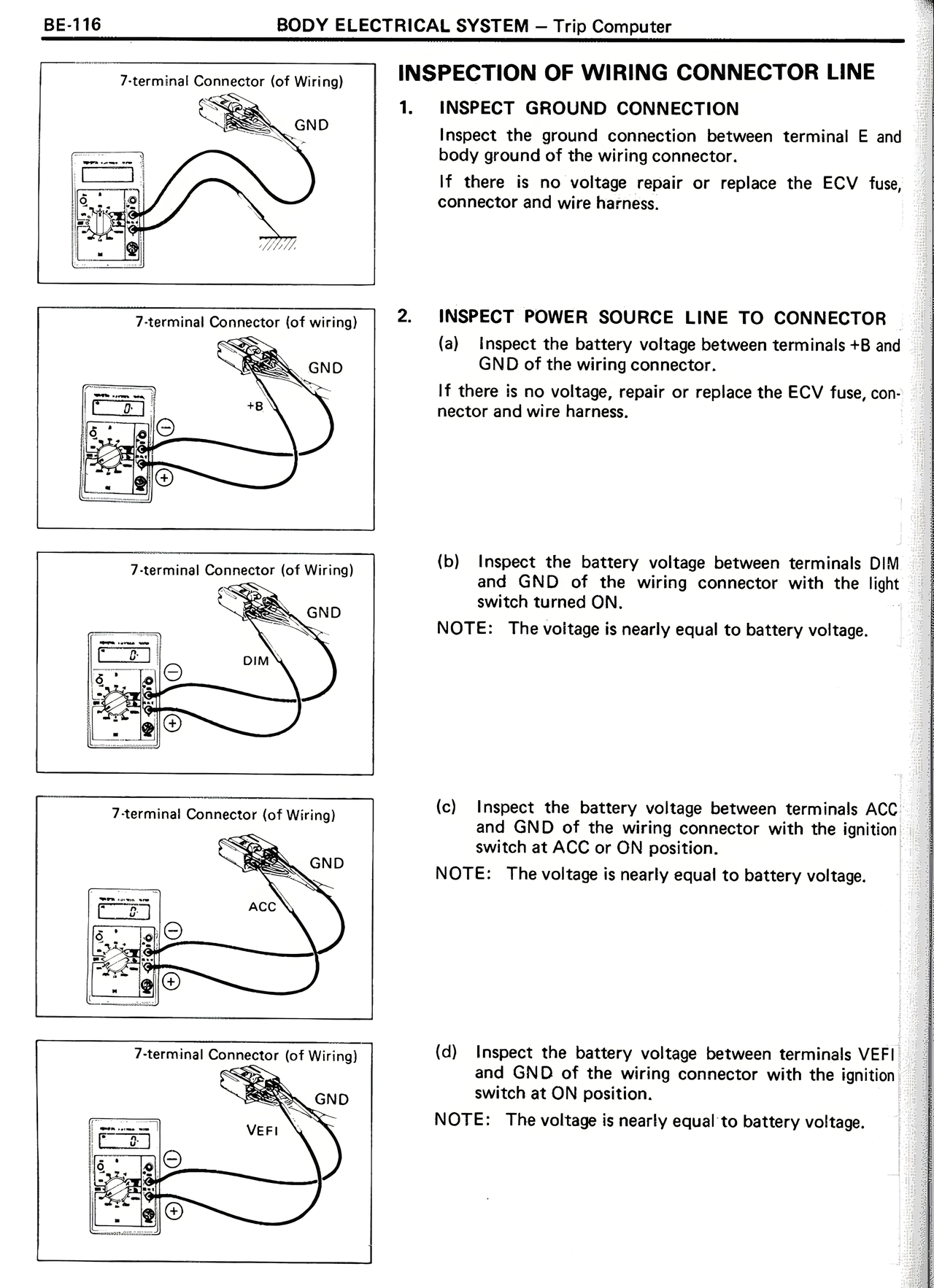

INSPECTION OF WIRING CONNECTOR LINE
1. INSPECT GROUND CONNECTION
Inspect the ground connection between terminal E and body ground of the wiring connector.
If there is no voltage repair or replace the ECV fuse, connector and wire harness.
2. INSPECT POWER SOURCE LINE TO CONNECTOR
(a) Inspect the battery voltage between terminals +B and GND of the wiring connector.
If there is no voltage, repair or replace the ECV fuse, connector and wire harness.
(b) Inspect the battery voltage between terminals DIM and GND of the wiring connector with the light switch turned ON.
NOTE: The voltage is nearly equal to battery voltage.
(c) Inspect the battery voltage between terminals ACC and GND of the wiring connector with the ignition switch at ACC or ON position.
NOTE: The voltage is nearly equal to battery voltage.
(d) Inspect the battery voltage between terminals VEF1 and GND of the wiring connector with the ignition switch at ON position.
NOTE: The voltage is nearly equal to battery voltage.
