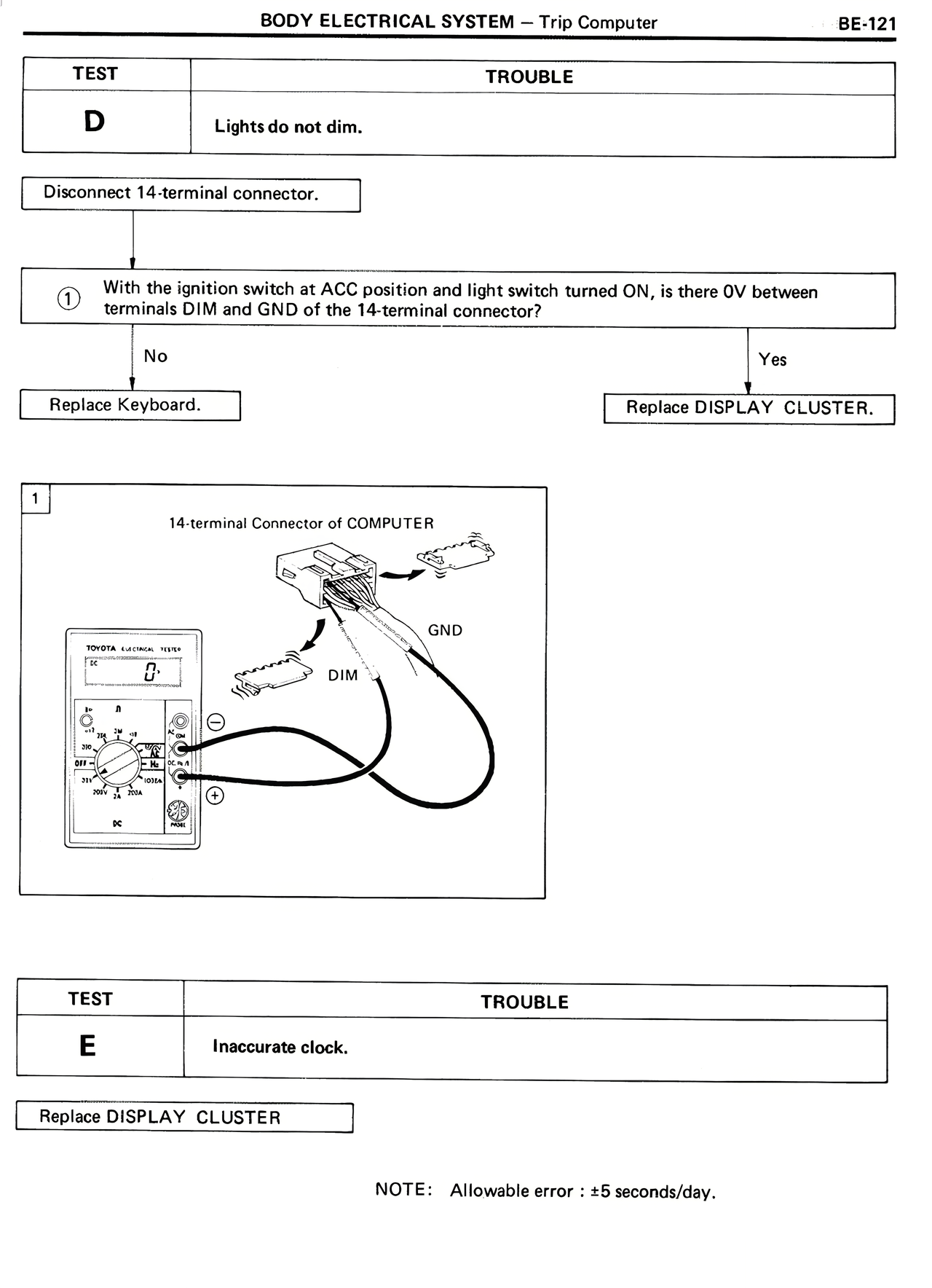

BODY ELECTRICAL SYSTEM — Trip Computer BE-121
TEST TROUBLE
D Lights do not dim.
Disconnect 14-terminal connector.
① With the ignition switch at ACC position and light switch turned ON, is there 0V between
terminals DIM and GND of the 14-terminal connector?
No Yes
Replace Keyboard. Replace DISPLAY CLUSTER.
1
14 terminal Connector of COMPUTER
GND
DIM
TEST TROUBLE
E Inaccurate clock.
Replace DISPLAY CLUSTER
NOTE: Allowable error : ±5 seconds/day.
