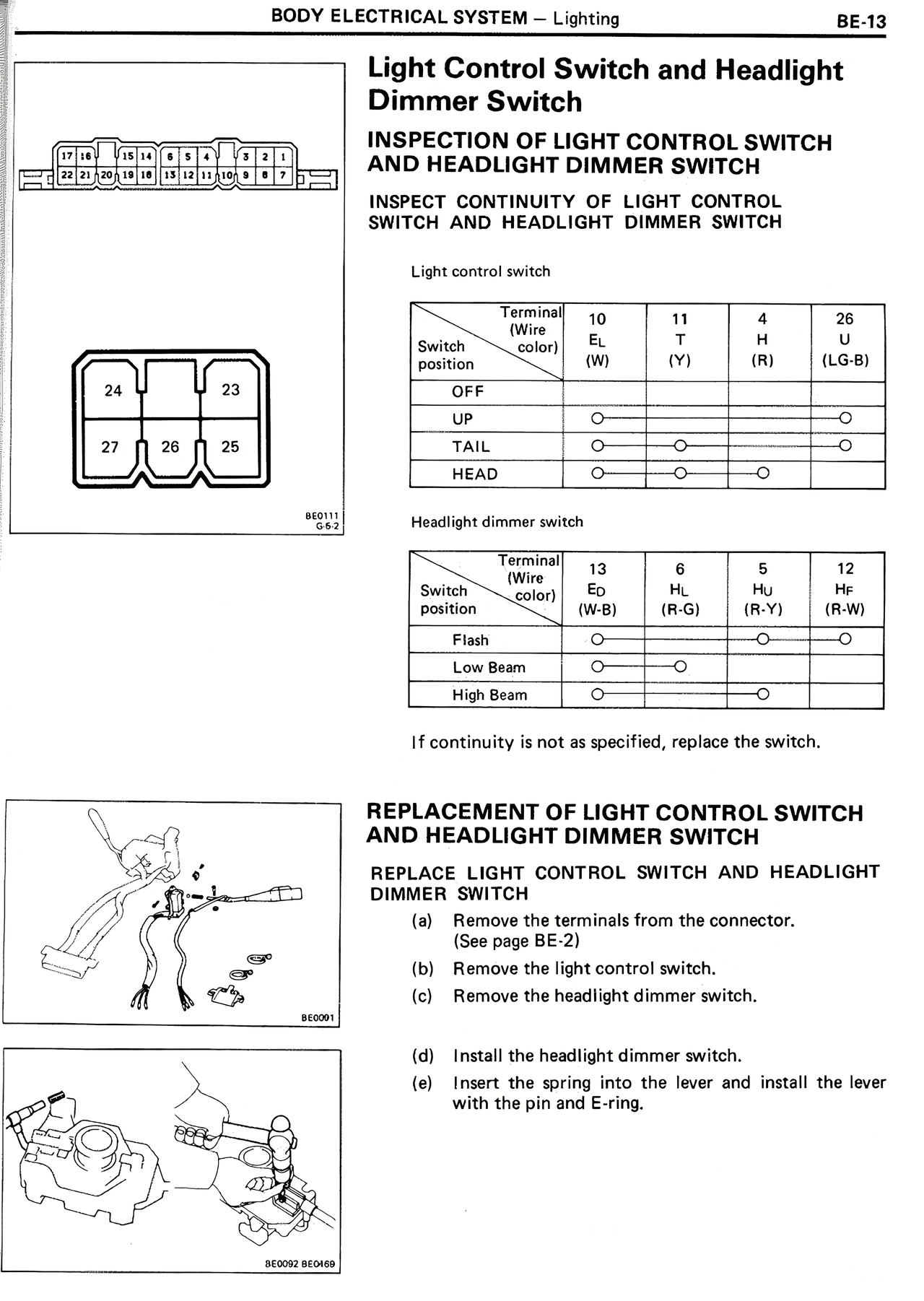

Light Control Switch and Headlight Dimmer Switch INSPECTION OF LIGHT CONTROL SWITCH AND HEADLIGHT DIMMER SWITCH INSPECT CONTINUITY OF LIGHT CONTROL SWITCH AND HEADLIGHT DIMMER SWITCH Light control switch Switch position | Terminal Wire color) | 10 EL (W) | 11 T (Y) | 4 H (R) | 26 U (LG-B) OFF | | | | | UP | O | | | O TAIL | O | O | | O HEAD | O | O | O | Headlight dimmer switch Switch position | Terminal (Wire color) | 13 ED (W-B) | 6 HL (R-G) | 5 HU (R-Y) | 12 Hc (R-W) Flash | O | O | O | O Low Beam | O | O | | High Beam | O | | O | If continuity is not as specified, replace the switch. REPLACEMENT OF LIGHT CONTROL SWITCH AND HEADLIGHT DIMMER SWITCH REPLACE LIGHT CONTROL SWITCH AND HEADLIGHT DIMMER SWITCH (a) Remove the terminals from the connector. (See page BE-2) (b) Remove the light control switch. (c) Remove the headlight dimmer switch. (d) Install the headlight dimmer switch. (e) Insert the spring into the lever and install the lever with the pin and E-ring.
