Continuity
[Diagram showing continuity test setup]
BE0086
Continuity
[Diagram showing relay testing setup]
BE0084
[Diagram showing another continuity test]
BE0085

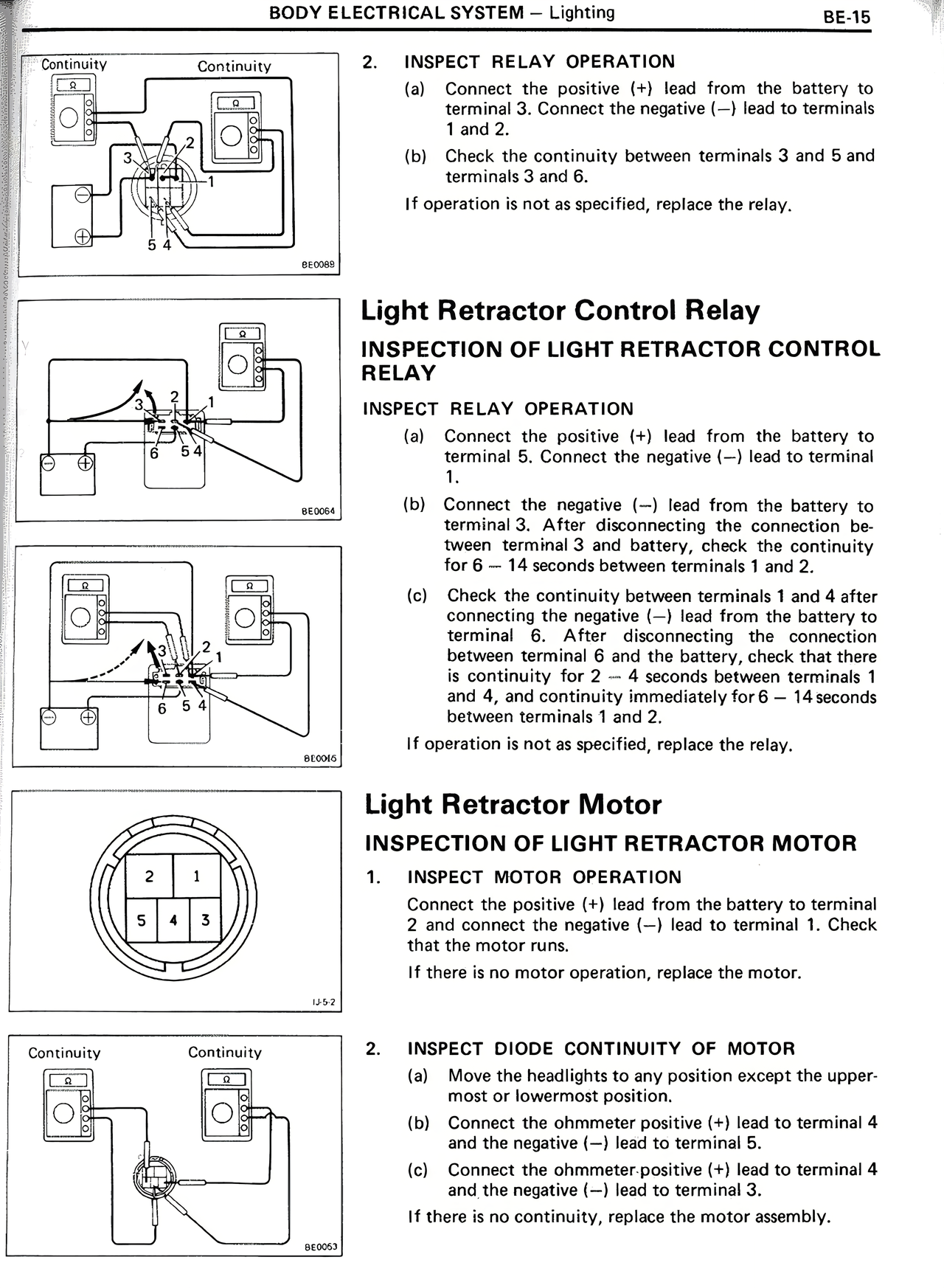

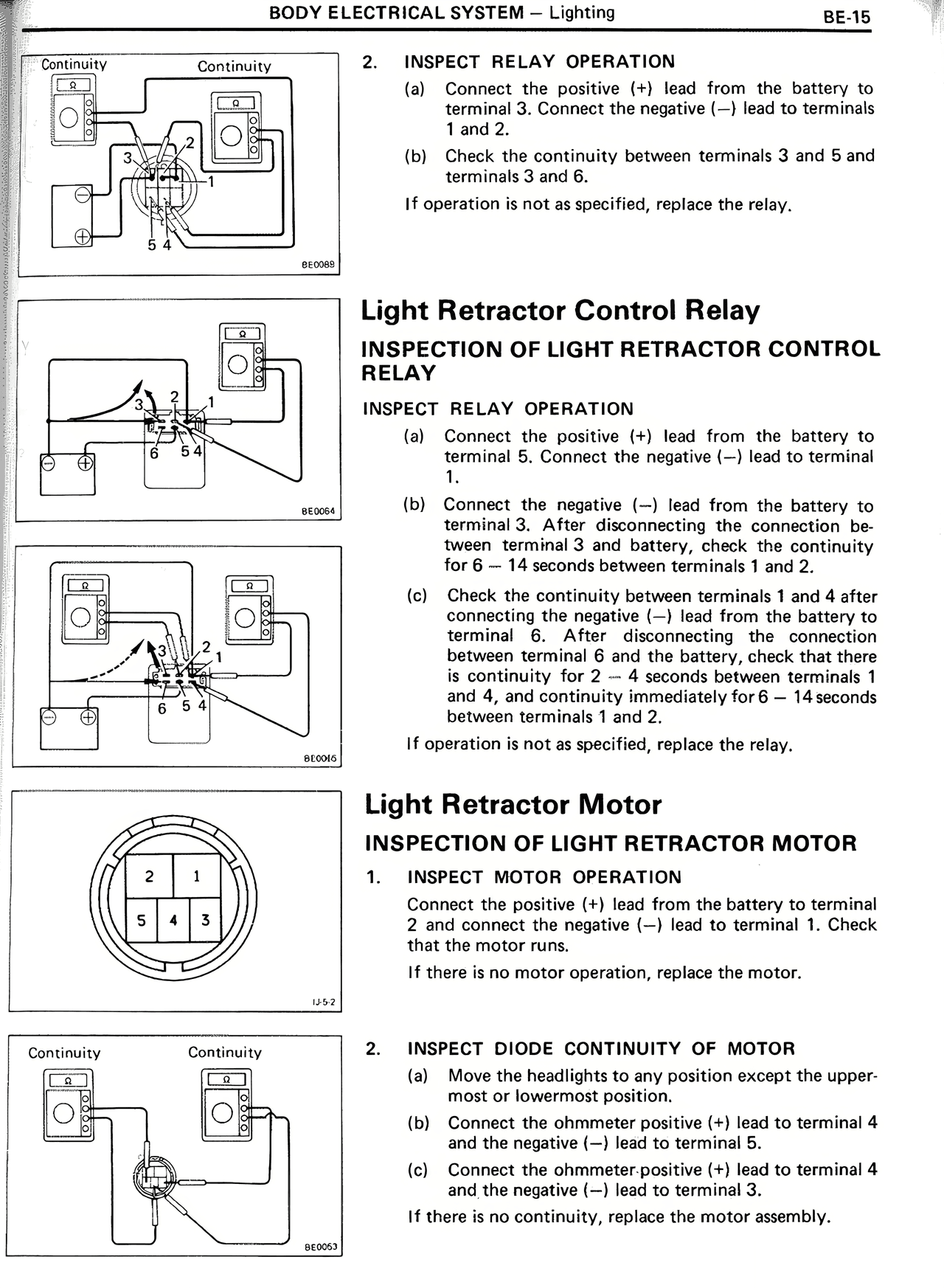

2. INSPECT RELAY OPERATION
(a) Connect the positive (+) lead from the battery to terminal 3. Connect the negative (—) lead to terminals 1 and 2.
(b) Check the continuity between terminals 3 and 5 and terminals 3 and 6.
If operation is not as specified, replace the relay.
Light Retractor Control Relay
INSPECTION OF LIGHT RETRACTOR CONTROL RELAY
INSPECT RELAY OPERATION
(a) Connect the positive (+) lead from the battery to terminal 5. Connect the negative (—) lead to terminal 1.
(b) Connect the negative (—) lead from the battery to terminal 3. After disconnecting the connection between terminal 3 and battery, check the continuity for 6 — 14 seconds between terminals 1 and 2.
(c) Check the continuity between terminals 1 and 4 after connecting the positive (+) lead from the battery to terminal 6. After disconnecting the connection between terminal 6 and the battery, check that there is continuity for 2 — 4 seconds between terminals 1 and 4, and continuity immediately for 6 — 14 seconds between terminals 1 and 2.
If operation is not as specified, replace the relay.
Light Retractor Motor
INSPECTION OF LIGHT RETRACTOR MOTOR
1. INSPECT MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 2 and connect the negative (—) lead to terminal 5. Check that the motor runs.
If there is no motor operation, replace the motor.
[Diagram showing motor terminal layout with numbers 1-5]
0367
2. INSPECT DIODE CONTINUITY OF MOTOR
(a) Move the headlights to any position except the uppermost or lowermost position.
(b) Connect the ohmmeter positive (+) lead to terminal 4 and the negative (—) lead to terminal 5.
(c) Connect the ohmmeter positive (+) lead to terminal 4 and the negative (—) lead to terminal 3.
If there is no continuity, replace the motor assembly.
Continuity
[Diagram showing continuity test]
BE0093
Continuity
[Diagram showing another continuity test]
BE0093
