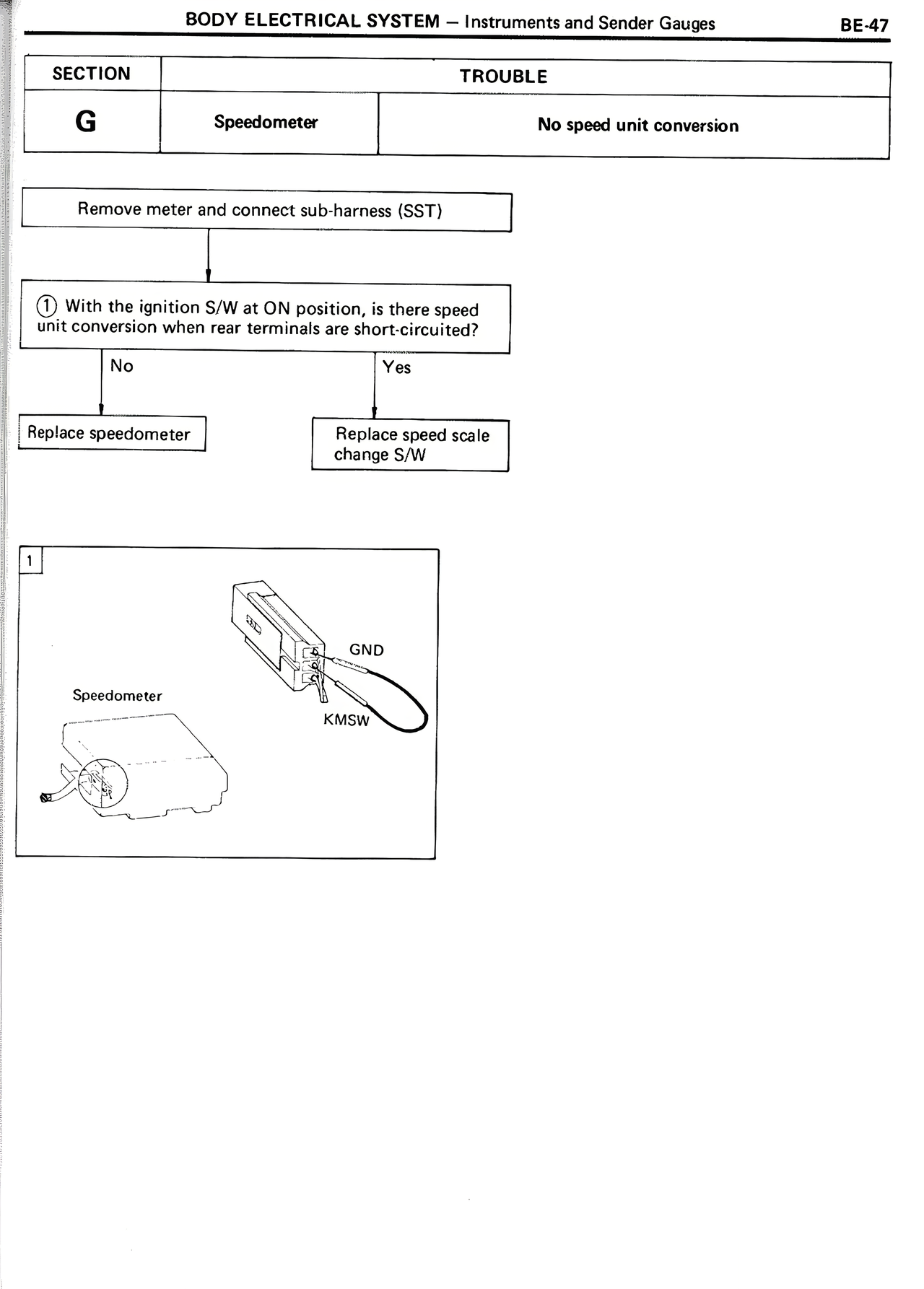

SECTION G
Speedometer
TROUBLE
No speed unit conversion
Remove meter and connect sub-harness (SST)
① With the ignition S/W at ON position, is there speed unit conversion when rear terminals are short-circuited?
No
Yes
Replace speedometer
Replace speed scale change S/W
1
Speedometer
GND
KMSW
