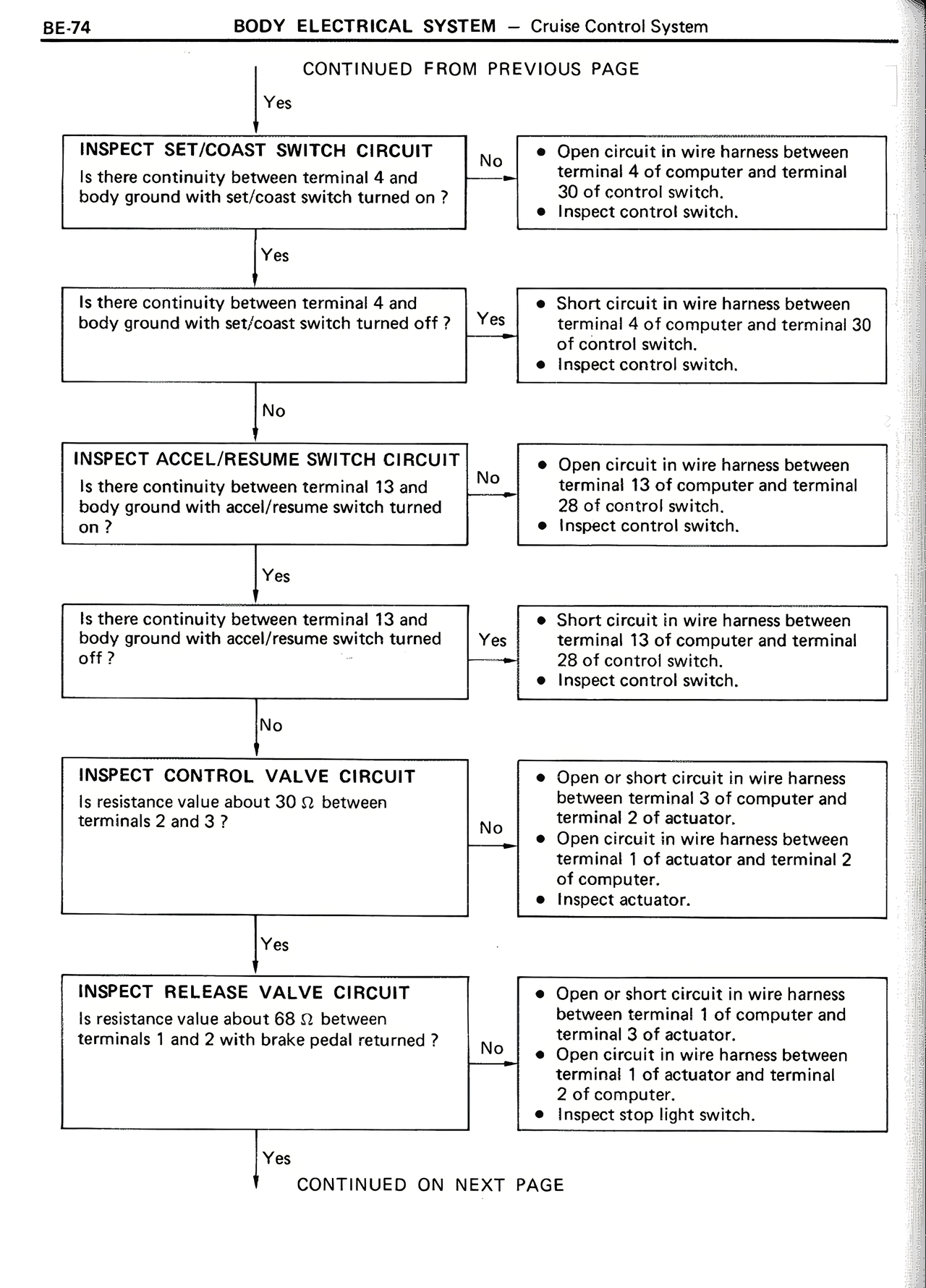

CONTINUED FROM PREVIOUS PAGE
Yes
INSPECT SET/COAST SWITCH CIRCUIT
Is there continuity between terminal 4 and body ground with set/coast switch turned on?
No
• Open circuit in wire harness between terminal 4 of computer and terminal 30 of control switch.
• Inspect control switch.
Yes
Is there continuity between terminal 4 and body ground with set/coast switch turned off?
Yes
• Short circuit in wire harness between terminal 4 of computer and terminal 30 of control switch.
• Inspect control switch.
No
INSPECT ACCEL/RESUME SWITCH CIRCUIT
Is there continuity between terminal 13 and body ground with accel/resume switch turned on?
No
• Open circuit in wire harness between terminal 13 of computer and terminal 28 of control switch.
• Inspect control switch.
Yes
Is there continuity between terminal 13 and body ground with accel/resume switch turned off?
Yes
• Short circuit in wire harness between terminal 13 of computer and terminal 28 of control switch.
• Inspect control switch.
No
INSPECT CONTROL VALVE CIRCUIT
Is resistance value about 30 Ω between terminals 2 and 3?
No
• Open or short circuit in wire harness between terminal 3 of computer and terminal 2 of actuator.
• Open circuit in wire harness between terminal 1 of actuator and terminal 2 of computer.
• Inspect actuator.
Yes
INSPECT RELEASE VALVE CIRCUIT
Is resistance value about 68 Ω between terminals 1 and 2 with brake pedal returned?
No
• Open or short circuit in wire harness between terminal 1 of computer and terminal 3 of actuator.
• Open circuit in wire harness between terminal 1 of actuator and terminal 2 of computer.
• Inspect stop light switch.
Yes
CONTINUED ON NEXT PAGE
