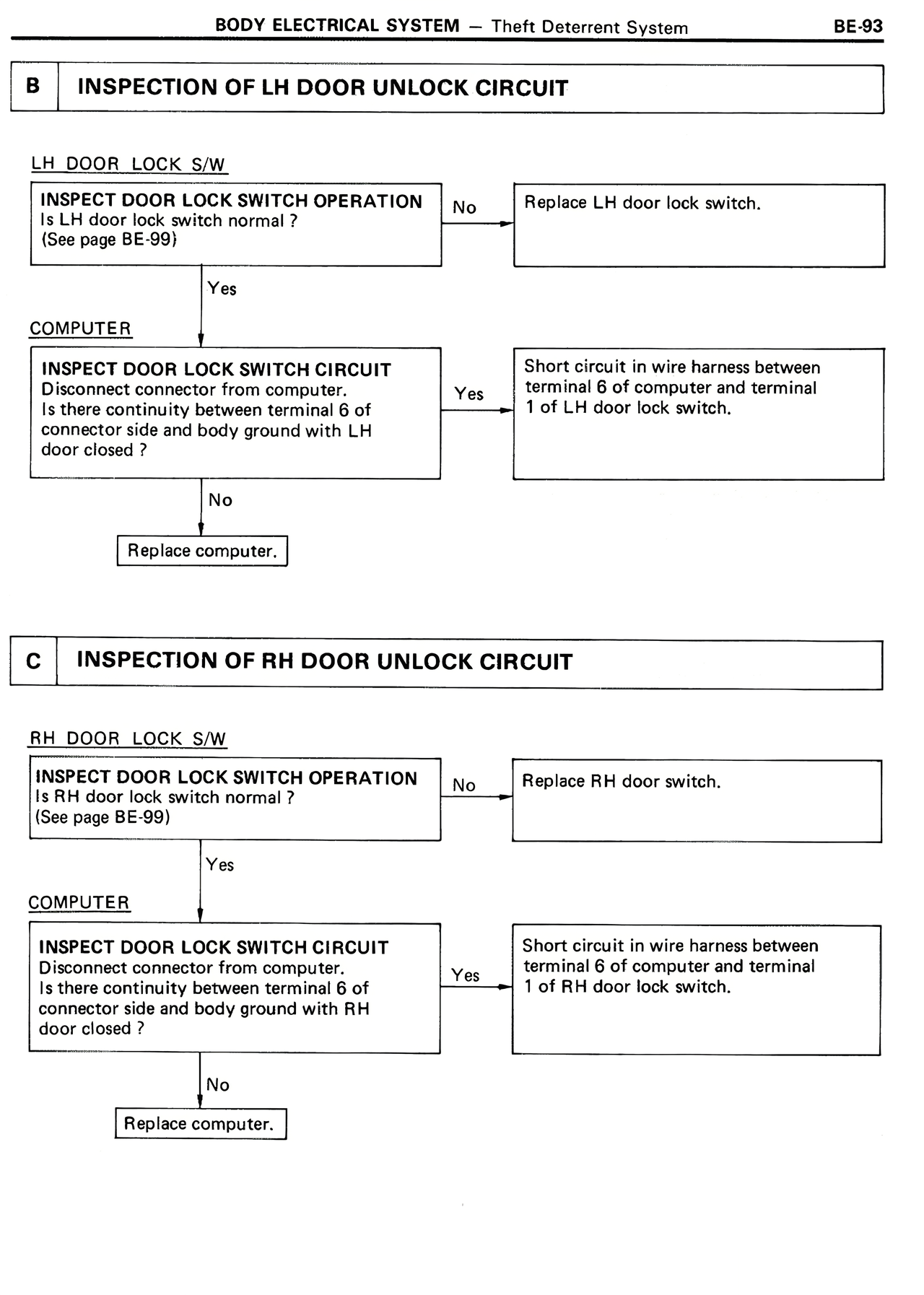

B INSPECTION OF LH DOOR UNLOCK CIRCUIT
LH DOOR LOCK S/W
INSPECT DOOR LOCK SWITCH OPERATION
Is LH door lock switch normal?
(See page BE-99)
No
Replace LH door lock switch.
Yes
COMPUTER
INSPECT DOOR LOCK SWITCH CIRCUIT
Disconnect connector from computer.
Is there continuity between terminal 6 of
connector side and body ground with LH
door closed?
Yes
Short circuit in wire harness between
terminal 6 of computer and terminal
1 of LH door lock switch.
No
Replace computer.
C INSPECTION OF RH DOOR UNLOCK CIRCUIT
RH DOOR LOCK S/W
INSPECT DOOR LOCK SWITCH OPERATION
Is RH door lock switch normal?
(See page BE-99)
No
Replace RH door lock switch.
Yes
COMPUTER
INSPECT DOOR LOCK SWITCH CIRCUIT
Disconnect connector from computer.
Is there continuity between terminal 6 of
connector side and body ground with RH
door closed?
Yes
Short circuit in wire harness between
terminal 6 of computer and terminal
1 of RH door lock switch.
No
Replace computer.
