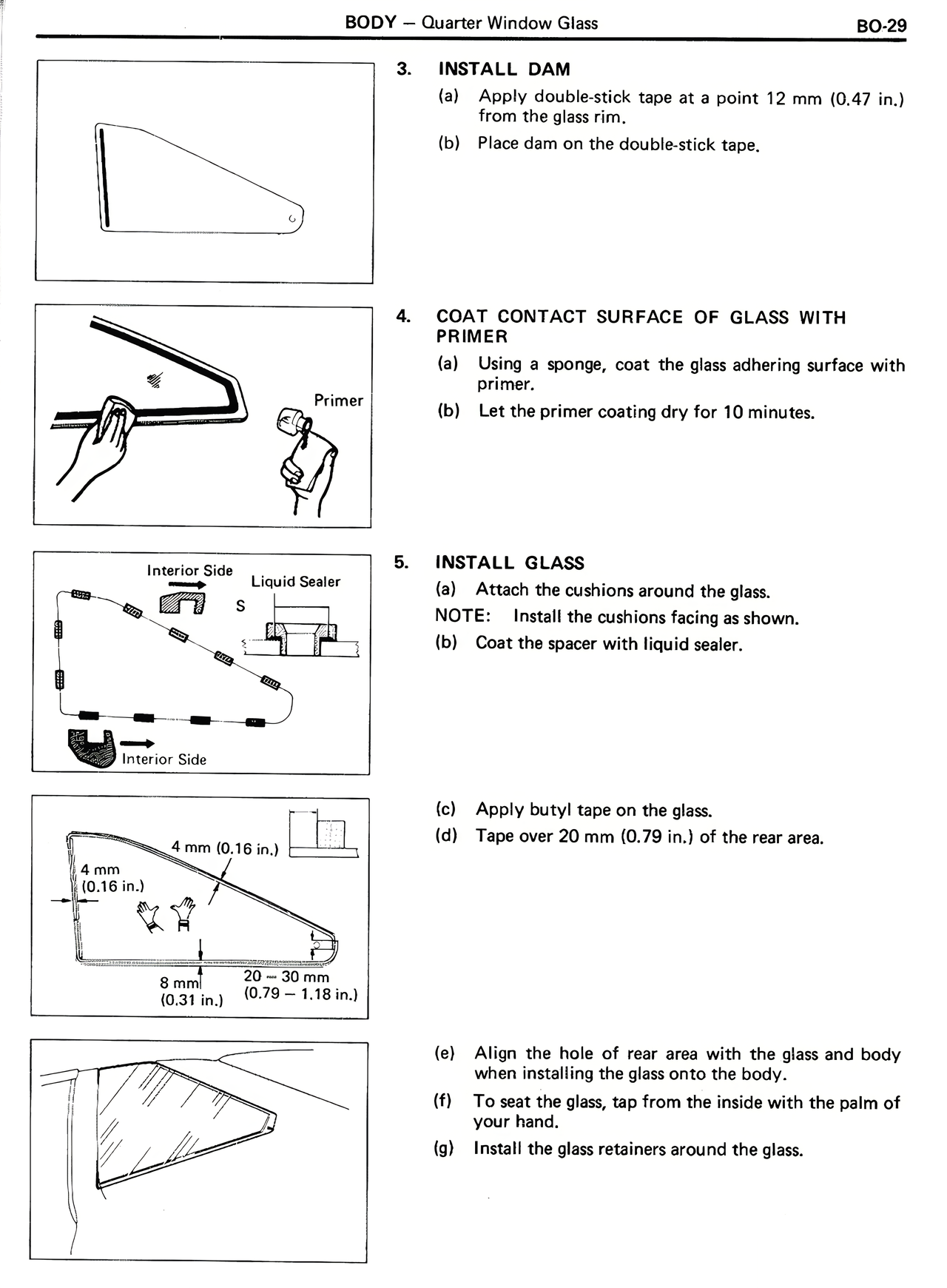

3. INSTALL DAM (a) Apply double-stick tape at a point 12 mm (0.47 in.) from the glass rim. (b) Place dam on the double-stick tape. 4. COAT CONTACT SURFACE OF GLASS WITH PRIMER (a) Using a sponge, coat the glass adhering surface with primer. (b) Let the primer coating dry for 10 minutes. 5. INSTALL GLASS (a) Attach the cushions around the glass. NOTE: Install the cushions facing as shown. (b) Coat the spacer with liquid sealer. (c) Apply butyl tape on the glass. (d) Tape over 20 mm (0.79 in.) of the rear area. (e) Align the hole of rear area with the glass and body when installing the glass onto the body. (f) To seat the glass, tap from the inside with the palm of your hand. (g) Install the glass retainers around the glass.
