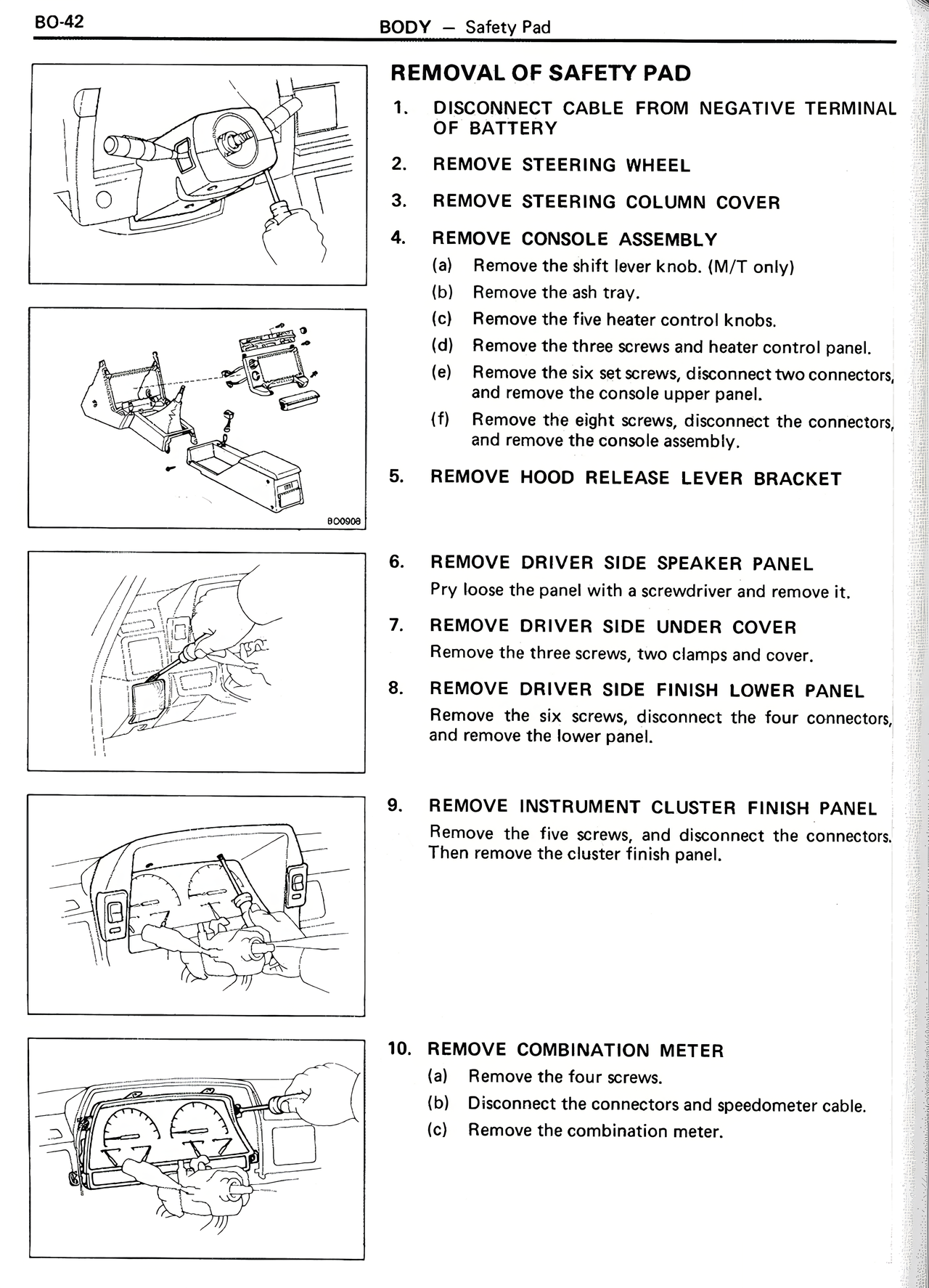

REMOVAL OF SAFETY PAD
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY
2. REMOVE STEERING WHEEL
3. REMOVE STEERING COLUMN COVER
4. REMOVE CONSOLE ASSEMBLY
(a) Remove the shift lever knob. (M/T only)
(b) Remove the ash tray.
(c) Remove the five heater control knobs.
(d) Remove the three screws and heater control panel.
(e) Remove the six set screws, disconnect two connectors, and remove the console upper panel.
(f) Remove the eight screws, disconnect the connectors, and remove the console assembly.
5. REMOVE HOOD RELEASE LEVER BRACKET
6. REMOVE DRIVER SIDE SPEAKER PANEL
Pry loose the panel with a screwdriver and remove it.
7. REMOVE DRIVER SIDE UNDER COVER
Remove the three screws, two clamps and cover.
8. REMOVE DRIVER SIDE FINISH LOWER PANEL
Remove the six screws, disconnect the four connectors, and remove the lower panel.
9. REMOVE INSTRUMENT CLUSTER FINISH PANEL
Remove the five screws, and disconnect the connectors. Then remove the cluster finish panel.
10. REMOVE COMBINATION METER
(a) Remove the four screws.
(b) Disconnect the connectors and speedometer cable.
(c) Remove the combination meter.
