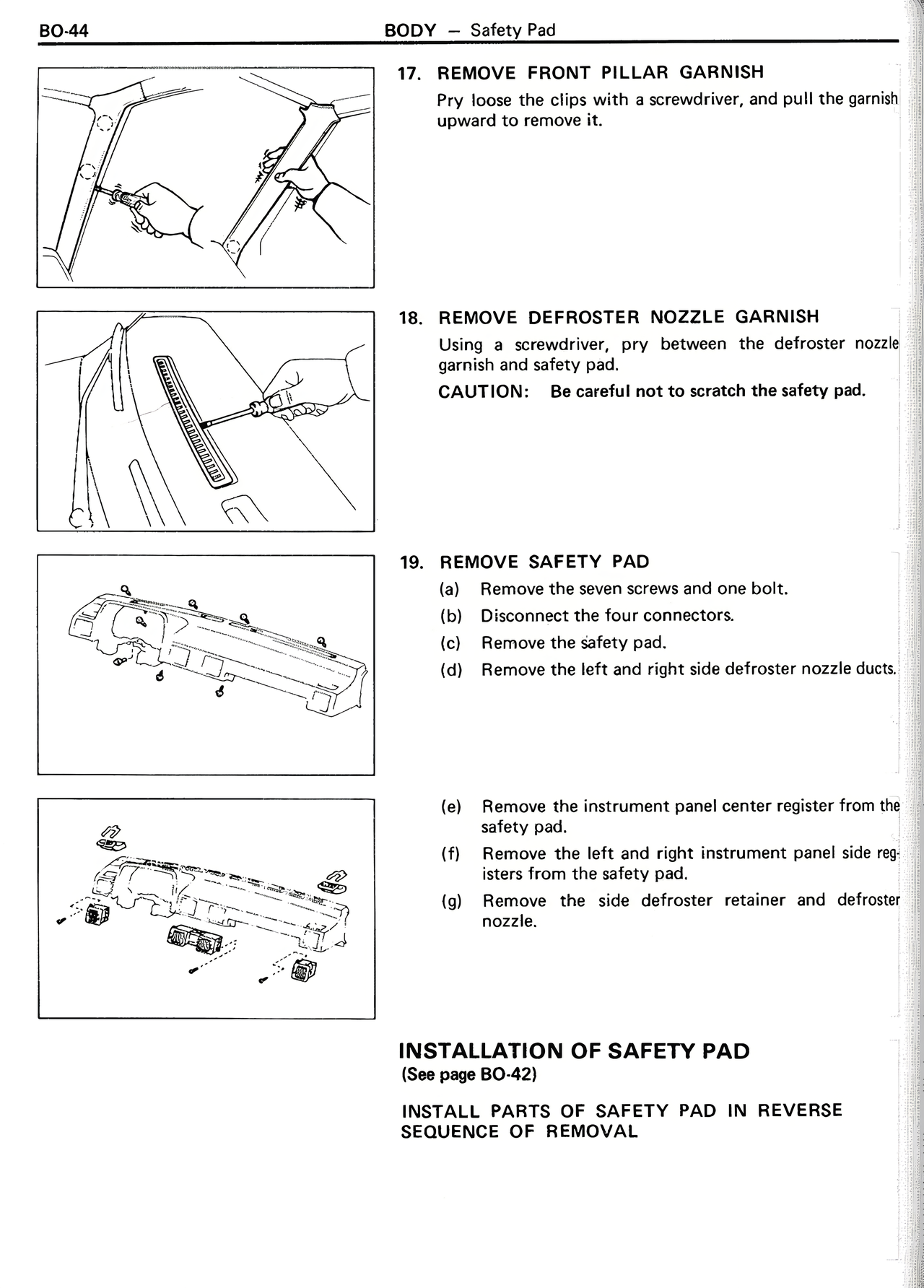

17. REMOVE FRONT PILLAR GARNISH
Pry loose the clips with a screwdriver, and pull the garnish upward to remove it.
18. REMOVE DEFROSTER NOZZLE GARNISH
Using a screwdriver, pry between the defroster nozzle garnish and safety pad.
CAUTION: Be careful not to scratch the safety pad.
19. REMOVE SAFETY PAD
(a) Remove the seven screws and one bolt.
(b) Disconnect the four connectors.
(c) Remove the safety pad.
(d) Remove the left and right side defroster nozzle ducts.
(e) Remove the instrument panel center register from the safety pad.
(f) Remove the left and right instrument panel side registers from the safety pad.
(g) Remove the side defroster retainer and defroster nozzle.
INSTALLATION OF SAFETY PAD
(See page BO-42)
INSTALL PARTS OF SAFETY PAD IN REVERSE SEQUENCE OF REMOVAL
