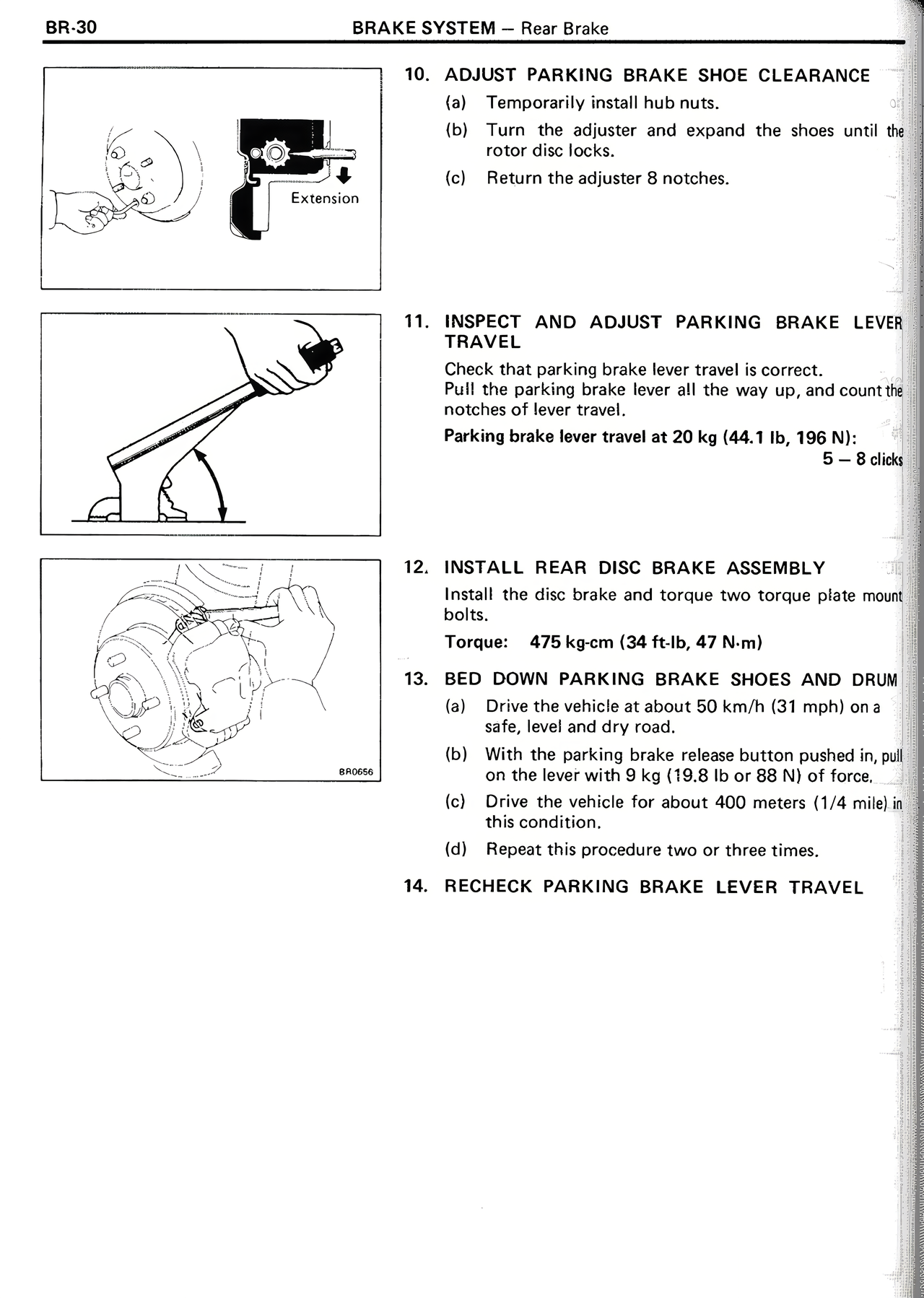

10. ADJUST PARKING BRAKE SHOE CLEARANCE (a) Temporarily install hub nuts. (b) Turn the adjuster and expand the shoes until the rotor disc locks. (c) Return the adjuster 8 notches. 11. INSPECT AND ADJUST PARKING BRAKE LEVER TRAVEL Check that parking brake lever travel is correct. Pull the parking brake lever all the way up, and count the notches of lever travel. Parking brake lever travel at 20 kg (44.1 lb, 196 N): 5 – 8 clicks 12. INSTALL REAR DISC BRAKE ASSEMBLY Install the disc brake and torque two torque plate mount bolts. Torque: 475 kg-cm (34 ft-lb, 47 N-m) 13. BED DOWN PARKING BRAKE SHOES AND DRUM (a) Drive the vehicle at about 50 km/h (31 mph) on a safe, level and dry road. (b) With the parking brake release button pushed in, pull on the lever with 9 kg (19.8 lb or 88 N) of force. (c) Drive the vehicle for about 400 meters (1/4 mile) in this condition. (d) Repeat this procedure two or three times. 14. RECHECK PARKING BRAKE LEVER TRAVEL
