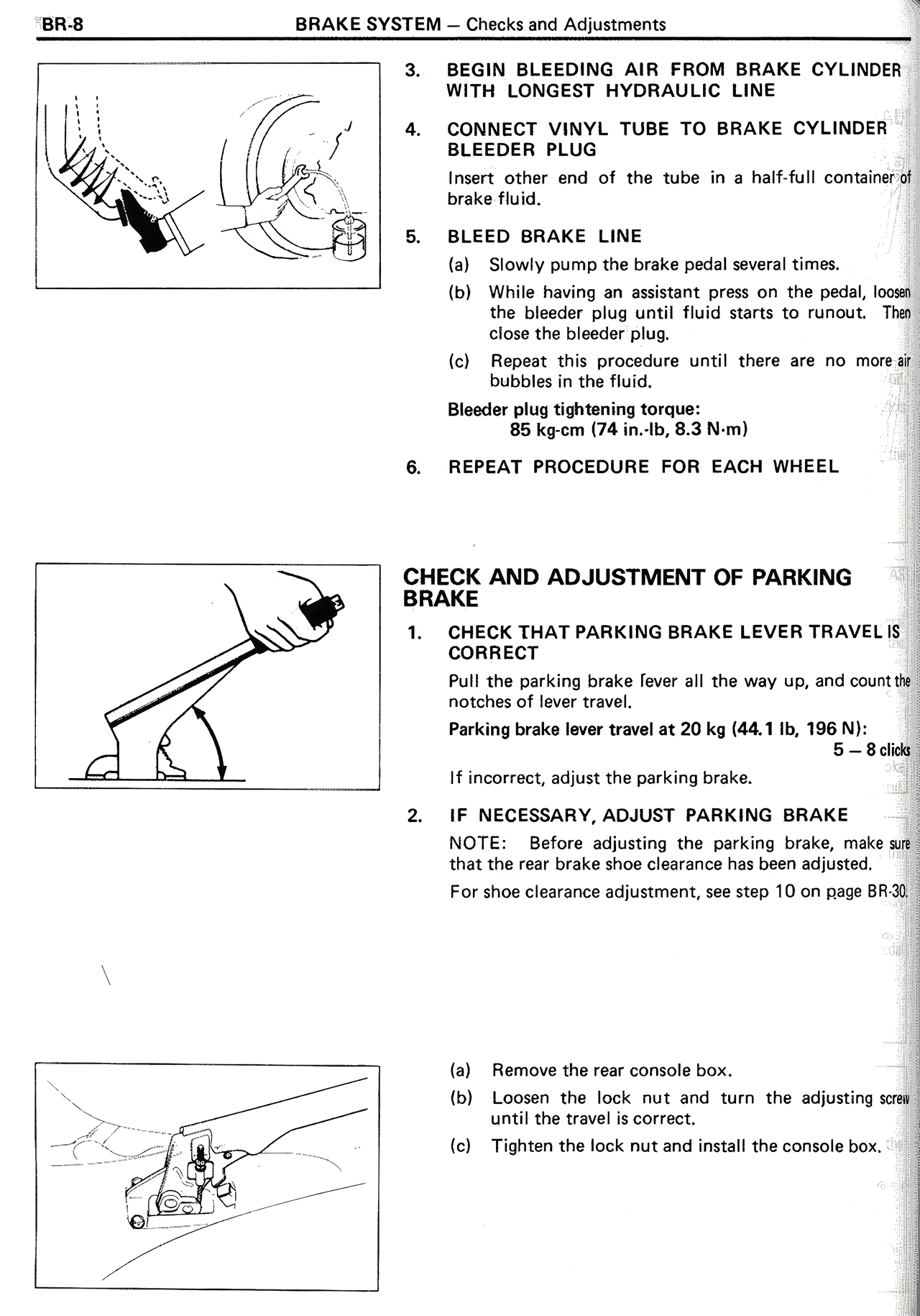

3. BEGIN BLEEDING AIR FROM BRAKE CYLINDER WITH LONGEST HYDRAULIC LINE
4. CONNECT VINYL TUBE TO BRAKE CYLINDER BLEEDER PLUG
Insert other end of the tube in a half-full container of brake fluid.
5. BLEED BRAKE LINE
(a) Slowly pump the brake pedal several times.
(b) While having an assistant press on the pedal, loosen the bleeder plug until fluid starts to runout. Then close the bleeder plug.
(c) Repeat this procedure until there are no more air bubbles in the fluid.
Bleeder plug tightening torque:
85 kg-cm (74 in.-lb, 8.3 N-m)
6. REPEAT PROCEDURE FOR EACH WHEEL
CHECK AND ADJUSTMENT OF PARKING BRAKE
1. CHECK THAT PARKING BRAKE LEVER TRAVEL IS CORRECT
Pull the parking brake lever all the way up, and count the number of lever travel.
Parking brake lever travel at 20 kg (44.1 lb, 196 N):
5 — 8 clicks
If incorrect, adjust the parking brake.
2. IF NECESSARY, ADJUST PARKING BRAKE
NOTE: Before adjusting the parking brake, make sure that the rear brake shoe clearance has been adjusted.
For shoe clearance adjustment, see step 10 on page BR-30.
(a) Remove the rear console box.
(b) Loosen the lock nut and turn the adjusting screw until the travel is correct.
(c) Tighten the lock nut and install the console box.
