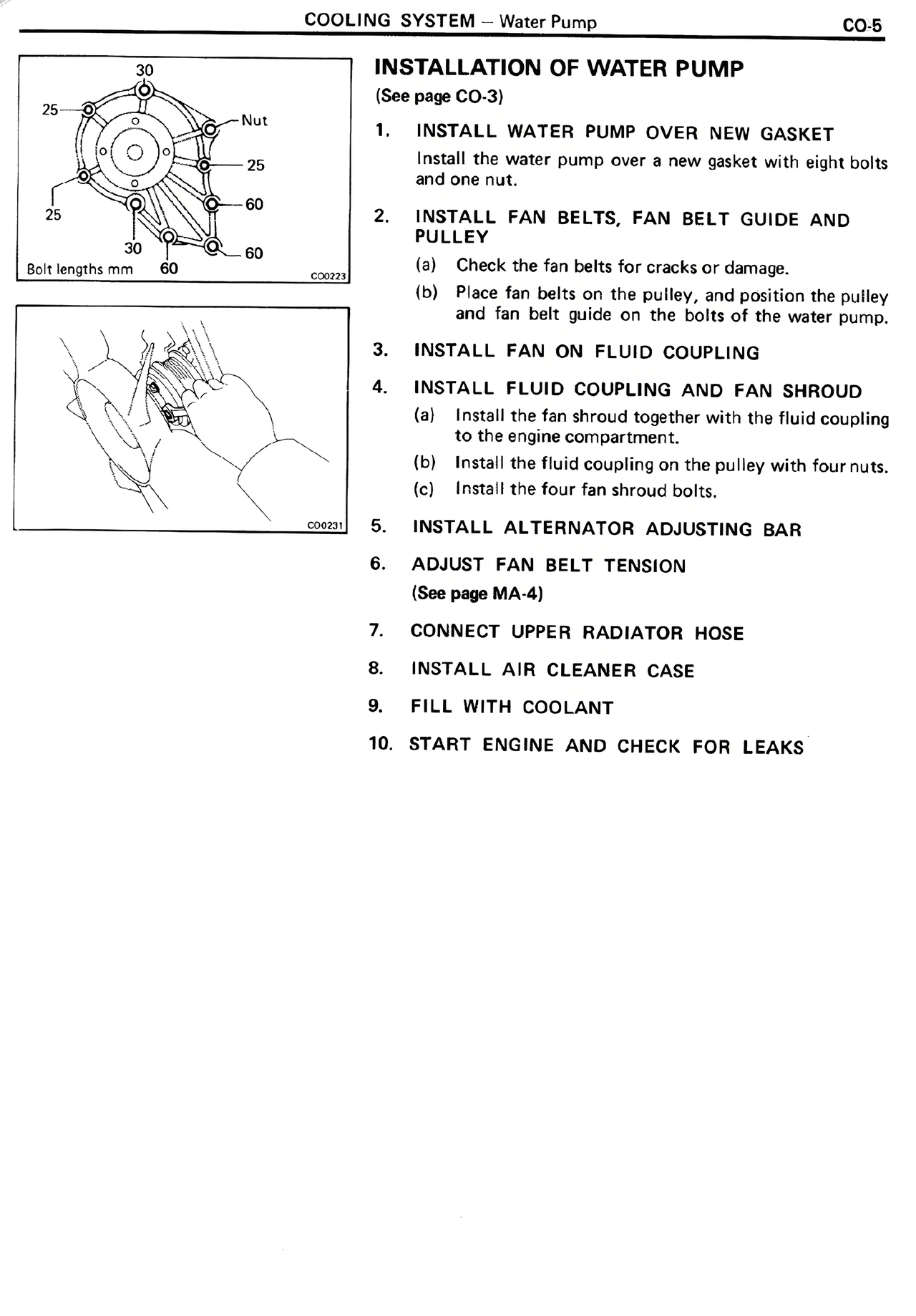

INSTALLATION OF WATER PUMP
(See page CO-3)
1. INSTALL WATER PUMP OVER NEW GASKET
Install the water pump over a new gasket with eight bolts and one nut.
2. INSTALL FAN BELTS, FAN BELT GUIDE AND PULLEY
(a) Check the fan belts for cracks or damage.
(b) Place fan belts on the pulley, and position the pulley and fan belt guide on the bolts of the water pump.
3. INSTALL FAN ON FLUID COUPLING
4. INSTALL FLUID COUPLING AND FAN SHROUD
(a) Install the fan shroud together with the fluid coupling into the engine compartment.
(b) Install the fluid coupling on the pulley with four nuts.
(c) Install the four fan shroud bolts.
5. INSTALL ALTERNATOR ADJUSTING BAR
6. ADJUST FAN BELT TENSION
(See page MA-4)
7. CONNECT UPPER RADIATOR HOSE
8. INSTALL AIR CLEANER CASE
9. FILL WITH COOLANT
10. START ENGINE AND CHECK FOR LEAKS
