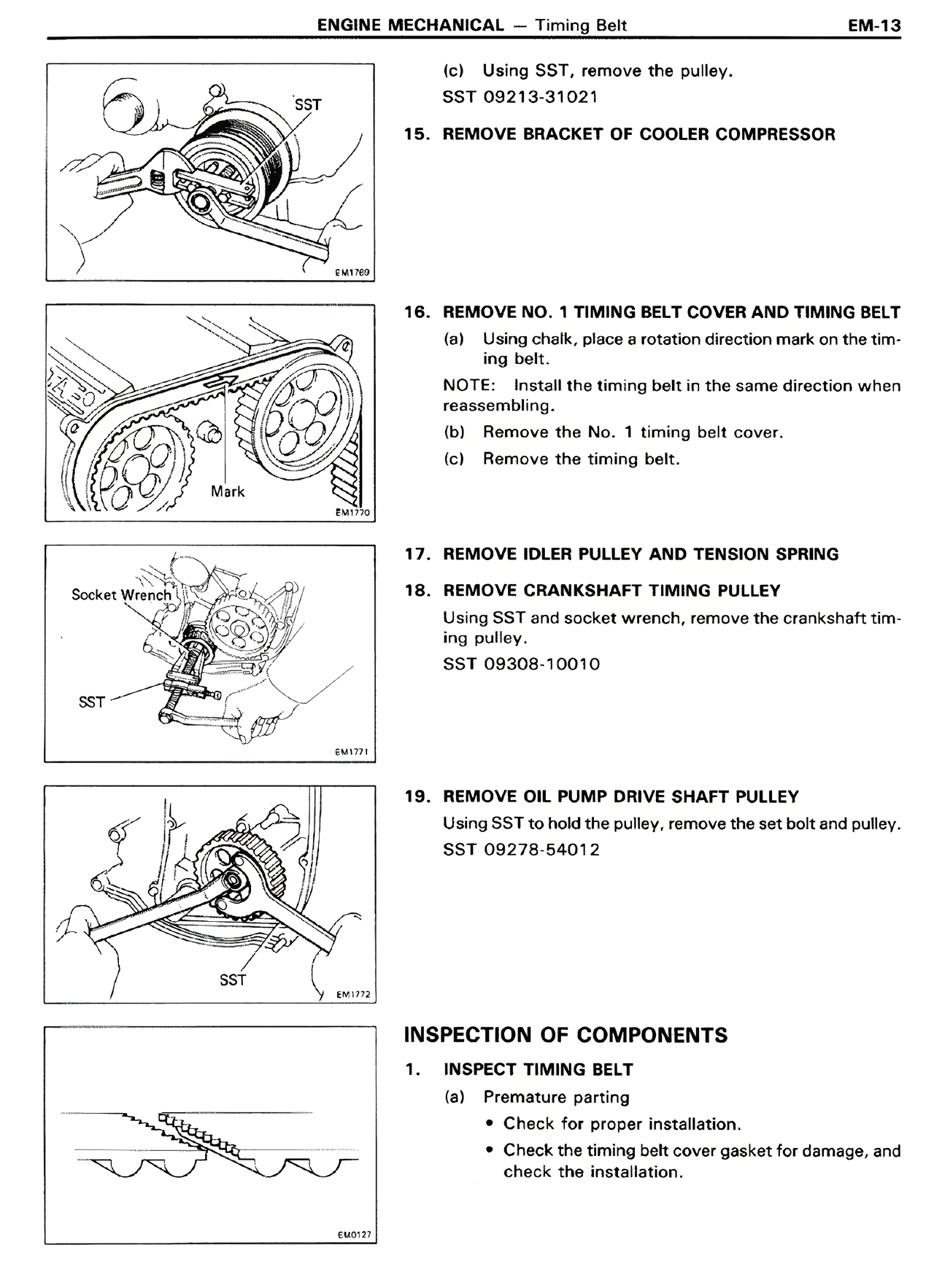

ENGINE MECHANICAL — Timing Belt EM-13 (c) Using SST, remove the pulley. SST 09213-31021 15. REMOVE BRACKET OF COOLER COMPRESSOR 16. REMOVE NO. 1 TIMING BELT COVER AND TIMING BELT (a) Using chalk, place a rotation direction mark on the timing belt. NOTE: Install the timing belt in the same direction when reassembling. (b) Remove the No. 1 timing belt cover. (c) Remove the timing belt. 17. REMOVE IDLER PULLEY AND TENSION SPRING 18. REMOVE CRANKSHAFT TIMING PULLEY Using SST and socket wrench, remove the crankshaft timing pulley. SST 09308-10010 19. REMOVE OIL PUMP DRIVE SHAFT PULLEY Using SST to hold the pulley, remove the set bolt and pulley. SST 09278-54012 INSPECTION OF COMPONENTS 1. INSPECT TIMING BELT (a) Premature parting • Check for proper installation. • Check the timing belt cover gasket for damage, and check the installation.
