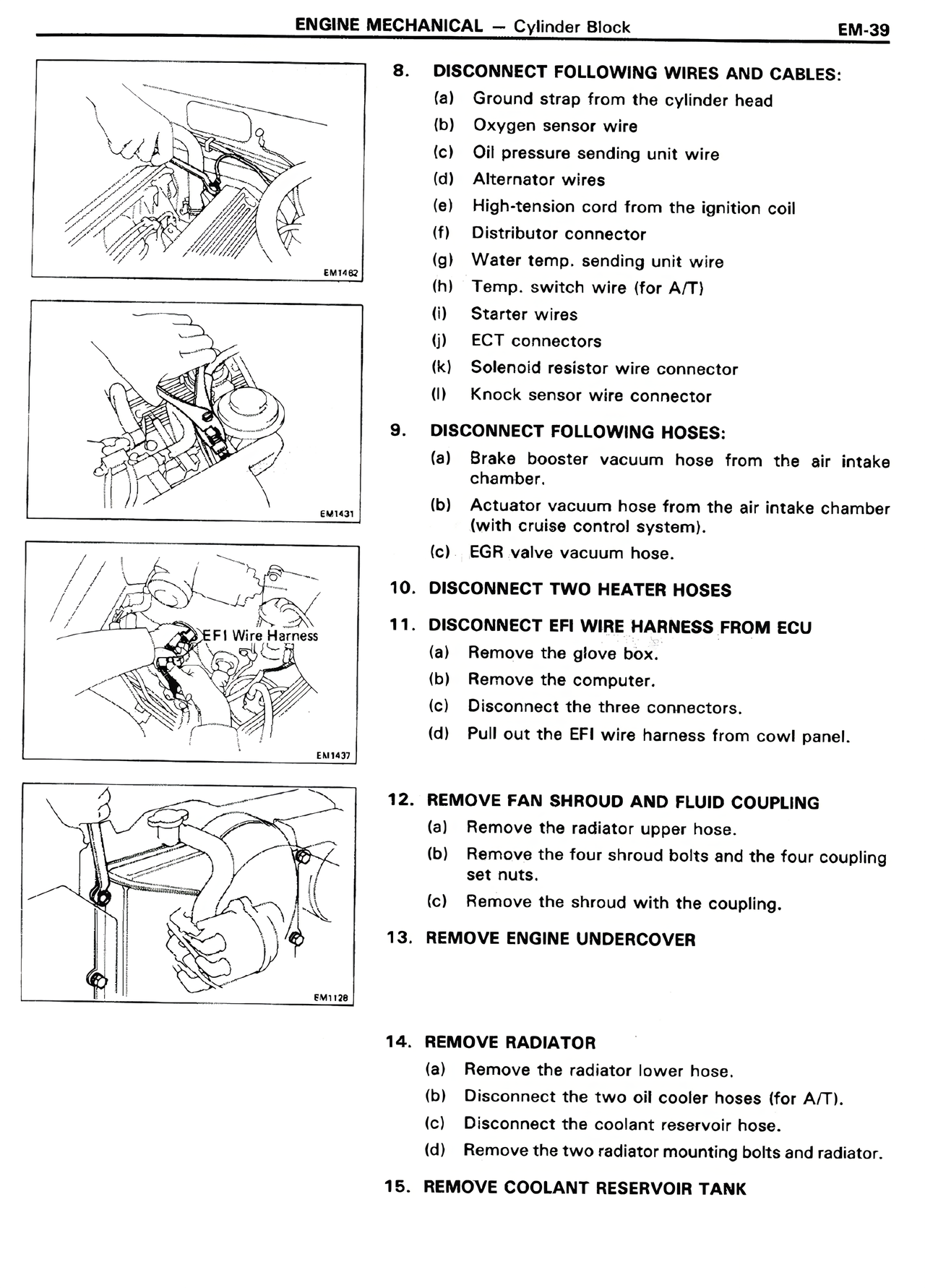

8. DISCONNECT FOLLOWING WIRES AND CABLES:
(a) Ground strap from the cylinder head
(b) Oxygen sensor wire
(c) Oil pressure sending unit wire
(d) Alternator wires
(e) High-tension cord from the ignition coil
(f) Distributor connector
(g) Water temp. sending unit wire
(h) Temp. switch wire (for A/T)
(i) Starter wires
(j) ECT connectors
(k) Solenoid resistor wire connector
(l) Knock sensor wire connector
9. DISCONNECT FOLLOWING HOSES:
(a) Brake booster vacuum hose from the air intake chamber.
(b) Actuator vacuum hose from the air intake chamber (with cruise control system).
(c) EGR valve vacuum hose.
10. DISCONNECT TWO HEATER HOSES
11. DISCONNECT EFI WIRE HARNESS FROM ECU
(a) Remove the glove box.
(b) Remove the computer.
(c) Disconnect the three connectors.
(d) Pull out the EFI wire harness from cowl panel.
12. REMOVE FAN SHROUD AND FLUID COUPLING
(a) Remove the radiator upper hose.
(b) Remove the four shroud bolts and the four coupling set nuts.
(c) Remove the shroud with the coupling.
13. REMOVE ENGINE UNDERCOVER
14. REMOVE RADIATOR
(a) Remove the radiator lower hose.
(b) Disconnect the two oil cooler hoses (for A/T).
(c) Disconnect the coolant reservoir hose.
(d) Remove the two radiator mounting bolts and radiator.
15. REMOVE COOLANT RESERVOIR TANK
