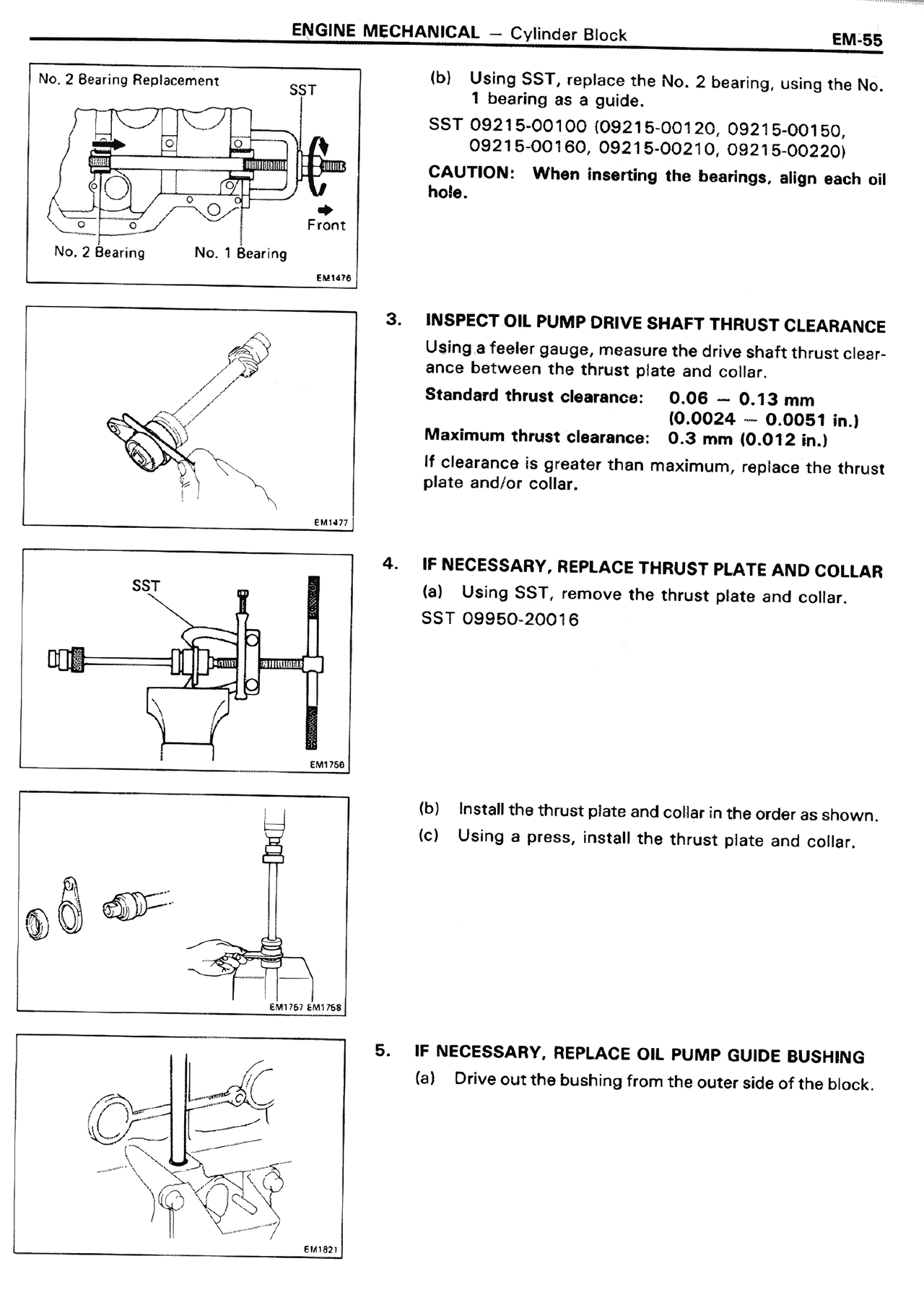

No. 2 Bearing Replacement SST Front No. 2 Bearing No. 1 Bearing EM1576 EM1477 SST EM1792 EM1793, EM1788 EM1821 (b) Using SST, replace the No. 2 bearing, using the No. 1 bearing as a guide. SST 09215-00100 (09216-00120, 09215-00150, 09216-00160, 09216-00210, 09215-00220) CAUTION: When inserting the bearings, align each oil hole. 3. INSPECT OIL PUMP DRIVE SHAFT THRUST CLEARANCE Using a feeler gauge, measure the drive shaft thrust clearance between the thrust plate and collar. Standard thrust clearance: 0.06 — 0.13 mm (0.0024 — 0.0051 in.) Maximum thrust clearance: 0.3 mm (0.012 in.) If clearance is greater than maximum, replace the thrust plate and/or collar. 4. IF NECESSARY, REPLACE THRUST PLATE AND COLLAR (a) Using SST, remove the thrust plate and collar. SST 09950-20016 (b) Install the thrust plate and collar in the order as shown. (c) Using a press, install the thrust plate and collar. 5. IF NECESSARY, REPLACE OIL PUMP GUIDE BUSHING (a) Drive out the bushing from the outer side of the block.
