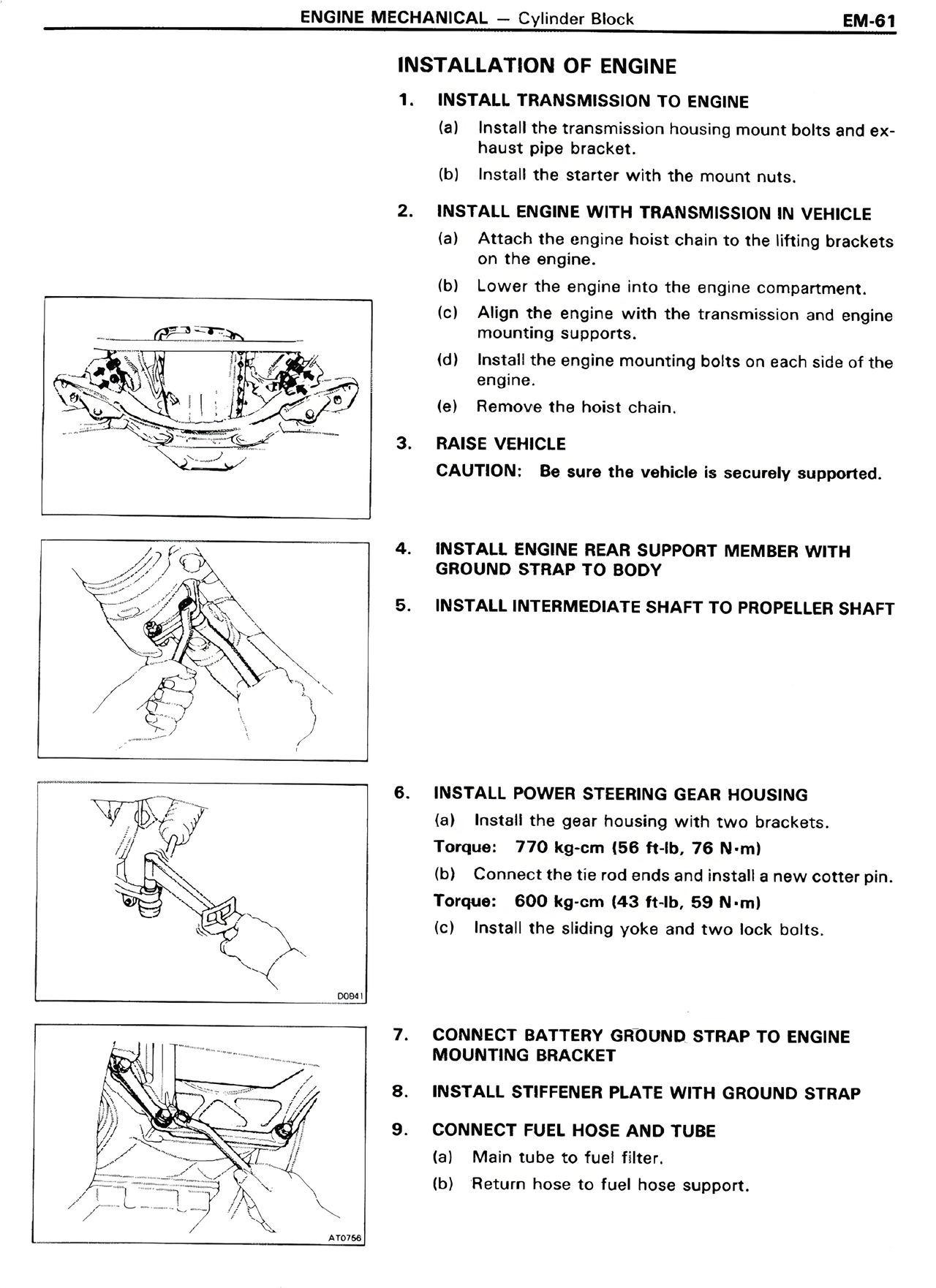

INSTALLATION OF ENGINE
1. INSTALL TRANSMISSION TO ENGINE
(a) Install the transmission housing mount bolts and exhaust pipe bracket.
(b) Install the starter with the mount nuts.
2. INSTALL ENGINE WITH TRANSMISSION IN VEHICLE
(a) Attach the engine hoist chain to the lifting brackets on the engine.
(b) Lower the engine into the engine compartment.
(c) Align the engine with the transmission and engine mounting supports.
(d) Install the engine mounting bolts on each side of the engine.
(e) Remove the hoist chain.
3. RAISE VEHICLE
CAUTION: Be sure the vehicle is securely supported.
4. INSTALL ENGINE REAR SUPPORT MEMBER WITH GROUND STRAP TO BODY
5. INSTALL INTERMEDIATE SHAFT TO PROPELLER SHAFT
6. INSTALL POWER STEERING GEAR HOUSING
(a) Install the gear housing with two brackets.
Torque: 770 kg-cm (56 ft-lb, 76 N·m)
(b) Connect the tie rod ends and install a new cotter pin.
Torque: 600 kg-cm (43 ft-lb, 59 N·m)
(c) Install the sliding yoke and two lock bolts.
7. CONNECT BATTERY GROUND STRAP TO ENGINE MOUNTING BRACKET
8. INSTALL STIFFENER PLATE WITH GROUND STRAP
9. CONNECT FUEL HOSE AND TUBE
(a) Main tube to fuel filter.
(b) Return hose to fuel hose support.
