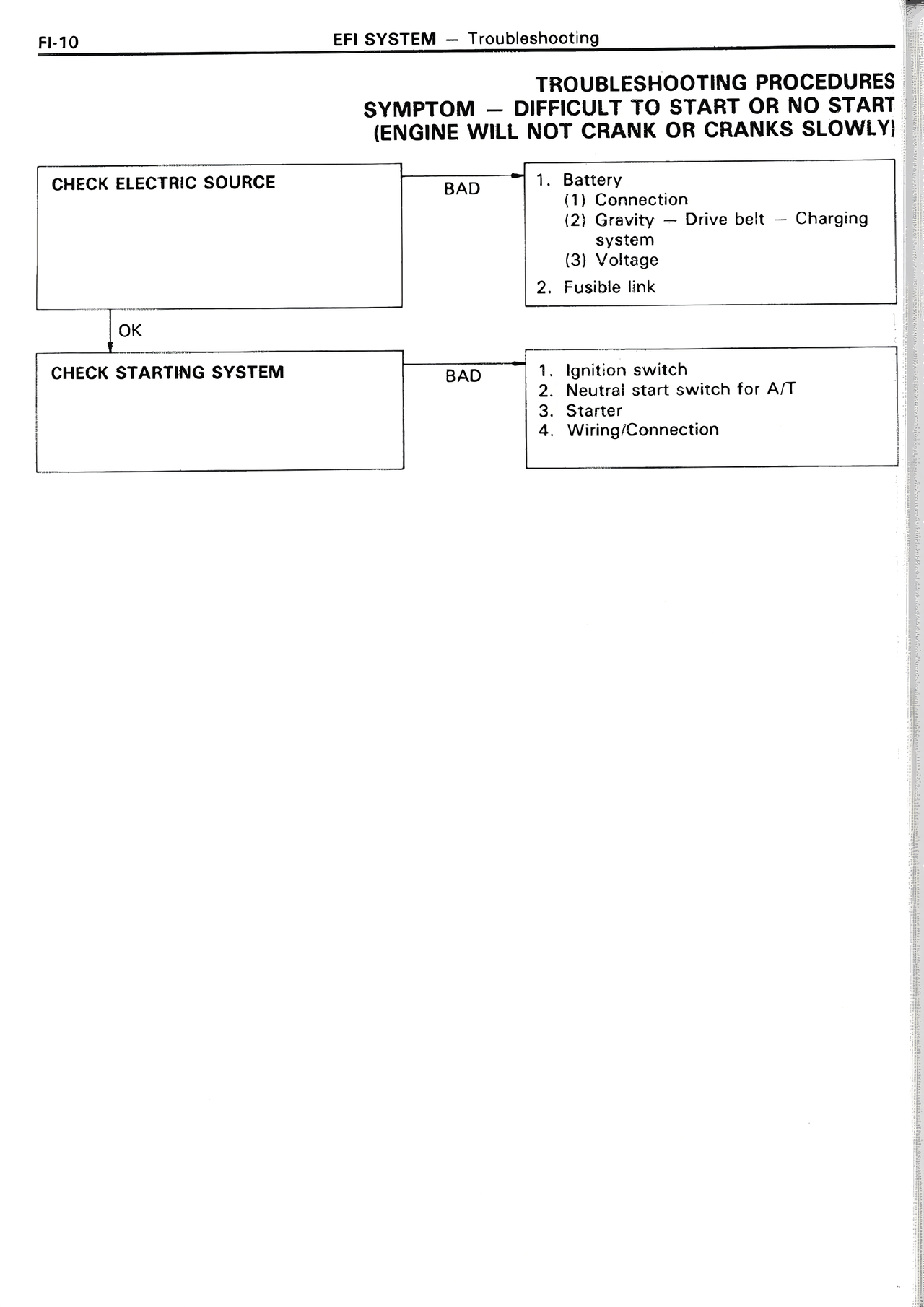

FI-10
EFI SYSTEM — Troubleshooting
TROUBLESHOOTING PROCEDURES
SYMPTOM — DIFFICULT TO START OR NO START
(ENGINE WILL NOT CRANK OR CRANKS SLOWLY)
CHECK ELECTRIC SOURCE
BAD
1. Battery
(1) Connection
(2) Gravity — Drive belt — Charging
system
(3) Voltage
2. Fusible link
OK
CHECK STARTING SYSTEM
BAD
1. Ignition switch
2. Neutral start switch for A/T
3. Starter
4. Wiring/Connection
