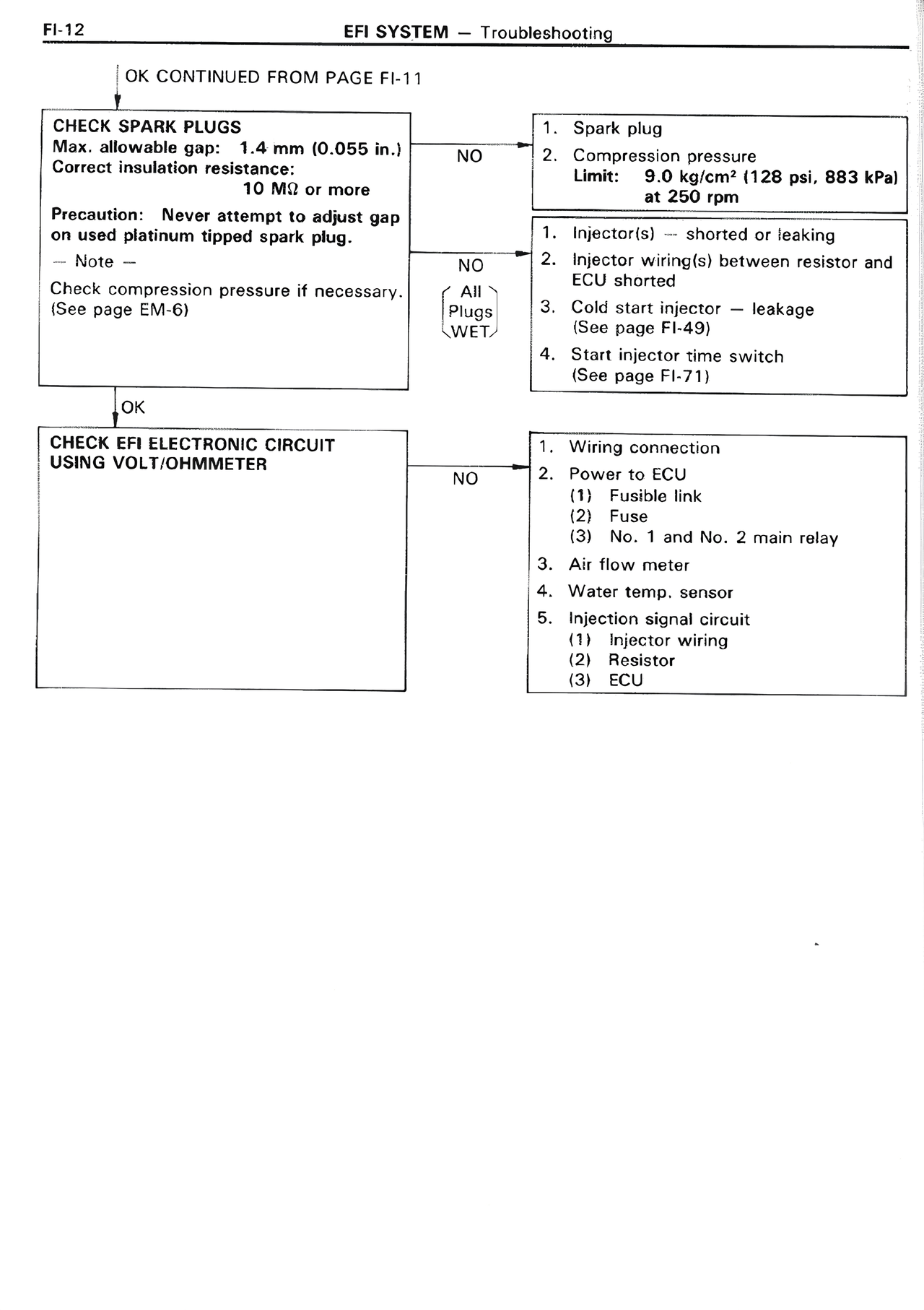

OK CONTINUED FROM PAGE FI-11
CHECK SPARK PLUGS
Max. allowable gap: 1.4 mm (0.055 in.)
Correct insulation resistance:
10 MΩ or more
Precaution: Never attempt to adjust gap
on used platinum tipped spark plug.
— Note —
Check compression pressure if necessary.
(See page EM-6)
NO → 1. Spark plug
2. Compression pressure
Limit: 9.0 kg/cm² (128 psi, 883 kPa)
at 250 rpm
NO → 1. Injector(s) — shorted or leaking
2. Injector wiring(s) between resistor and
ECU shorted
All 3. Cold start injector — leakage
Plugs (See page FI-49)
WET 4. Start injector time switch
(See page FI-71)
OK
↓
CHECK EFI ELECTRONIC CIRCUIT
USING VOLT/OHMMETER
NO → 1. Wiring connection
2. Power to ECU
(1) Fusible link
(2) Fuse
(3) No. 1 and No. 2 main relay
3. Air flow meter
4. Water temp. sensor
5. Injection signal circuit
(1) Injector wiring
(2) Resistor
(3) ECU
