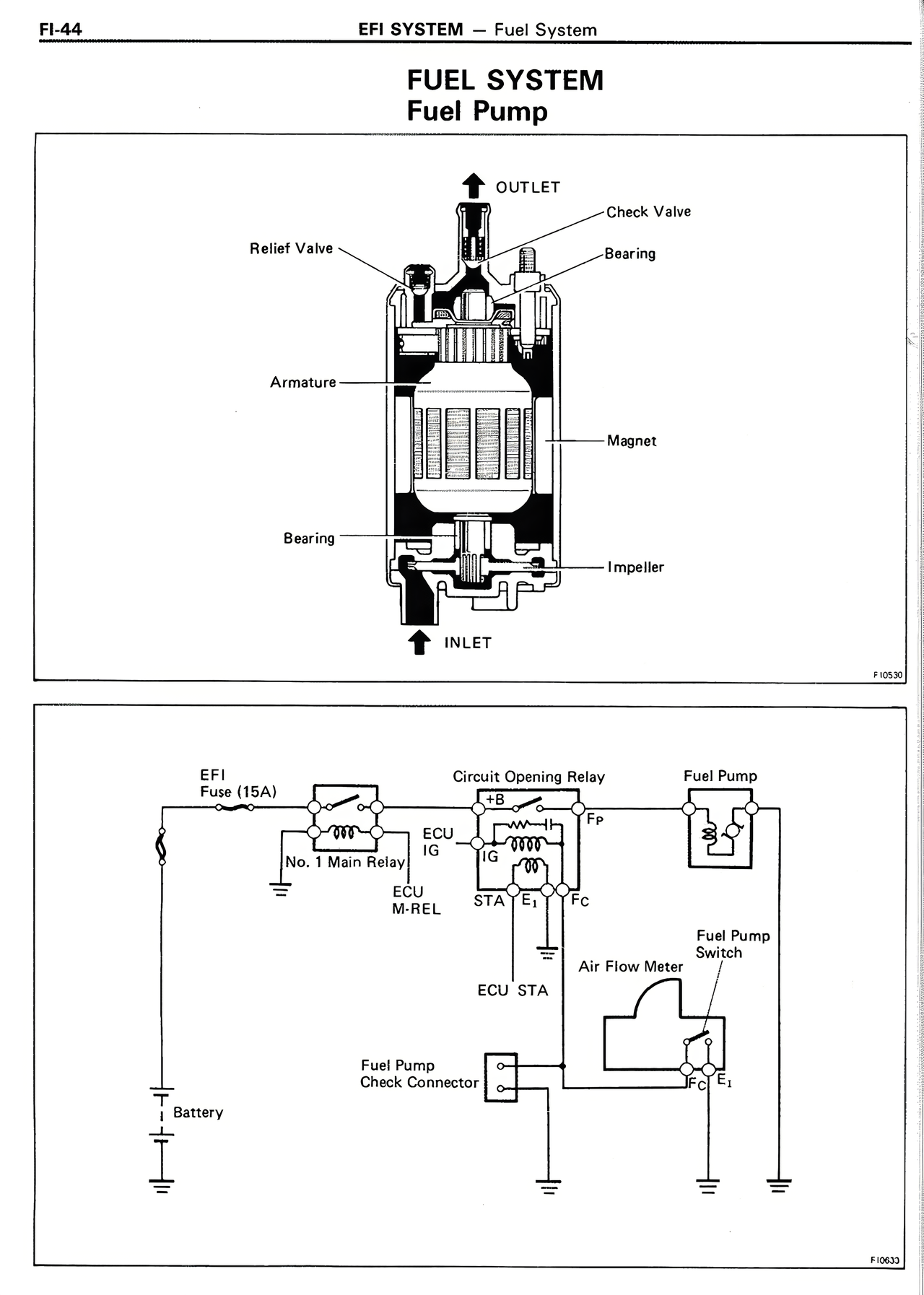

EFI System page 44

FUEL SYSTEM Fuel Pump OUTLET Check Valve Relief Valve Bearing Armature Magnet Bearing Impeller INLET EFI Fuse (15A) No. 1 Main Relay ECU IG Circuit Opening Relay +B IG M ECU M-REL STA E1 Fc Fuel Pump FP ECU STA Air Flow Meter Fuel Pump Switch Fuel Pump Check Connector E1 FP Battery
