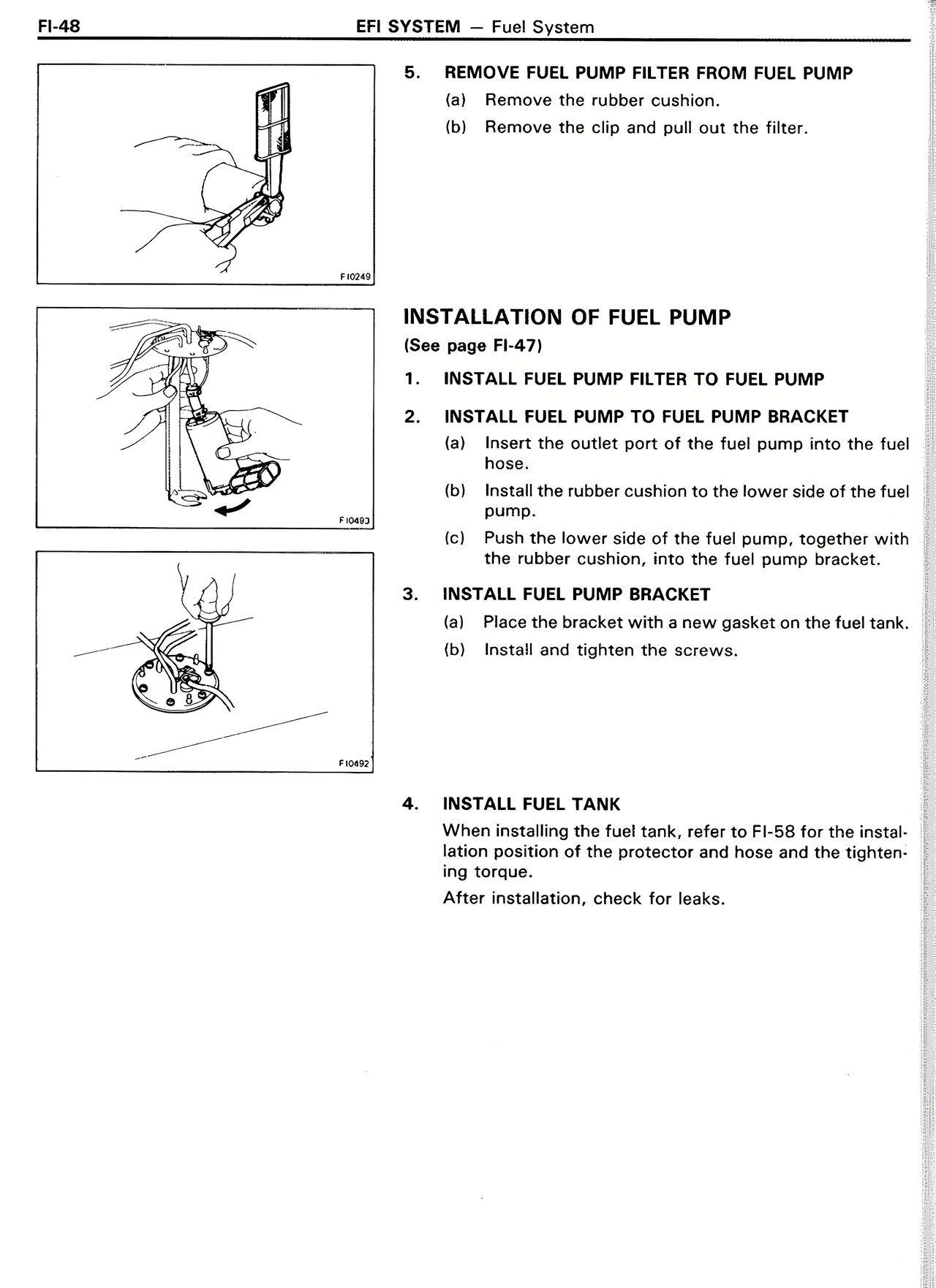

5. REMOVE FUEL PUMP FILTER FROM FUEL PUMP (a) Remove the rubber cushion. (b) Remove the clip and pull out the filter. INSTALLATION OF FUEL PUMP (See page FI-47) 1. INSTALL FUEL PUMP FILTER TO FUEL PUMP 2. INSTALL FUEL PUMP TO FUEL PUMP BRACKET (a) Insert the outlet port of the fuel pump into the fuel hose. (b) Install the rubber cushion to the lower side of the fuel pump. (c) Push the lower side of the fuel pump, together with the rubber cushion, into the fuel pump bracket. 3. INSTALL FUEL PUMP BRACKET (a) Place the bracket with a new gasket on the fuel tank. (b) Install and tighten the screws. 4. INSTALL FUEL TANK When installing the fuel tank, refer to FI-58 for the installation position of the protector and hose and the tightening torque. After installation, check for leaks.
