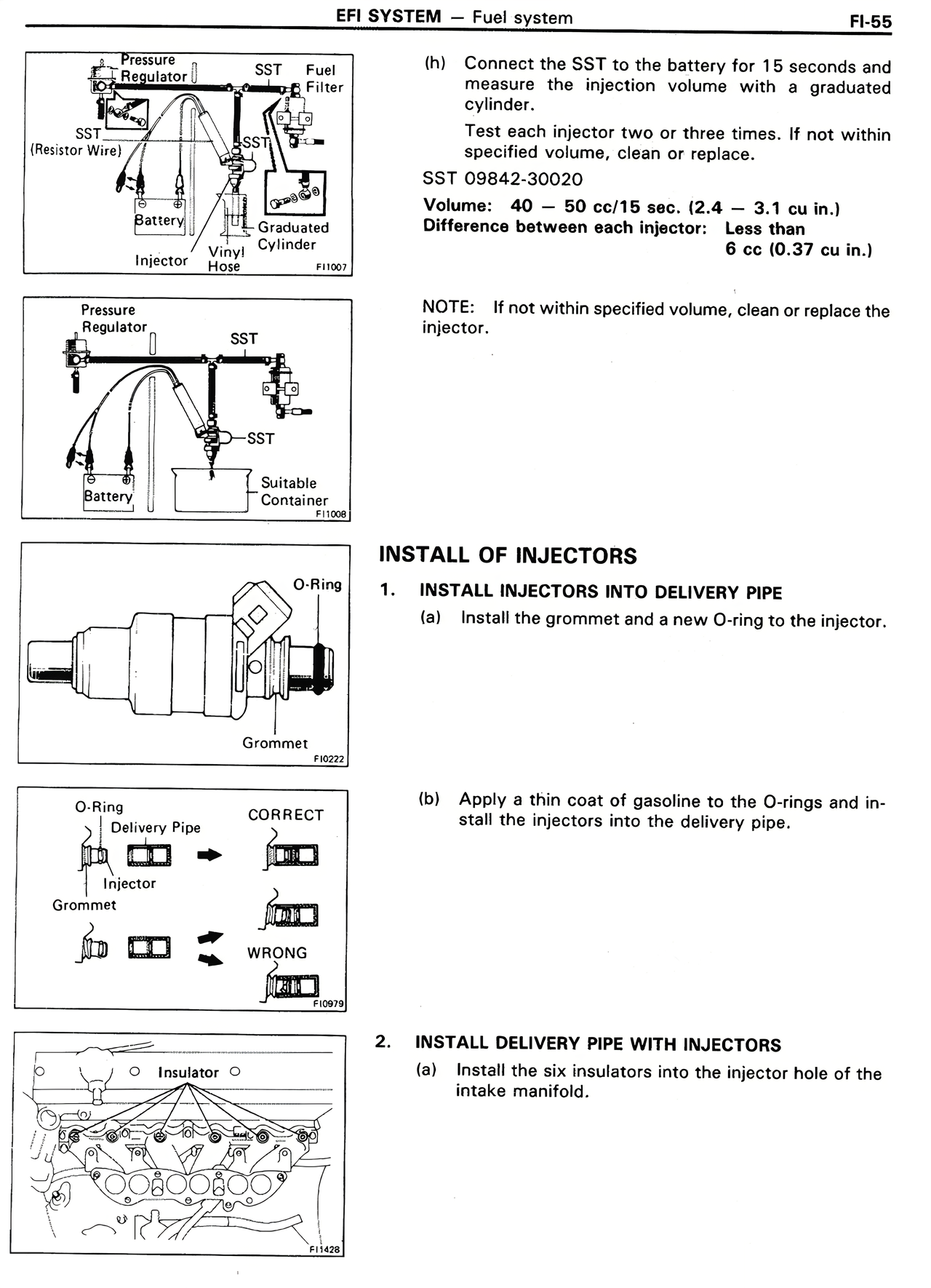

EFI SYSTEM — Fuel system
(h) Connect the SST to the battery for 15 seconds and measure the injection volume with a graduated cylinder.
Test each injector two or three times. If not within specified volume, clean or replace.
SST 09842-30020
Volume: 40 — 50 cc/15 sec. (2.4 — 3.1 cu in.)
Difference between each injector: Less than 6 cc (0.37 cu in.)
NOTE: If not within specified volume, clean or replace the injector.
INSTALL OF INJECTORS
1. INSTALL INJECTORS INTO DELIVERY PIPE
(a) Install the grommet and a new O-ring to the injector.
(b) Apply a thin coat of gasoline to the O-rings and install the injectors into the delivery pipe.
2. INSTALL DELIVERY PIPE WITH INJECTORS
(a) Install the six insulators into the injector hole of the intake manifold.
