Introduction page 8

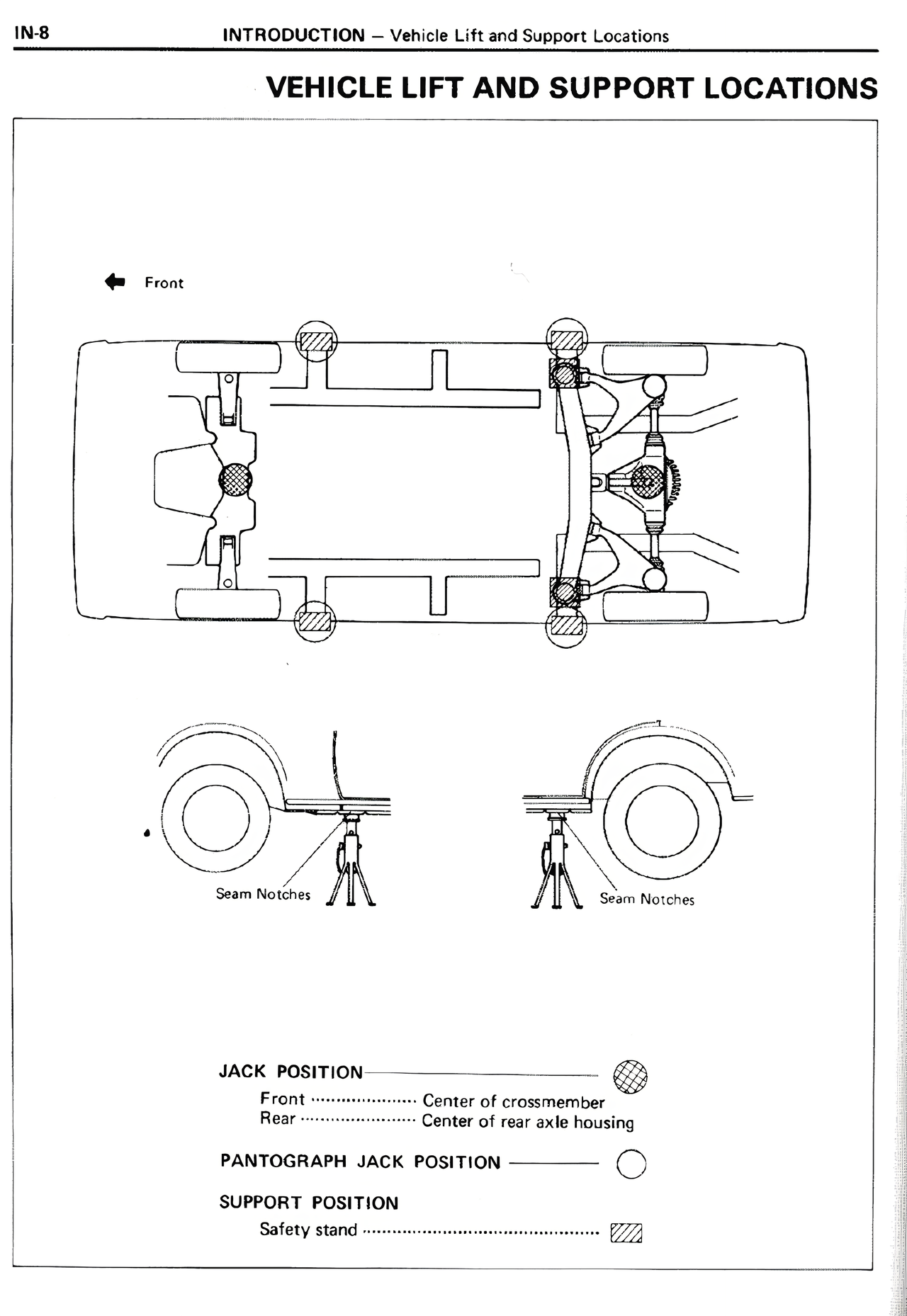

VEHICLE LIFT AND SUPPORT LOCATIONS Front Seam Notches Seam Notches JACK POSITION Front ..................... Center of crossmember Rear ........................ Center of rear axle housing PANTOGRAPH JACK POSITION —— SUPPORT POSITION Safety stand ............................................
