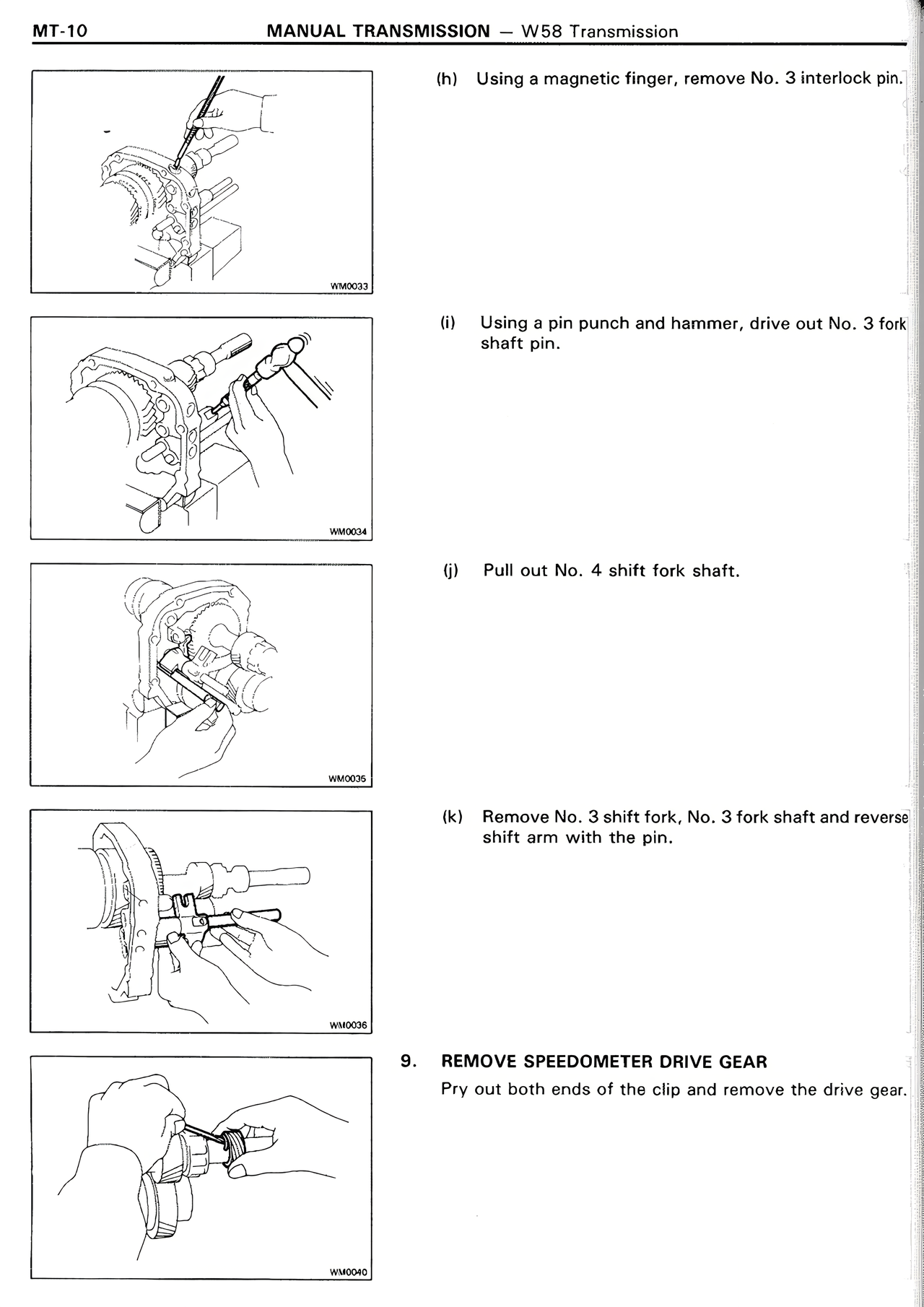

MT-10 MANUAL TRANSMISSION — W58 Transmission
(h) Using a magnetic finger, remove No. 3 interlock pin.
(i) Using a pin punch and hammer, drive out No. 3 fork shaft pin.
(j) Pull out No. 4 shift fork shaft.
(k) Remove No. 3 shift fork, No. 3 fork shaft and reverse shift arm with the pin.
9. REMOVE SPEEDOMETER DRIVE GEAR
Pry out both ends of the clip and remove the drive gear.
