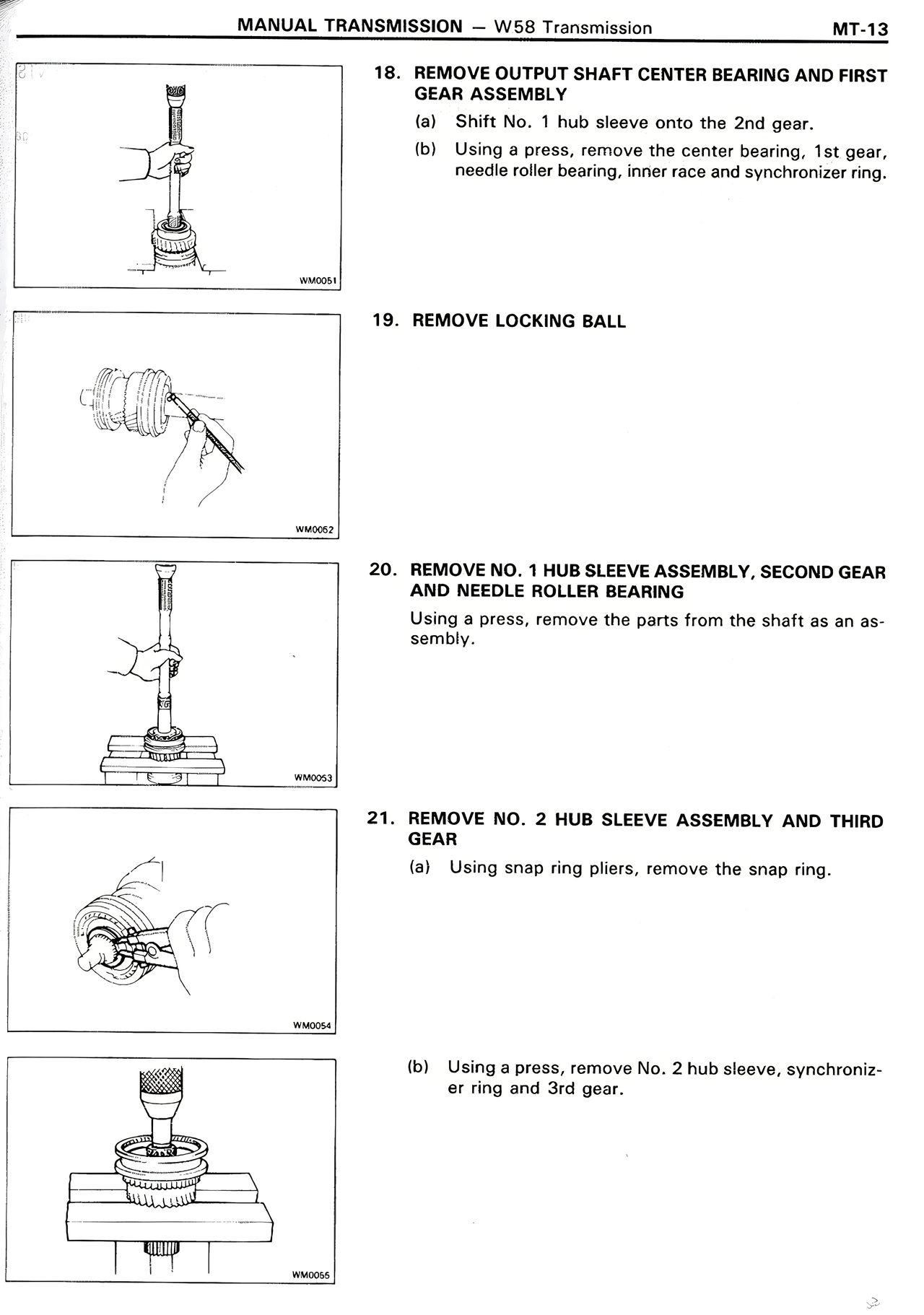

18. REMOVE OUTPUT SHAFT CENTER BEARING AND FIRST GEAR ASSEMBLY
(a) Shift No. 1 hub sleeve onto the 2nd gear.
(b) Using a press, remove the center bearing, 1st gear, needle roller bearing, inner race and synchronizer ring.
19. REMOVE LOCKING BALL
20. REMOVE NO. 1 HUB SLEEVE ASSEMBLY, SECOND GEAR AND NEEDLE ROLLER BEARING
Using a press, remove the parts from the shaft as an assembly.
21. REMOVE NO. 2 HUB SLEEVE ASSEMBLY AND THIRD GEAR
(a) Using snap ring pliers, remove the snap ring.
(b) Using a press, remove No. 2 hub sleeve, synchronizer ring and 3rd gear.
