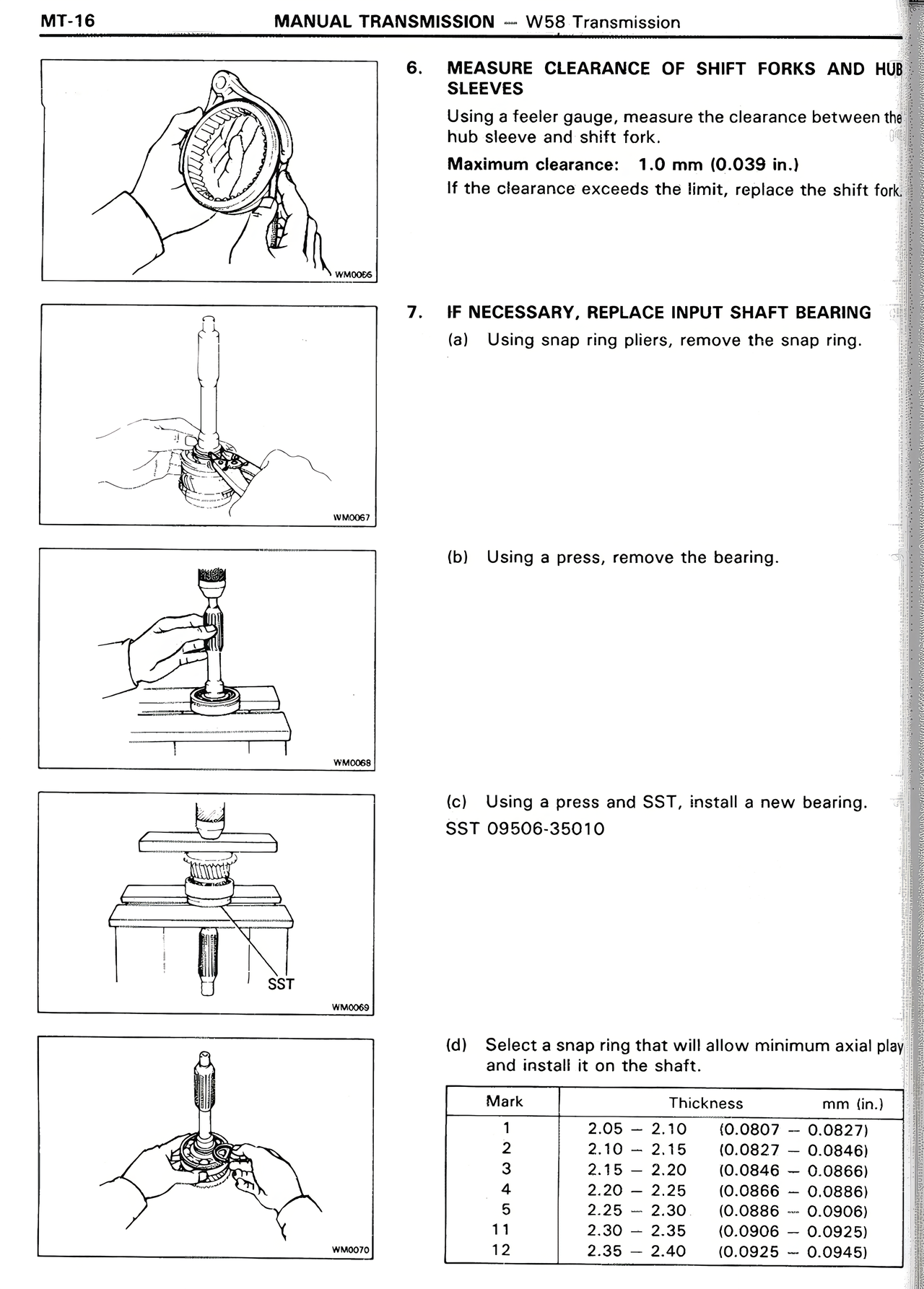

6. MEASURE CLEARANCE OF SHIFT FORKS AND HUB SLEEVES Using a feeler gauge, measure the clearance between the hub sleeve and shift fork. Maximum clearance: 1.0 mm (0.039 in.) If the clearance exceeds the limit, replace the shift fork. 7. IF NECESSARY, REPLACE INPUT SHAFT BEARING (a) Using snap ring pliers, remove the snap ring. (b) Using a press, remove the bearing. (c) Using a press and SST, install a new bearing. SST 09506-35010 (d) Select a snap ring that will allow minimum axial play and install it on the shaft. Mark Thickness mm (in.) 1 2.05 — 2.10 (0.0807 — 0.0827) 2 2.10 — 2.15 (0.0827 — 0.0846) 3 2.15 — 2.20 (0.0846 — 0.0866) 4 2.20 — 2.25 (0.0866 — 0.0886) 5 2.25 — 2.30 (0.0886 — 0.0906) 11 2.30 — 2.35 (0.0906 — 0.0925) 12 2.35 — 2.40 (0.0925 — 0.0945)
