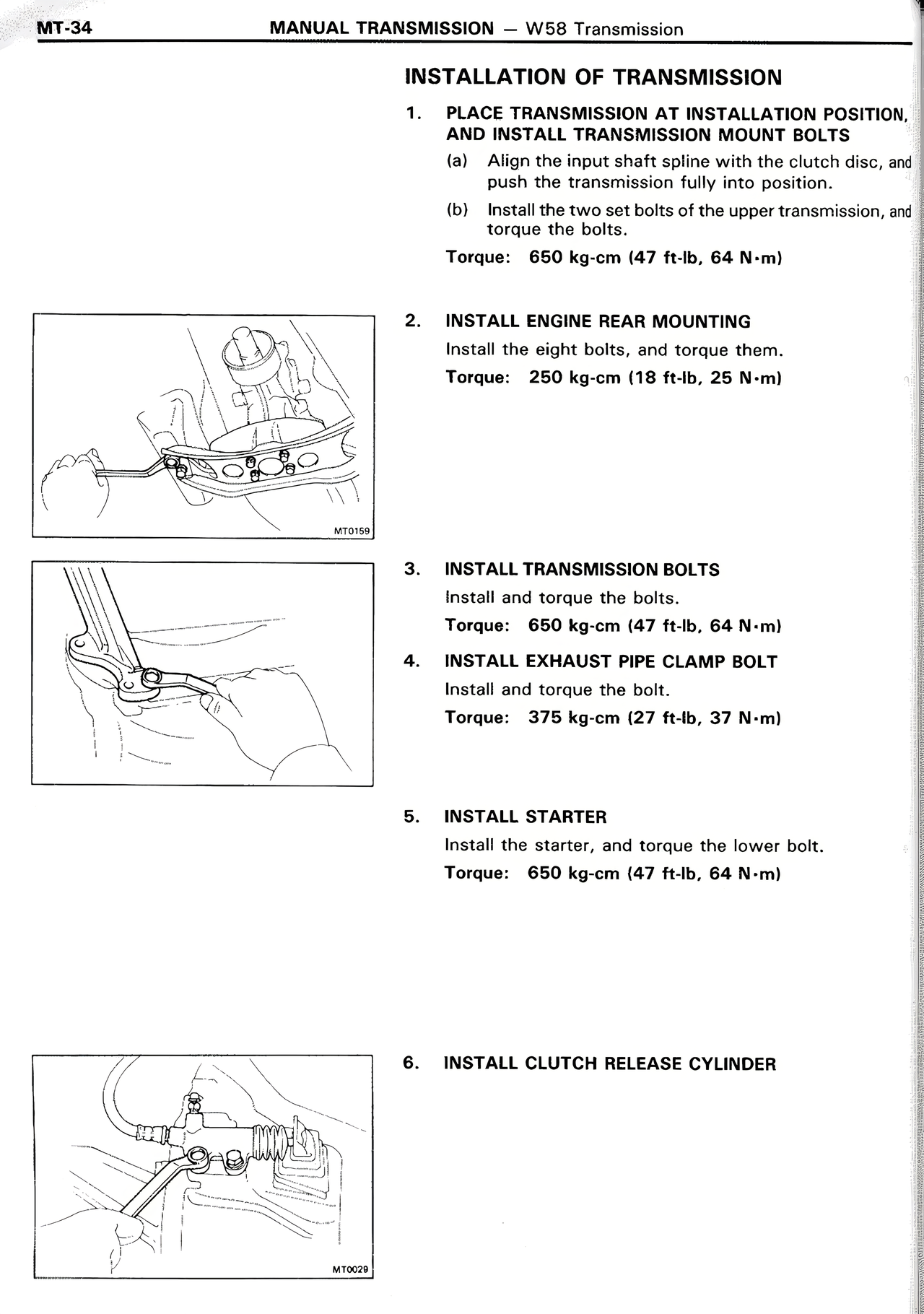

INSTALLATION OF TRANSMISSION 1. PLACE TRANSMISSION AT INSTALLATION POSITION, AND INSTALL TRANSMISSION MOUNT BOLTS (a) Align the input shaft spline with the clutch disc, and push the transmission fully into position. (b) Install the two set bolts of the upper transmission, and torque the bolts. Torque: 650 kg-cm (47 ft-lb, 64 N·m) 2. INSTALL ENGINE REAR MOUNTING Install the eight bolts, and torque them. Torque: 250 kg-cm (18 ft-lb, 25 N·m) 3. INSTALL TRANSMISSION BOLTS Install and torque the bolts. Torque: 650 kg-cm (47 ft-lb, 64 N·m) 4. INSTALL EXHAUST PIPE CLAMP BOLT Install and torque the bolt. Torque: 375 kg-cm (27 ft-lb, 37 N·m) 5. INSTALL STARTER Install the starter, and torque the lower bolt. Torque: 650 kg-cm (47 ft-lb, 64 N·m) 6. INSTALL CLUTCH RELEASE CYLINDER
