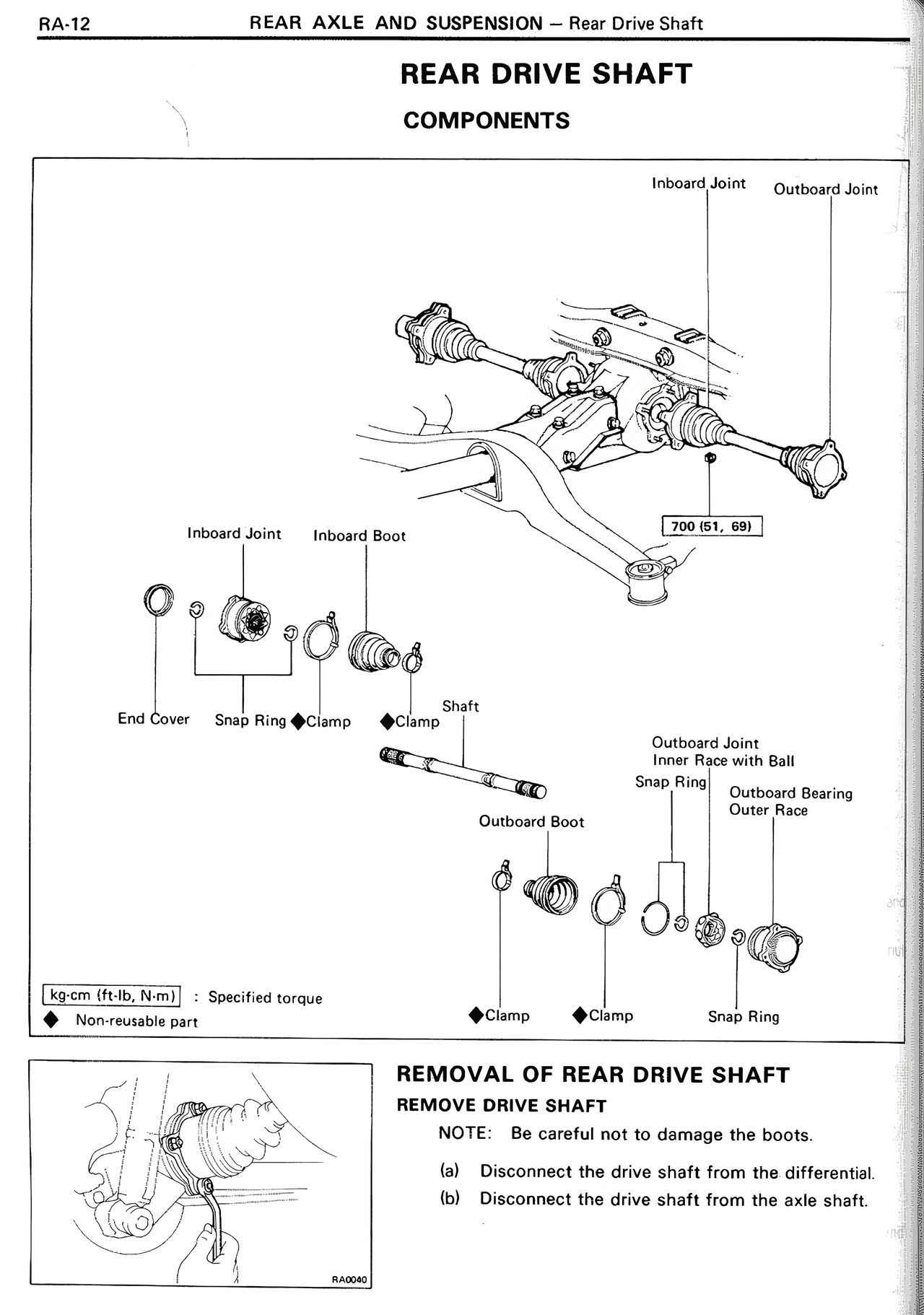

REAR DRIVE SHAFT
COMPONENTS
Inboard Joint
Outboard Joint
Inboard Joint
Inboard Boot
700 (51, 69)
End Cover
Snap Ring
Clamp
Clamp
Shaft
Outboard Joint
Inner Race with Ball
Snap Ring
Outboard Bearing
Outer Race
Outboard Boot
kg·cm (ft·lb, N·m) : Specified torque
◆ Non-reusable part
◆Clamp
◆Clamp
Snap Ring
REMOVAL OF REAR DRIVE SHAFT
REMOVE DRIVE SHAFT
NOTE: Be careful not to damage the boots.
(a) Disconnect the drive shaft from the differential.
(b) Disconnect the drive shaft from the axle shaft.
RA0040
