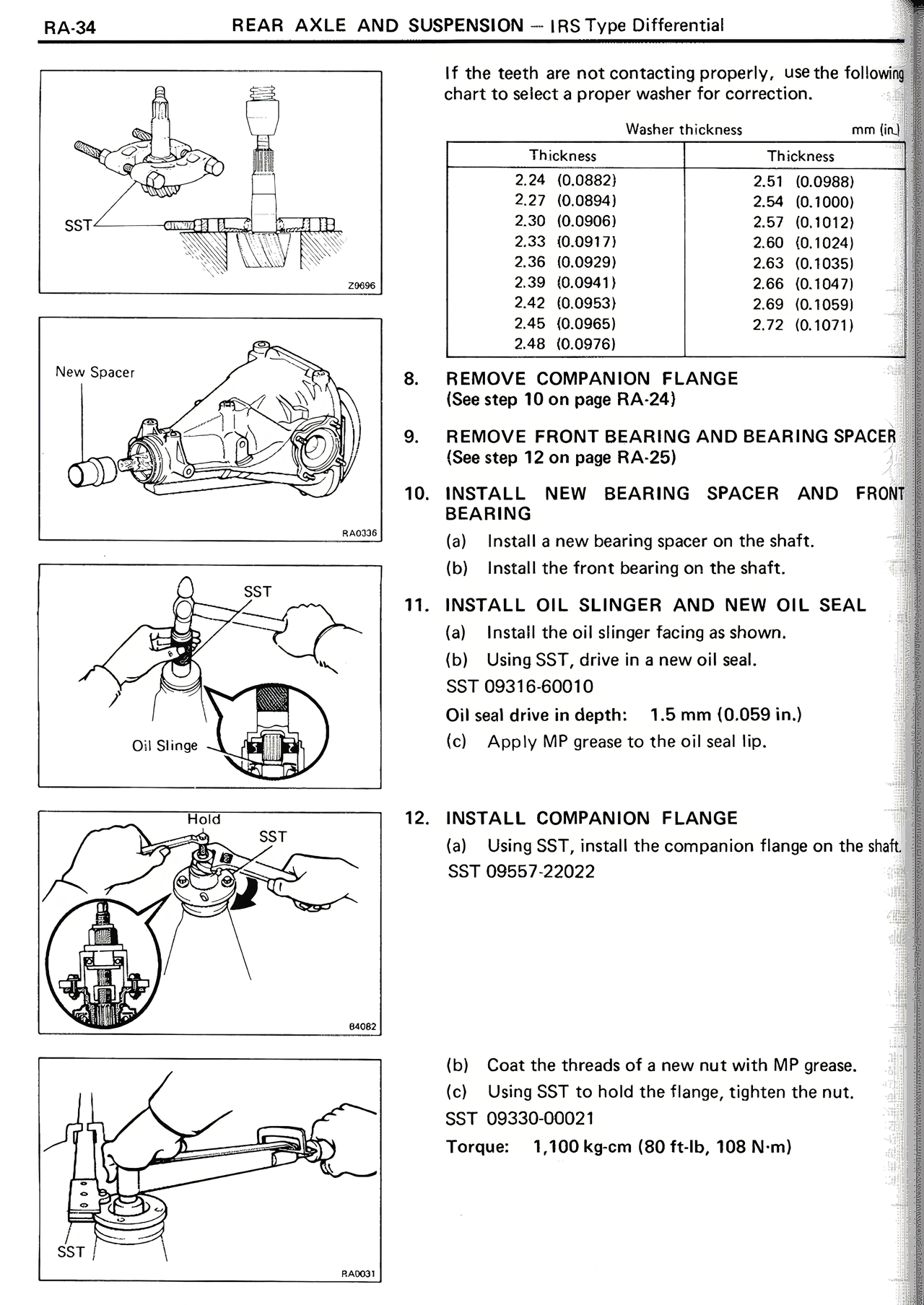

RA-34 REAR AXLE AND SUSPENSION — IRS Type Differential If the teeth are not contacting properly, use the following chart to select a proper washer for correction. Washer thickness mm (in.) Thickness Thickness 2.24 (0.0882) 2.51 (0.0988) 2.27 (0.0894) 2.54 (0.1000) 2.30 (0.0906) 2.57 (0.1012) 2.33 (0.0917) 2.60 (0.1024) 2.36 (0.0929) 2.63 (0.1035) 2.39 (0.0941) 2.66 (0.1047) 2.42 (0.0953) 2.69 (0.1059) 2.45 (0.0965) 2.72 (0.1071) 2.48 (0.0976) 8. REMOVE COMPANION FLANGE (See step 10 on page RA-24) 9. REMOVE FRONT BEARING AND BEARING SPACER (See step 12 on page RA-25) 10. INSTALL NEW BEARING SPACER AND FRONT BEARING (a) Install a new bearing spacer on the shaft. (b) Install the front bearing on the shaft. 11. INSTALL OIL SLINGER AND NEW OIL SEAL (a) Install the oil slinger facing as shown. (b) Using SST, drive in a new oil seal. SST 09316-60010 Oil seal drive in depth: 1.5 mm (0.059 in.) (c) Apply MP grease to the oil seal lip. 12. INSTALL COMPANION FLANGE (a) Using SST, install the companion flange on the shaft. SST 09557-22022 (b) Coat the threads of a new nut with MP grease. (c) Using SST to hold the flange, tighten the nut. SST 09330-00021 Torque: 1,100 kg·cm (80 ft·lb, 108 N·m)
