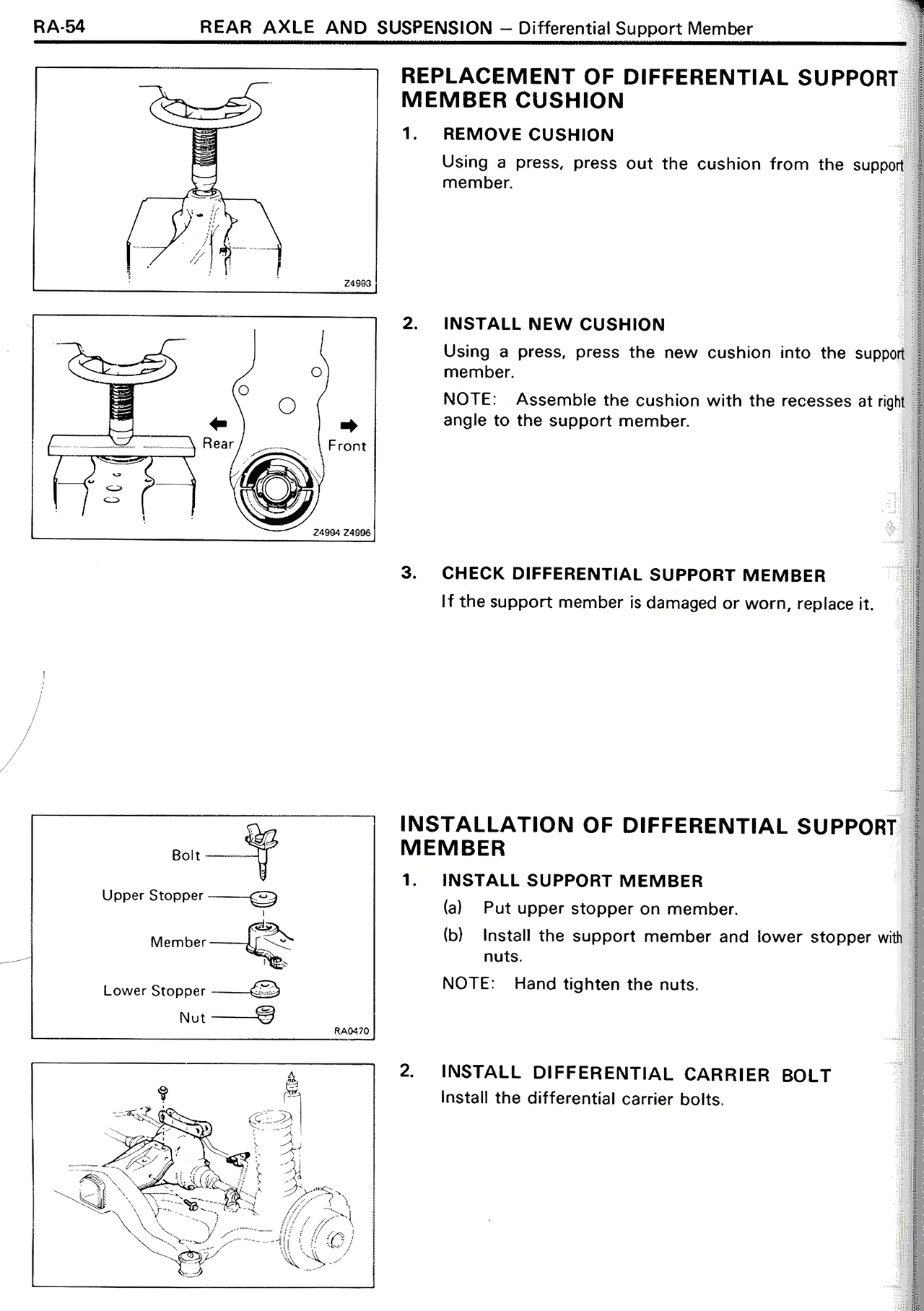

RA-54 REAR AXLE AND SUSPENSION - Differential Support Member
REPLACEMENT OF DIFFERENTIAL SUPPORT MEMBER CUSHION
1. REMOVE CUSHION
Using a press, press out the cushion from the support member.
2. INSTALL NEW CUSHION
Using a press, press the new cushion into the support member.
NOTE: Assemble the cushion with the recesses at right angle to the support member.
3. CHECK DIFFERENTIAL SUPPORT MEMBER
If the support member is damaged or worn, replace it.
INSTALLATION OF DIFFERENTIAL SUPPORT MEMBER
1. INSTALL SUPPORT MEMBER
(a) Put upper stopper on member.
(b) Install the support member and lower stopper with nuts.
NOTE: Hand tighten the nuts.
2. INSTALL DIFFERENTIAL CARRIER BOLT
Install the differential carrier bolts.
Bolt
Upper Stopper
Member
Lower Stopper
Nut
