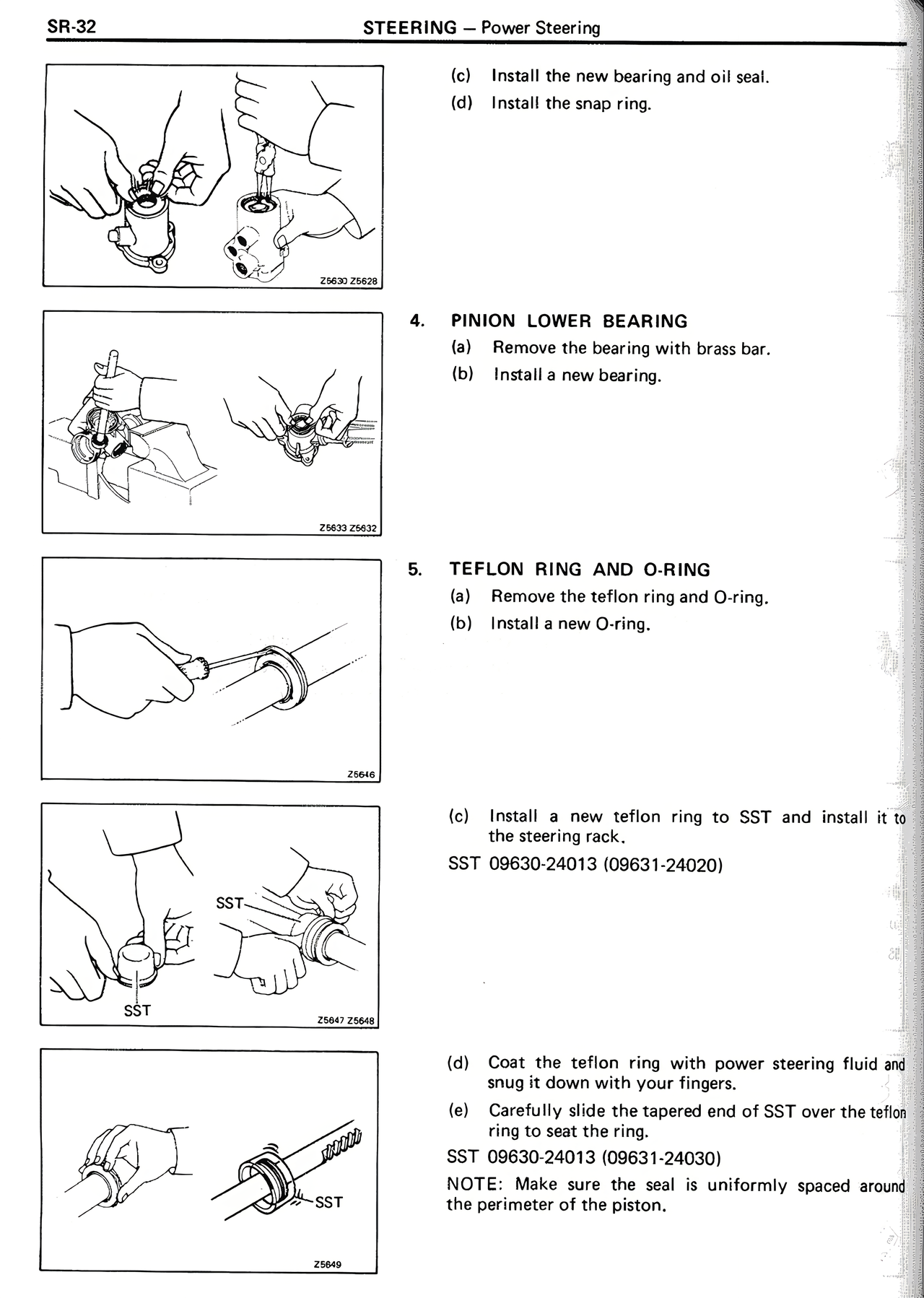

SR-32 STEERING — Power Steering
(c) Install the new bearing and oil seal.
(d) Install the snap ring.
4. PINION LOWER BEARING
(a) Remove the bearing with brass bar.
(b) Install a new bearing.
5. TEFLON RING AND O-RING
(a) Remove the teflon ring and O-ring.
(b) Install a new O-ring.
(c) Install a new teflon ring to SST and install it to the steering rack.
SST 09630-24013 (09631-24020)
(d) Coat the teflon ring with power steering fluid and snug it down with your fingers.
(e) Carefully slide the tapered end of SST over the teflon ring to seat the ring.
SST 09630-24013 (09631-24030)
NOTE: Make sure the seal is uniformly spaced around the perimeter of the piston.
