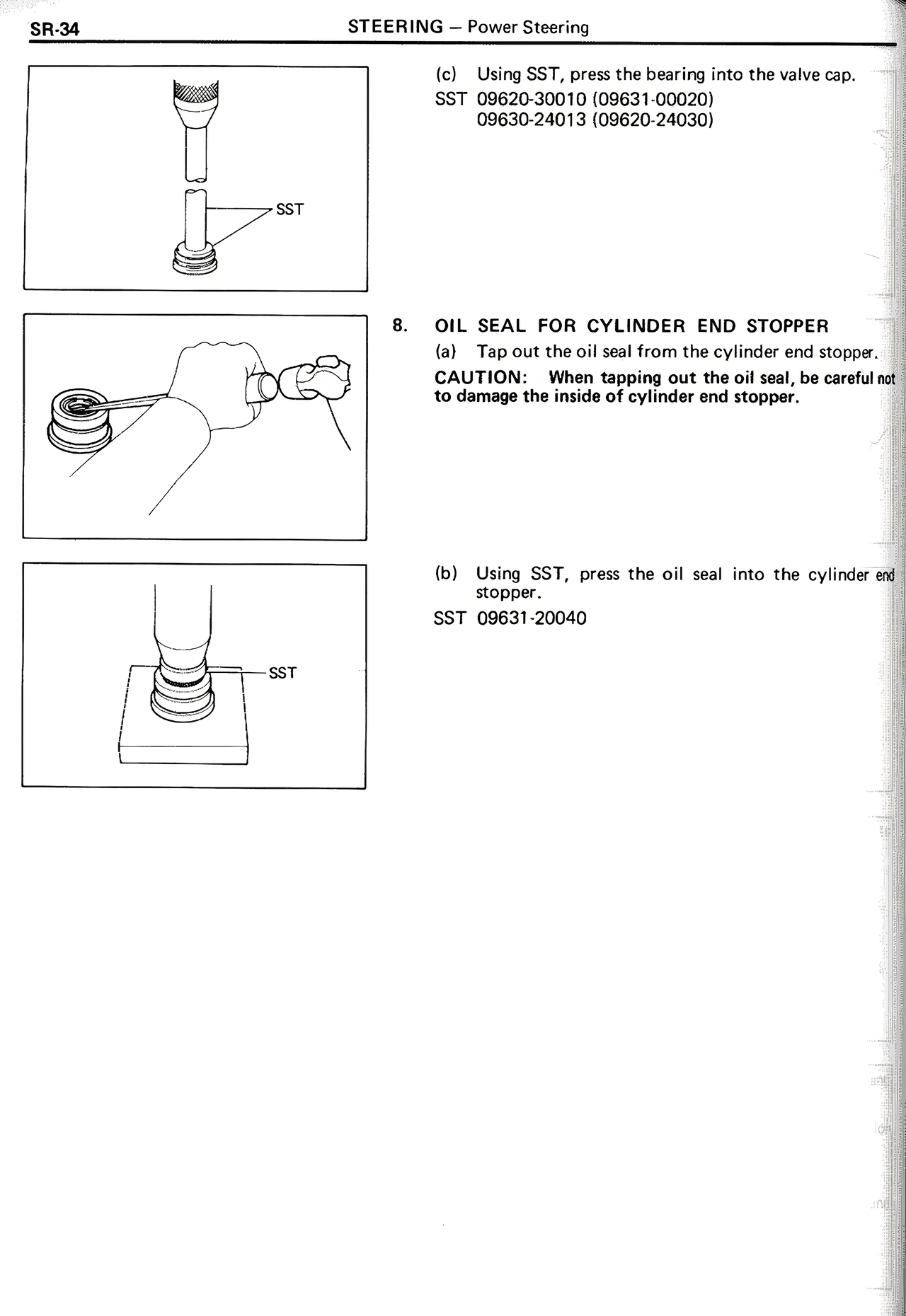

SR-34
STEERING — Power Steering
(c) Using SST, press the bearing into the valve cap.
SST 09620-30010 (09631 00020)
09630-24013 (09620-24030)
SST
8. OIL SEAL FOR CYLINDER END STOPPER
(a) Tap out the oil seal from the cylinder end stopper.
CAUTION: When tapping out the oil seal, be careful not
to damage the inside of cylinder end stopper.
(b) Using SST, press the oil seal into the cylinder end
stopper.
SST 09631-20040
SST
