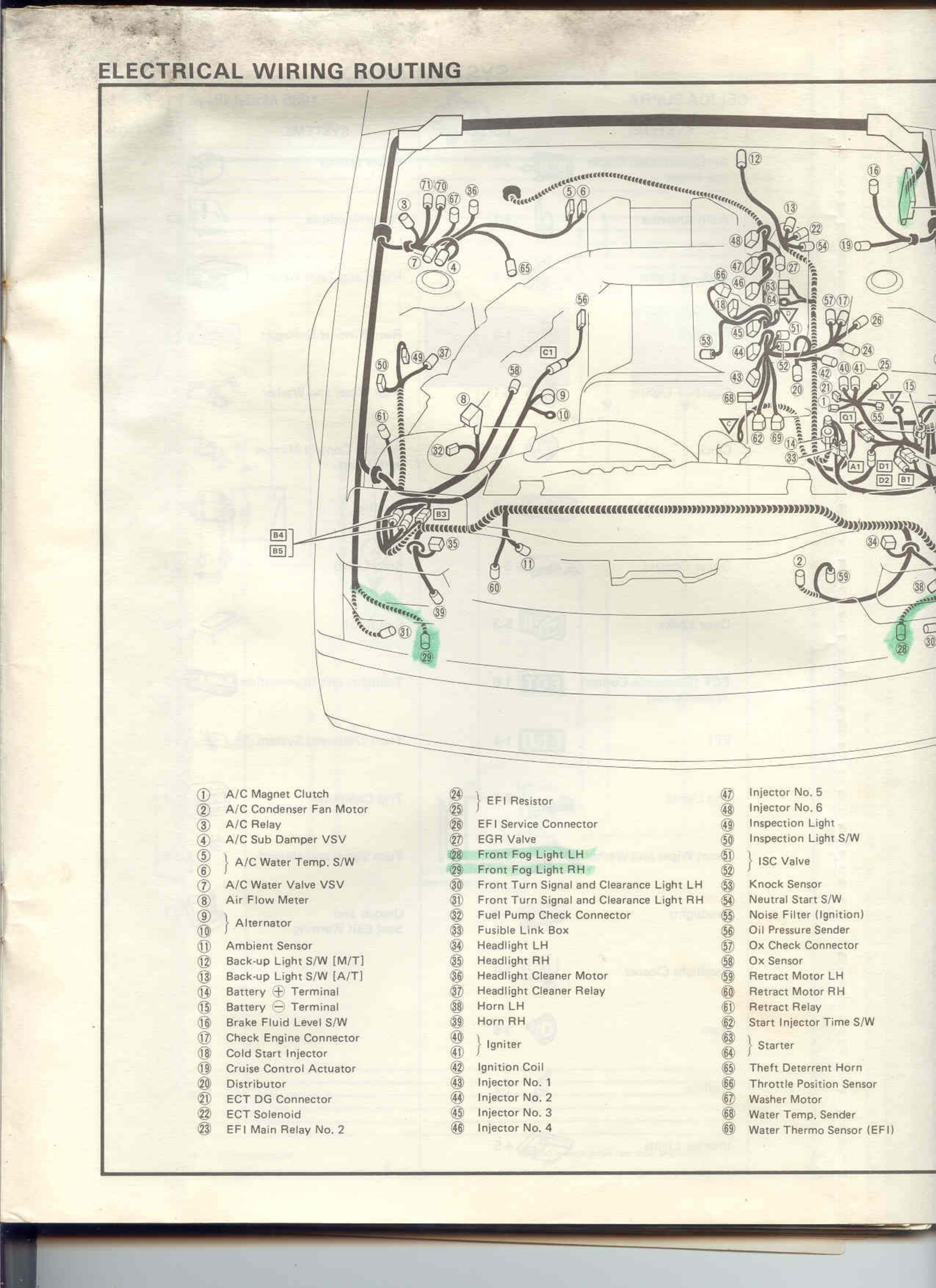

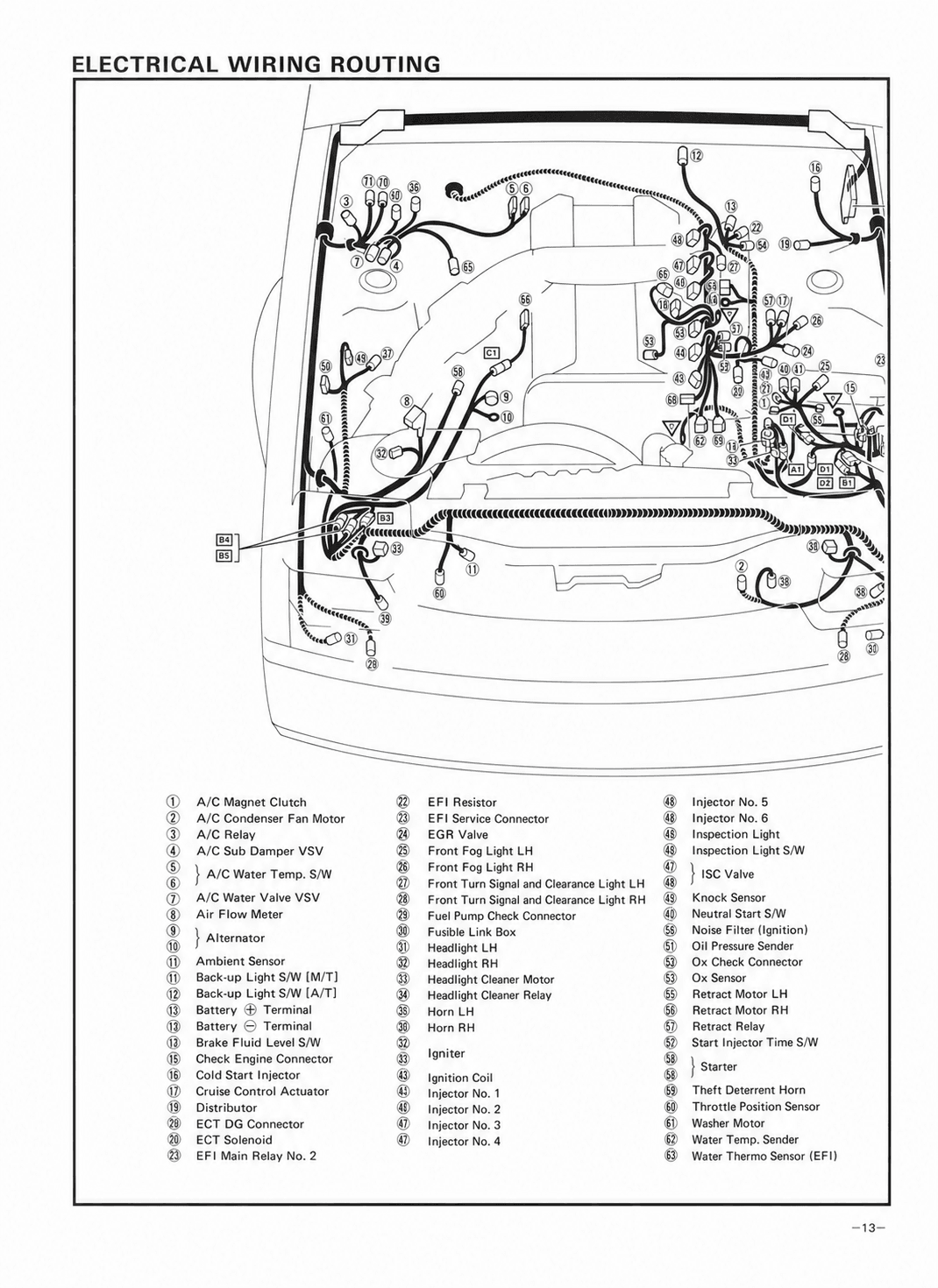

ELECTRICAL WIRING ROUTING ① A/C Magnet Clutch ② A/C Condenser Fan Motor ③ A/C Relay ④ A/C Sub Damper VSV ⑤ } A/C Water Temp. S/W ⑥ A/C Water Valve VSV ⑦ Air Flow Meter ⑧ } Alternator ⑨ ⑩ ⑪ Ambient Sensor ⑫ Back-up Light S/W [M/T] ⑬ Back-up Light S/W [A/T] ⑭ Battery ＋ Terminal ⑮ Battery － Terminal ⑯ Brake Fluid Level S/W ⑰ Check Engine Connector ⑱ Cold Start Injector ⑲ Cruise Control Actuator ⑳ Distributor ㉑ ECT DG Connector ㉒ ECT Solenoid ㉓ EFI Main Relay No. 2 ㉔ } EFI Resistor ㉕ ㉖ EFI Service Connector ㉗ EGR Valve ㉘ Front Fog Light LH ㉙ Front Fog Light RH ㉚ Front Turn Signal and Clearance Light LH ㉛ Front Turn Signal and Clearance Light RH ㉜ Fuel Pump Check Connector ㉝ Fusible Link Box ㉞ Headlight LH ㉟ Headlight RH ㊱ Headlight Cleaner Motor ㊲ Headlight Cleaner Relay ㊳ Horn LH ㊴ Horn RH ㊵ } Igniter ㊶ ㊷ Ignition Coil ㊸ Injector No. 1 ㊹ Injector No. 2 ㊺ Injector No. 3 ㊻ Injector No. 4 ㊼ Injector No. 5 ㊽ Injector No. 6 ㊾ Inspection Light ㊿ Inspection Light S/W ⑤① } ISC Valve ⑤② ⑤③ Knock Sensor ⑤④ Neutral Start S/W ⑤⑤ Noise Filter (Ignition) ⑤⑥ Oil Pressure Sender ⑤⑦ Ox Check Connector ⑤⑧ Ox Sensor ⑤⑨ Retract Motor LH ⑥⓪ Retract Motor RH ⑥① Retract Relay ⑥② Start Injector Time S/W ⑥③ } Starter ⑥④ ⑥⑤ Theft Deterrent Horn ⑥⑥ Throttle Position Sensor ⑥⑦ Washer Motor ⑥⑧ Water Temp. Sender ⑥⑨ Water Thermo Sensor (EFI)
