ort Pin)

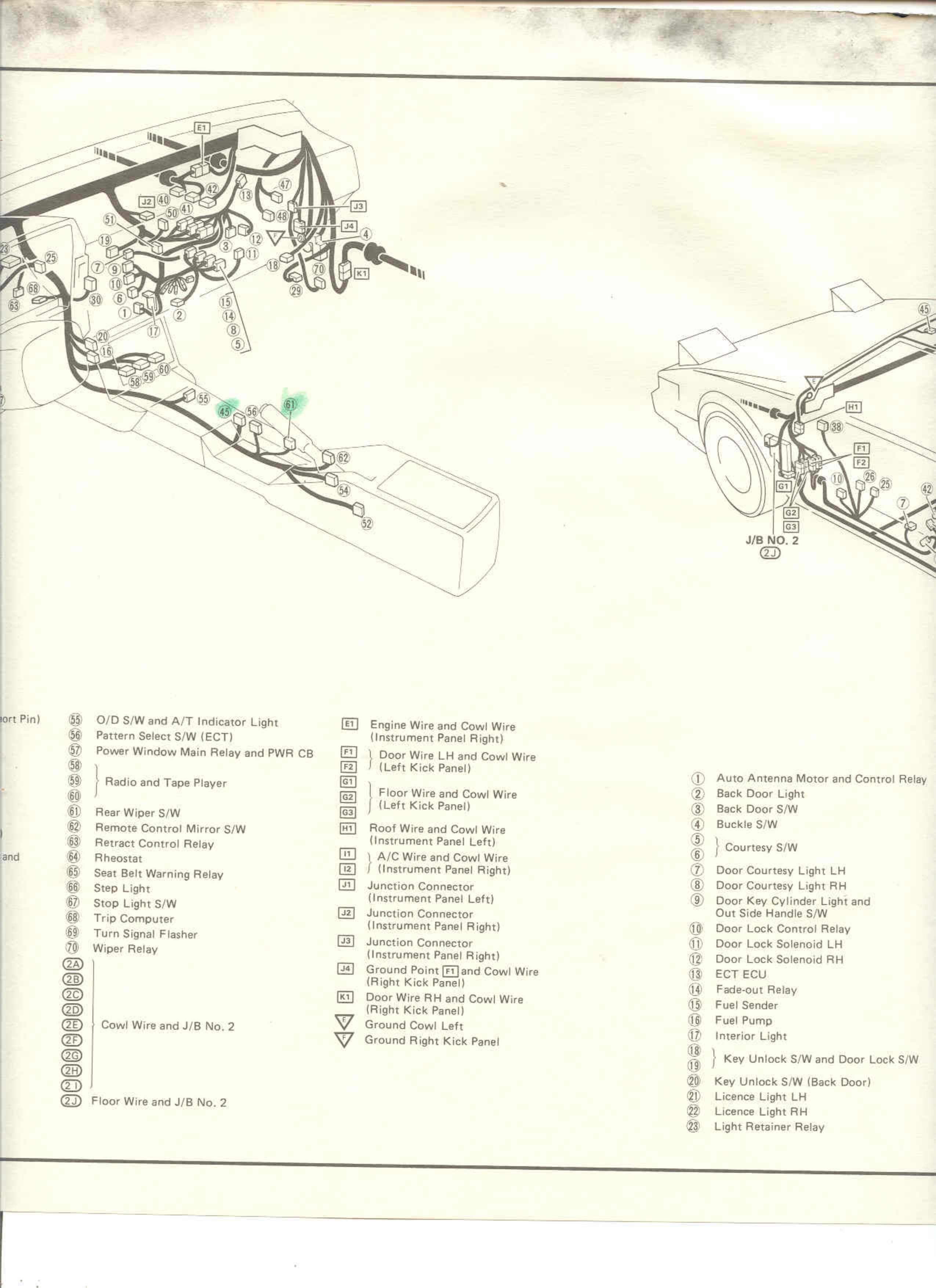

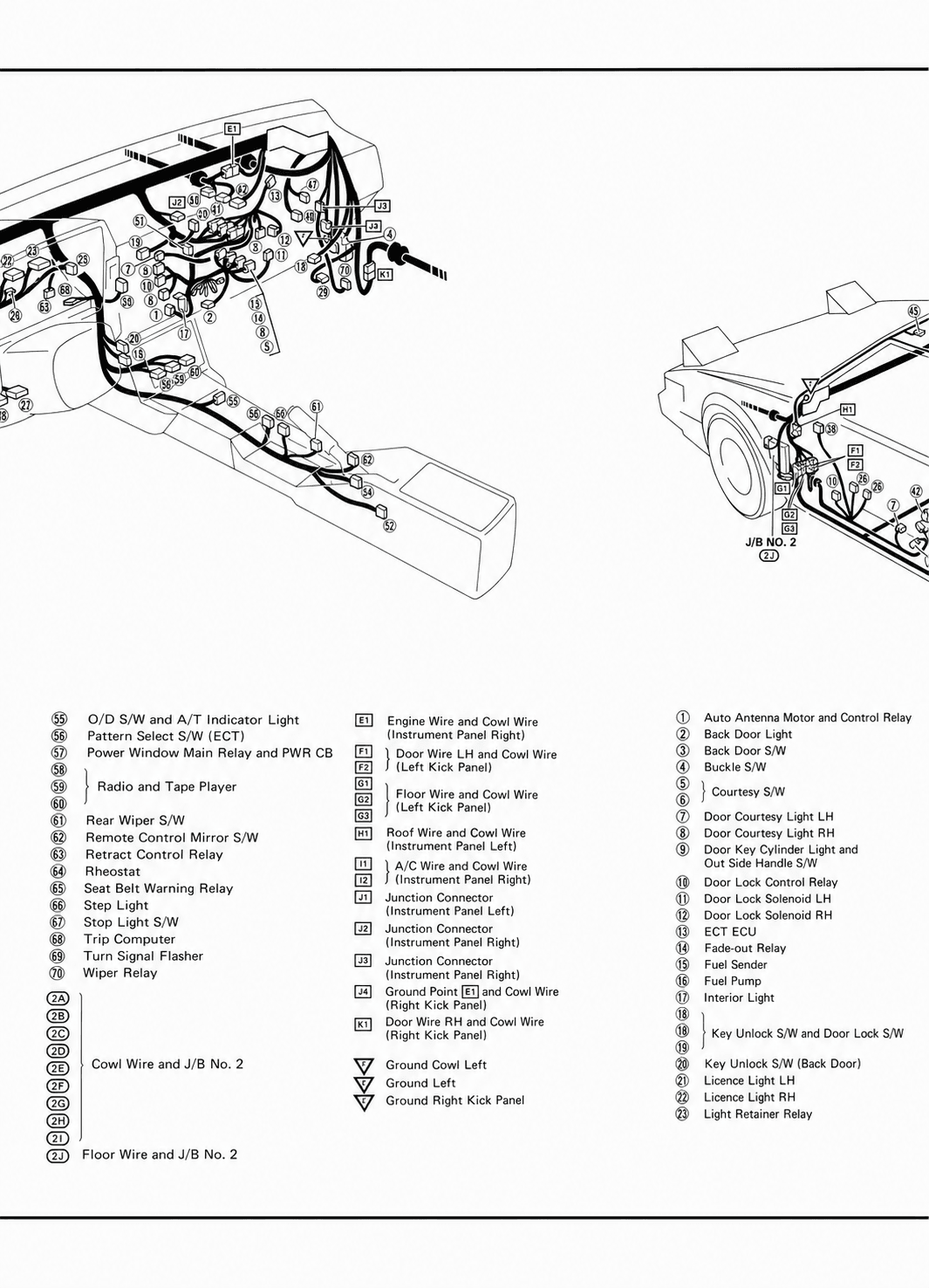

55 O/D S/W and A/T Indicator Light
56 Pattern Select S/W (ECT)
57 Power Window Main Relay and PWR CB
58
59 Radio and Tape Player
60
61 Rear Wiper S/W
62 Remote Control Mirror S/W
63 Retract Control Relay
64 Rheostat
65 Seat Belt Warning Relay
66 Step Light
67 Stop Light S/W
68 Trip Computer
69 Turn Signal Flasher
70 Wiper Relay
J2A
J2B
J2C
J2D
J2E Cowl Wire and J/B No. 2
J2F
J2G
J2H
J2I
J2J Floor Wire and J/B No. 2
E1 Engine Wire and Cowl Wire (Instrument Panel Right)
F1 Door Wire LH and Cowl Wire (Left Kick Panel)
F2
G2 Floor Wire and Cowl Wire (Left Kick Panel)
G3
H1 Roof Wire and Cowl Wire (Instrument Panel Left)
I1 A/C Wire and Cowl Wire
I2 (Instrument Panel Right)
J1 Junction Connector (Instrument Panel Left)
J2 Junction Connector (Instrument Panel Right)
J3 Junction Connector (Instrument Panel Right)
K1 Ground Point E1 and Cowl Wire (Right Kick Panel)
K2 Door Wire RH and Cowl Wire (Right Kick Panel)
∇ Ground Cowl Left
∇ Ground Right Kick Panel
1 Auto Antenna Motor and Control Relay
2 Back Door Light
3 Back Door S/W
4 Buckle S/W
5 Courtesy S/W
6
7 Door Courtesy Light LH
8 Door Courtesy Light RH
9 Door Key Cylinder Light and Out Side Handle S/W
10 Door Lock Control Relay
11 Door Lock Solenoid LH
12 Door Lock Solenoid RH
13 ECT ECU
14 Fade-out Relay
15 Fuel Sender
16 Fuel Pump
17 Interior Light
18
19 Key Unlock S/W and Door Lock S/W
19 Key Unlock S/W (Back Door)
20
21 Licence Light LH
22 Licence Light RH
23 Light Retainer Relay
J/B NO. 2
J2J
