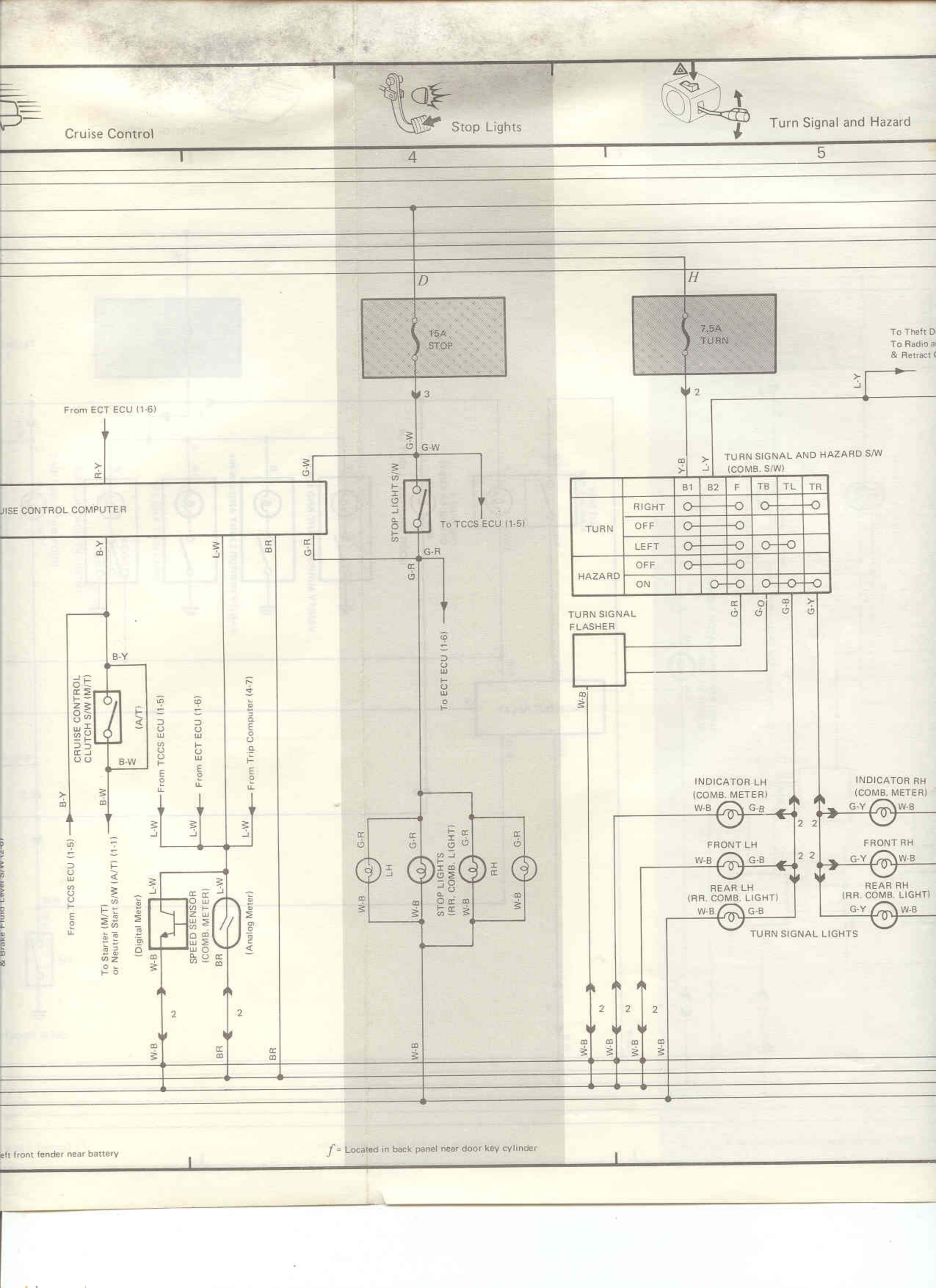

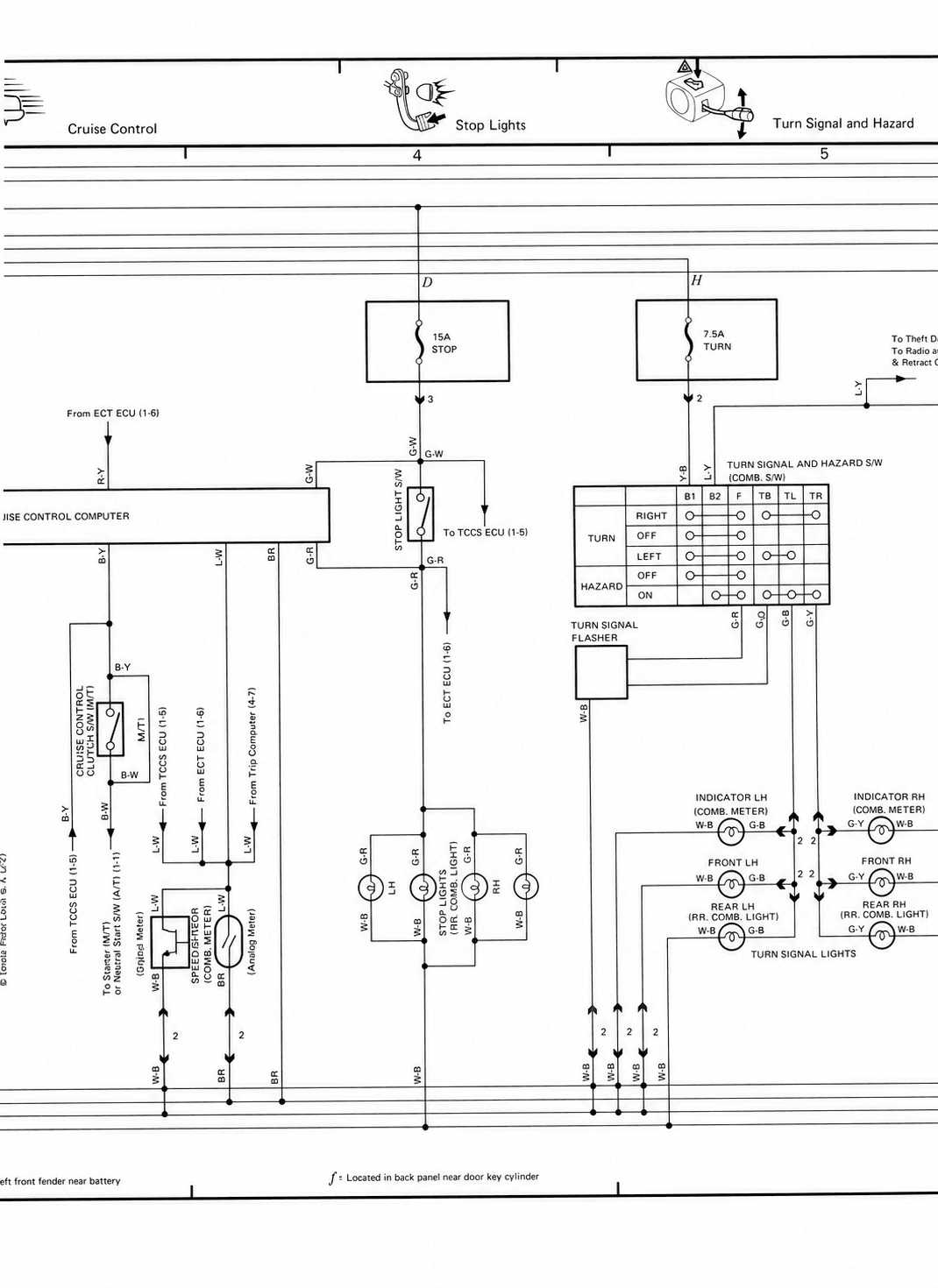

Cruise Control Stop Lights Turn Signal and Hazard 4 5 D H 19A STOP 7.5A TURN To Theft D To Radio a & Retract t From ECT ECU (1-6) 3 2 G-W TURN SIGNAL AND HAZARD S/W (COMB. S/W) B-Y B-W B-Y B X-B L-Y B1 B2 F TB TL TR CRUISE CONTROL COMPUTER RIGHT STOP LIGHT S/W TURN OFF B-Y B-W B-R G-R To TCCS ECU (1-6) LEFT G-R G-R OFF HAZARD ON G-L G-L B X TURN SIGNAL FLASHER B-Y To ECT ECU (1-6) B W-B INDICATOR LH INDICATOR RH (COMB. METER) (COMB. METER) W-B G-B G-W G-W From TJB Computer (4-7) B-W G-W B-W CONVERSION TO MANUAL CONTROL B/T From TCCS ECU (1-6) G-W 2 2 B-W From ECT ECU (1-6) W-B FRONT LH FRONT RH G-B 2 2 G-L G-R G-L G-R STOP LIGHT REAR LH REAR RH B-W BK STOP LIGHT FILTER (RR. COMB. LIGHT) (RR. COMB. LIGHT) W-B G-B B-W G-Y W-B BK B-W W-B BK TURN SIGNAL LIGHTS From BATT (1) To Starter BATT (1) Capacitor 2 2 2 2 2 Opening Release W-B BR BR W-B W-B W-B W-B eft front fender near battery f = Located in back panel near door key cylinder
