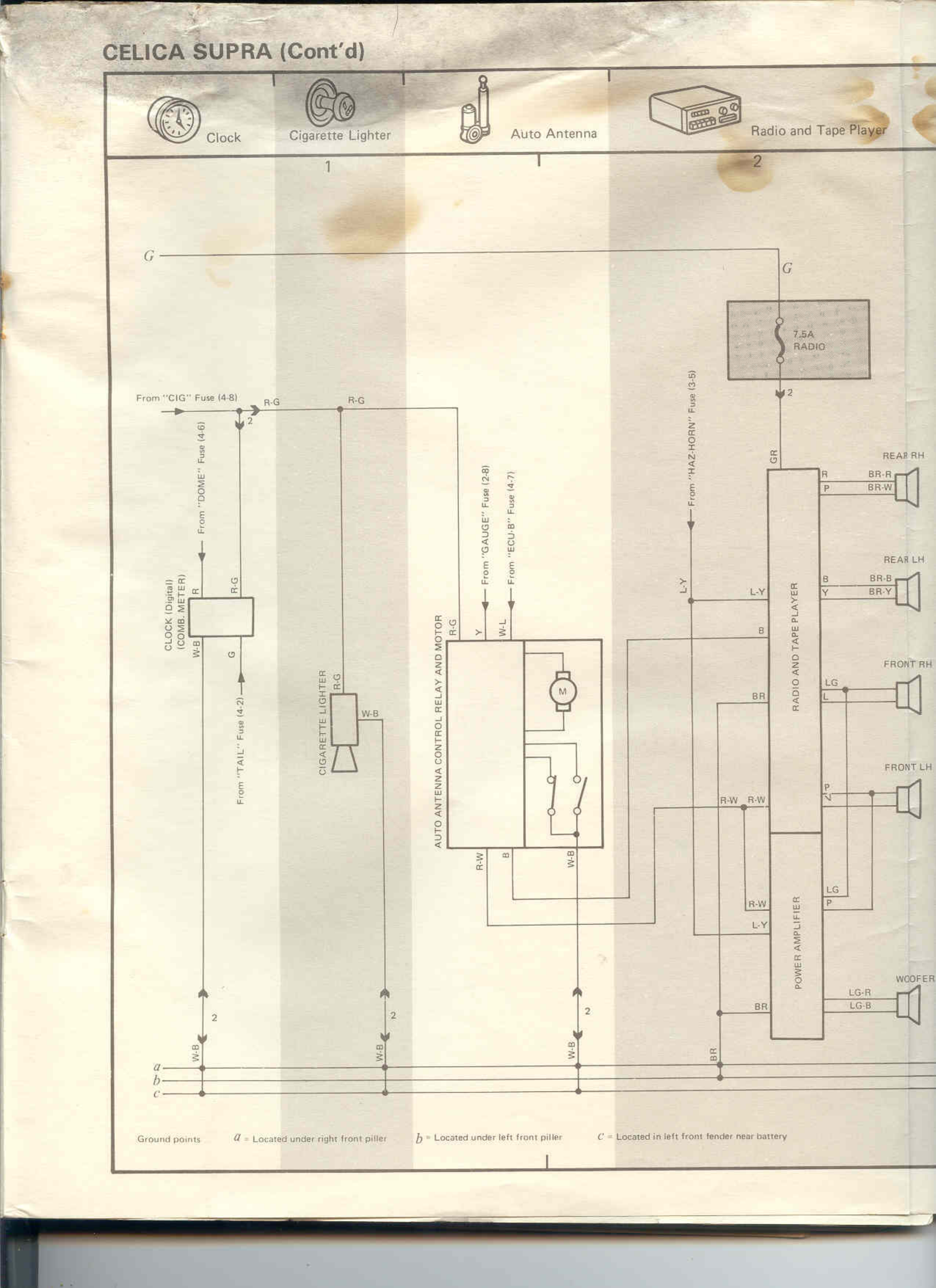

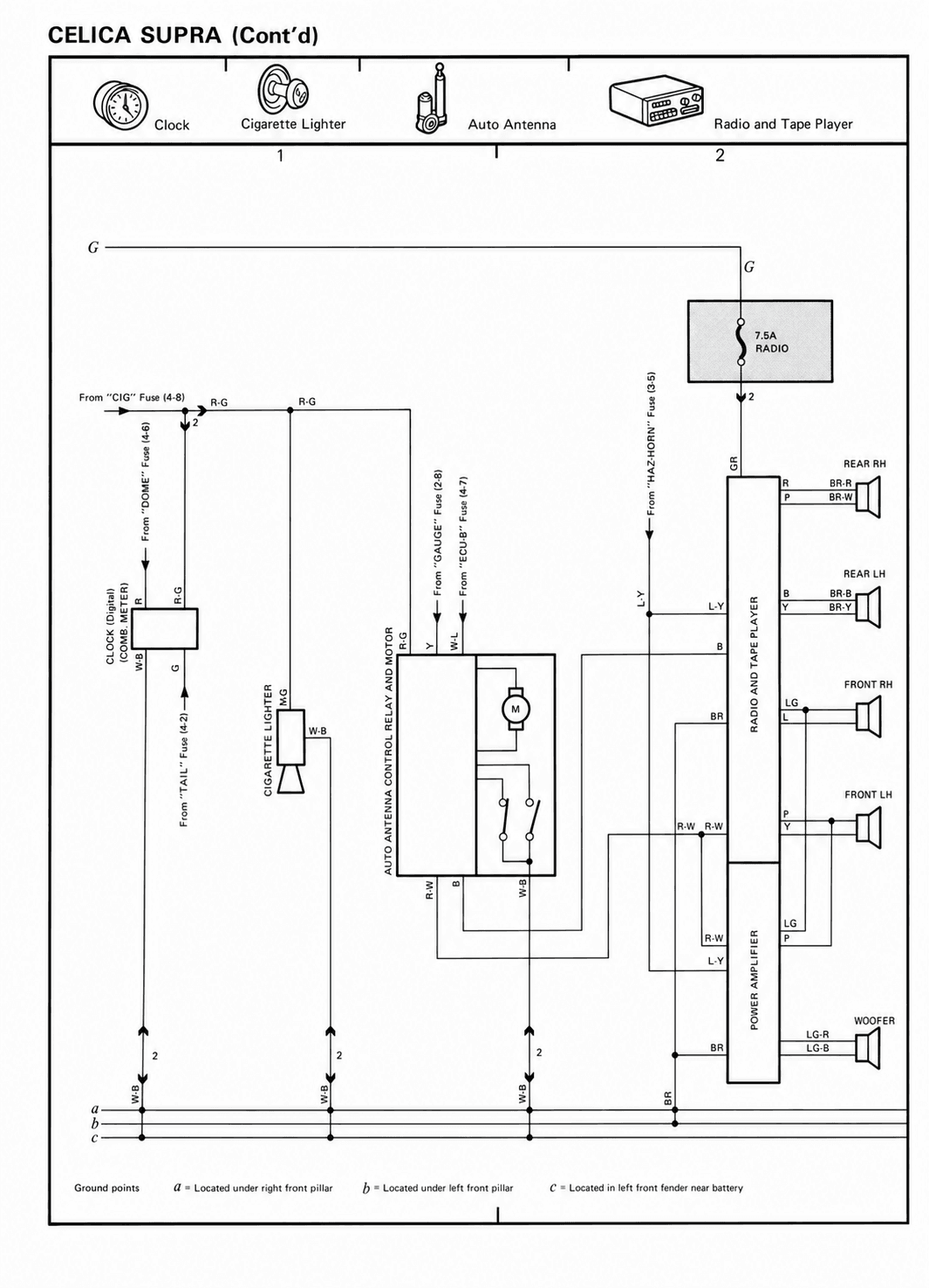

CELICA SUPRA (Cont'd)
Clock
Cigarette Lighter
Auto Antenna
Radio and Tape Player
1
1
2
G
G
TAPE
RADIO
From "CIG" Fuse (4.8)
From "ECU-B" Fuse (3.5)
R-G
R-G
REAR RH
BR-R
BR-W
From "GAUGE" Fuse (2.5)
From "ECU-B" Fuse (4.1)
From "IG2 HORN" Fuse (3.5)
REAR LH
BR-B
BR-Y
CLOCK (Digital)
BAG (Display)
R-B
R-B
R-G
AUTO ANTENNA CONTROL RELAY AND MOTOR
L-Y
L-Y
RADIO AND TAPE PLAYER
G
B
CIGARETTE LIGHTER
W-B
From "TAIL" Fuse (4.27)
BR
FRONT RH
LG
R-W
R-W
FRONT LH
G
R-W
POWER AMPLIFIER
R-W
B
HW
BR
L-Y
LG
BR
WOOFER
LG-R
LG-B
2
2
2
a
b
c
Ground points
a = Located under right front pillar
b = Located under left front pillar
c = Located in left front fender near battery
