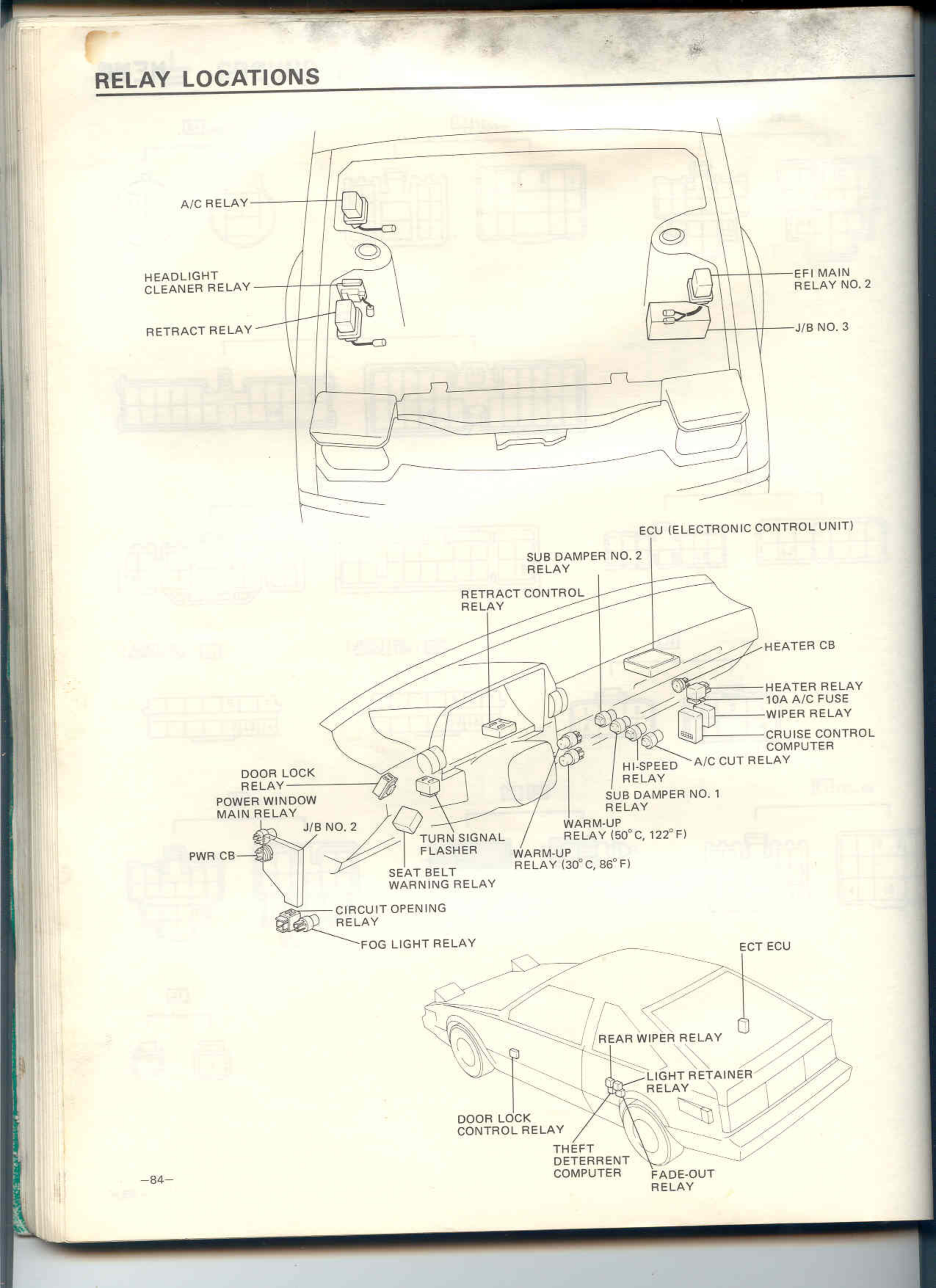

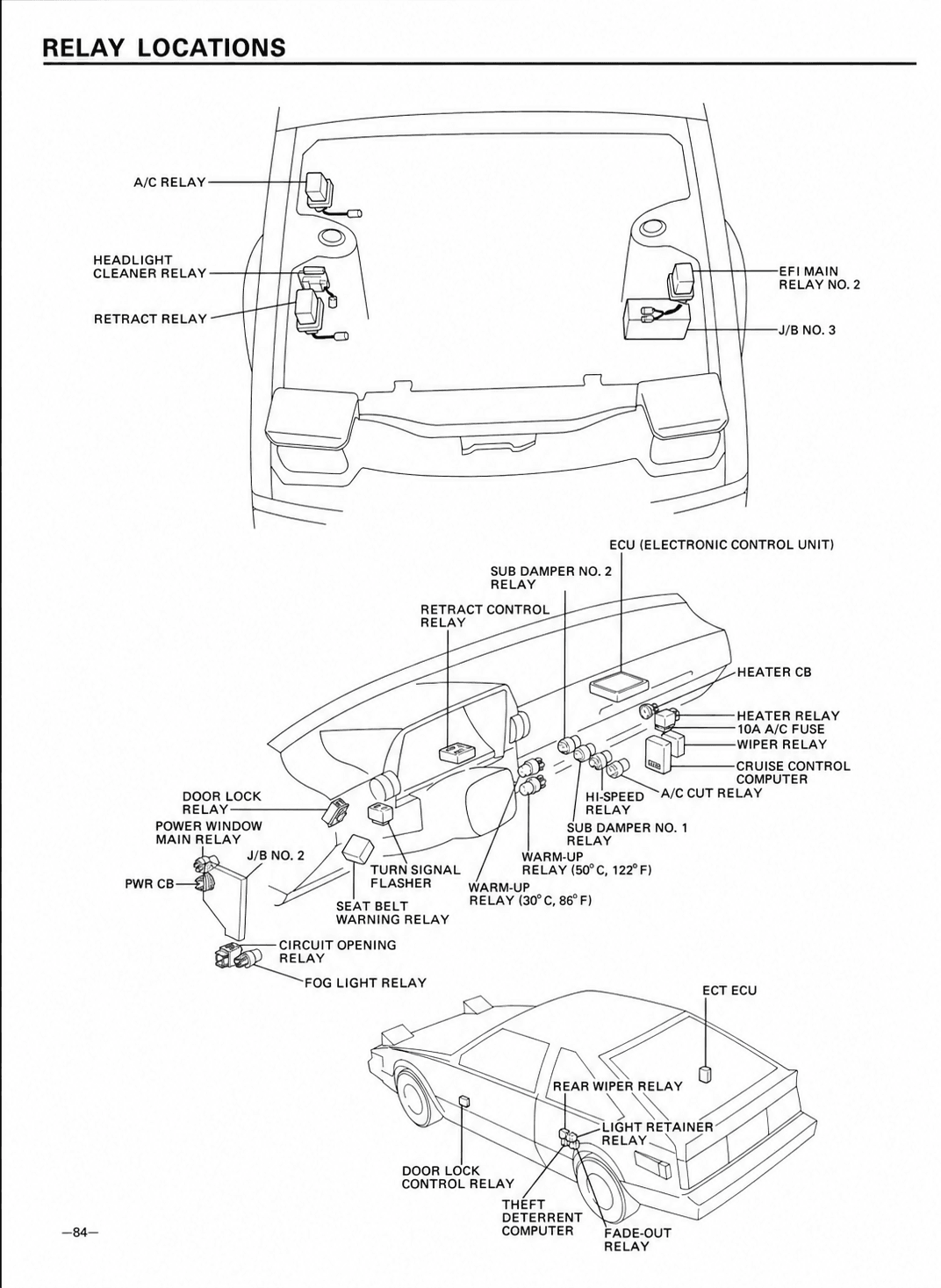

RELAY LOCATIONS
A/C RELAY
HEADLIGHT
CLEANER RELAY
RETRACT RELAY
EFI MAIN
RELAY NO. 2
J/B NO. 3
ECU (ELECTRONIC CONTROL UNIT)
SUB DAMPER NO. 2
RELAY
RETRACT CONTROL
RELAY
HEATER CB
HEATER RELAY
10A A/C FUSE
WIPER RELAY
CRUISE CONTROL
COMPUTER
HI-SPEED
RELAY
A/C CUT RELAY
SUB DAMPER NO. 1
RELAY
WARM-UP
RELAY (50°C, 122°F)
DOOR LOCK
RELAY
POWER WINDOW
MAIN RELAY
J/B NO. 2
PWR CB
TURN SIGNAL
FLASHER
WARM-UP
RELAY (30°C, 86°F)
SEAT BELT
WARNING RELAY
CIRCUIT OPENING
RELAY
FOG LIGHT RELAY
ECT ECU
REAR WIPER RELAY
LIGHT RETAINER
RELAY
DOOR LOCK
CONTROL RELAY
THEFT
DETERRENT
COMPUTER
FADE-OUT
RELAY
-84-
